Variable Induction Control Solenoid: Testing and Inspection

Power Valve Solenoid Test:

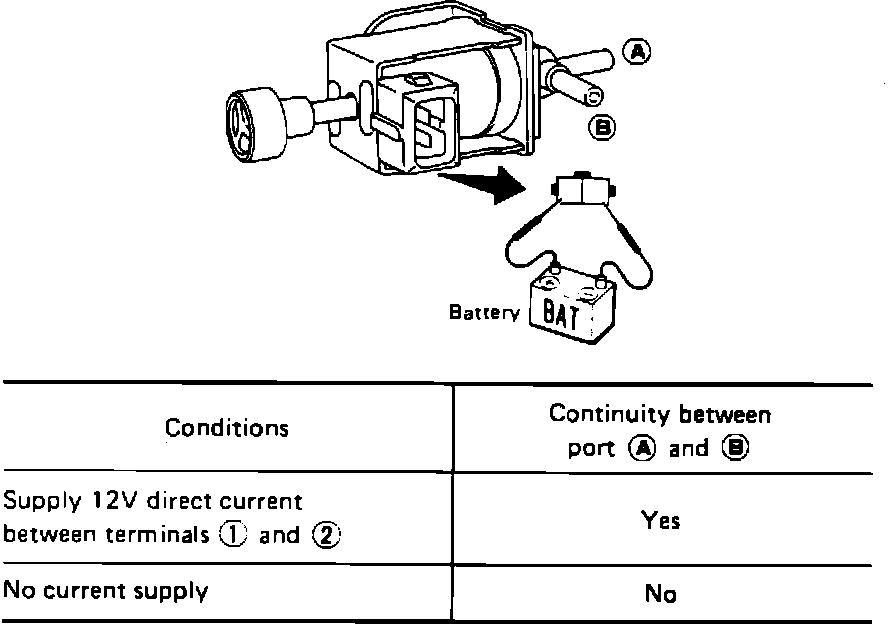

Apply voltage to the solenoid terminals as shown above and check air passages for continuity. Replace solenoid if it fails test.

WARNING: Reversing polarity will damage the solenoid.
