Fuel Pump: Testing and Inspection

1. Remove upper and lower portions of rear seat.
2. Remove round fuel pump access panel.

Fuel Pump Test:

3. Disconnect the fuel pump connector.

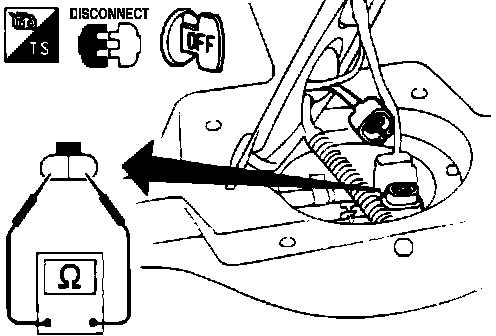

4. Using an ohm meter, check the resistance between the terminals as shown.
Resistance should be approximately 0.7 ohms.
Replace the pump if it fails the above test.
