Auxiliary Air Control (AAC) Valve Circuit

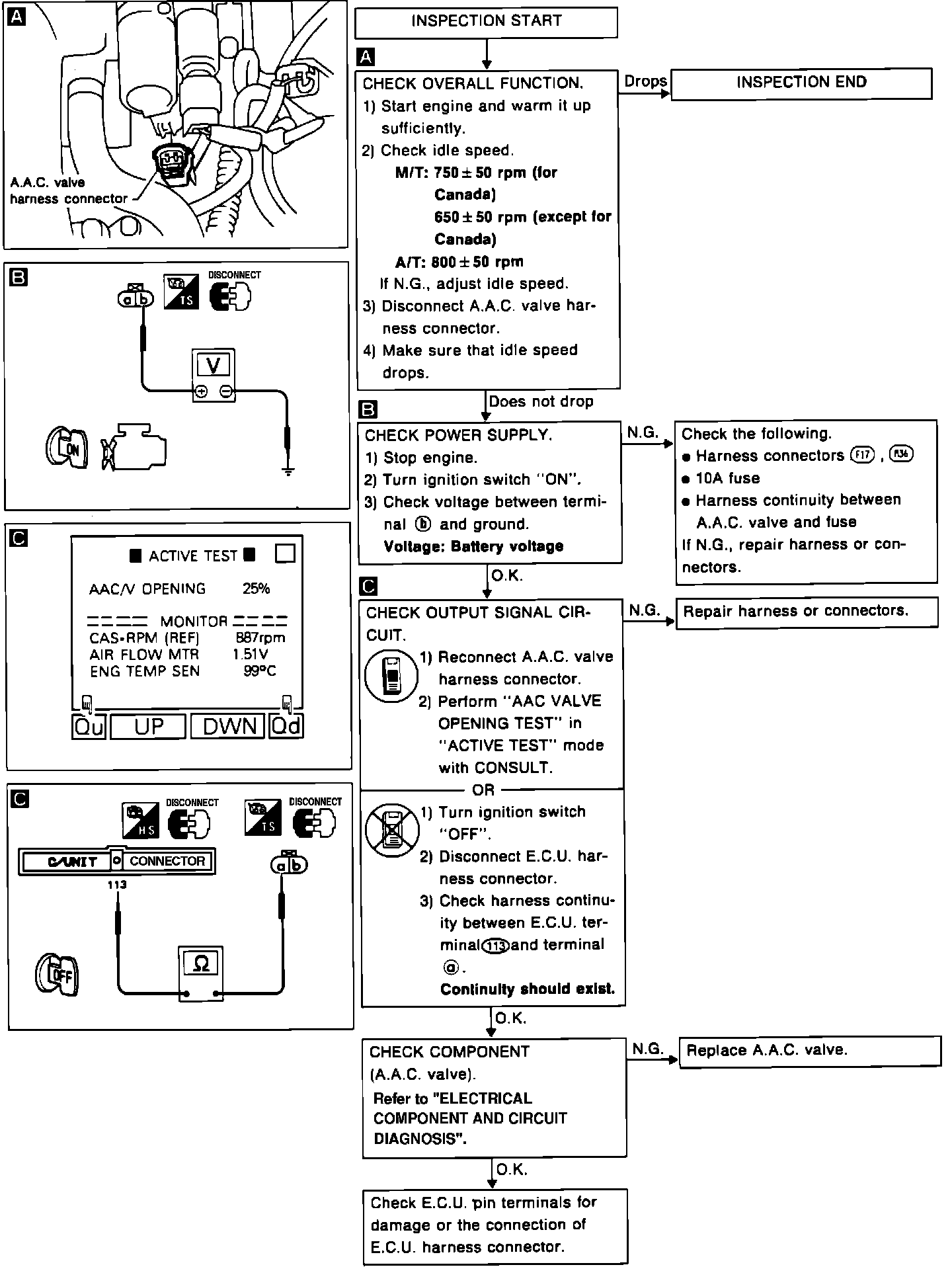

AAC Valve Circuit Diagnosis:





CIRCUIT TEST IMAGE

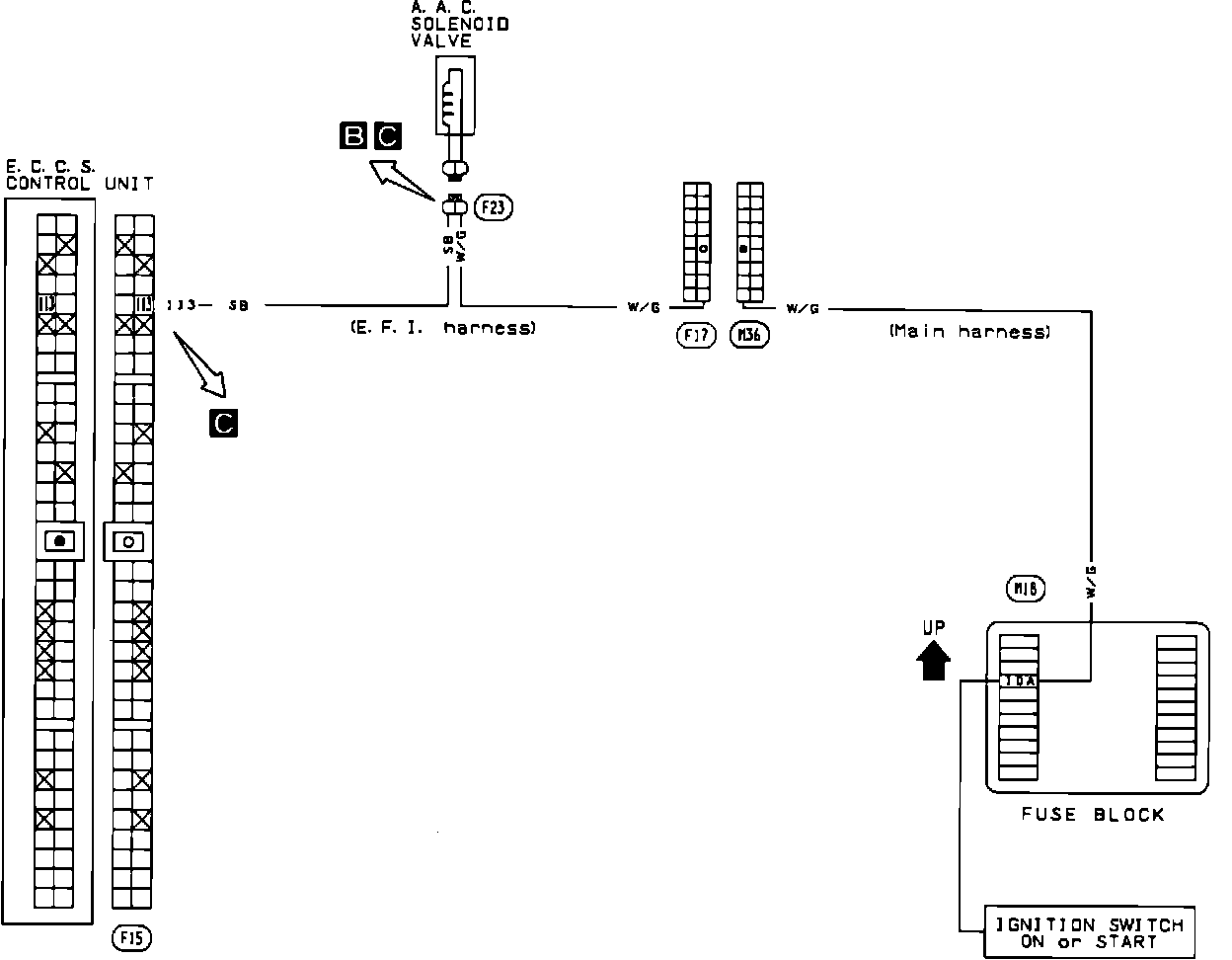

AAC Valve Circuit:





CIRCUIT DIAGRAM IMAGE

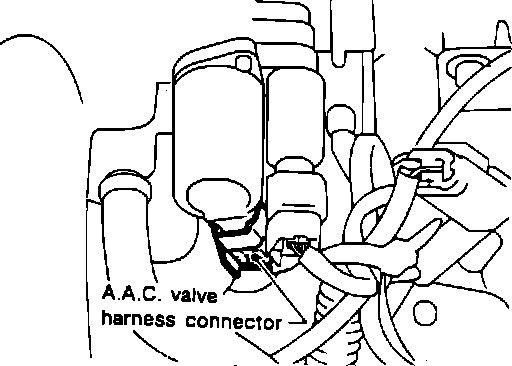

Harness Connector:





CONNECTOR LOCATION IMAGE
