Home >> Nissan-Datsun >> 1991 >> NX L4-1597cc 1.6L DOHC MFI (GA16DE) >> Repair and Diagnosis >> Locations >> Harness Locations >> Door Harness >> 4-Door Sedan >> Front

Front

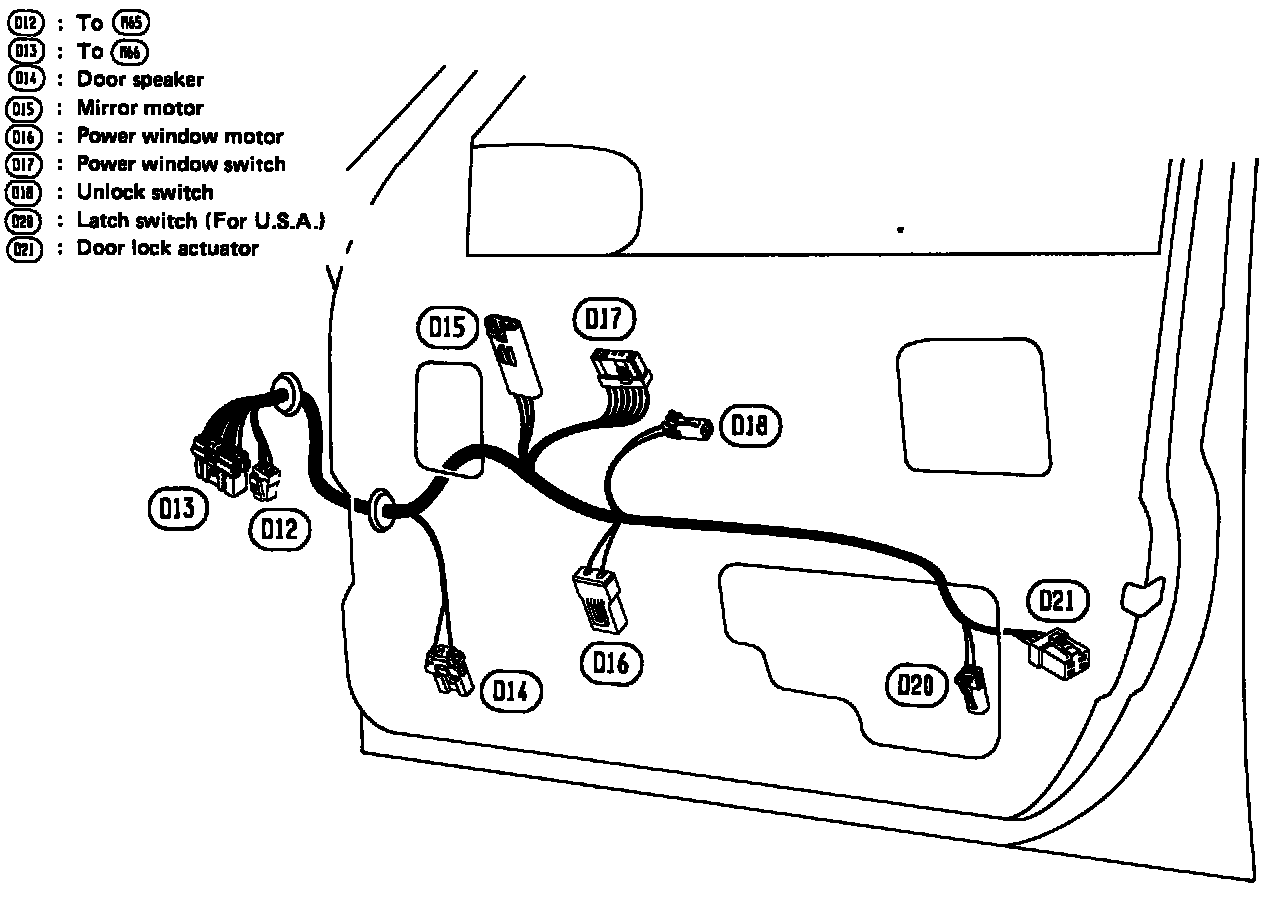

L.H. side:

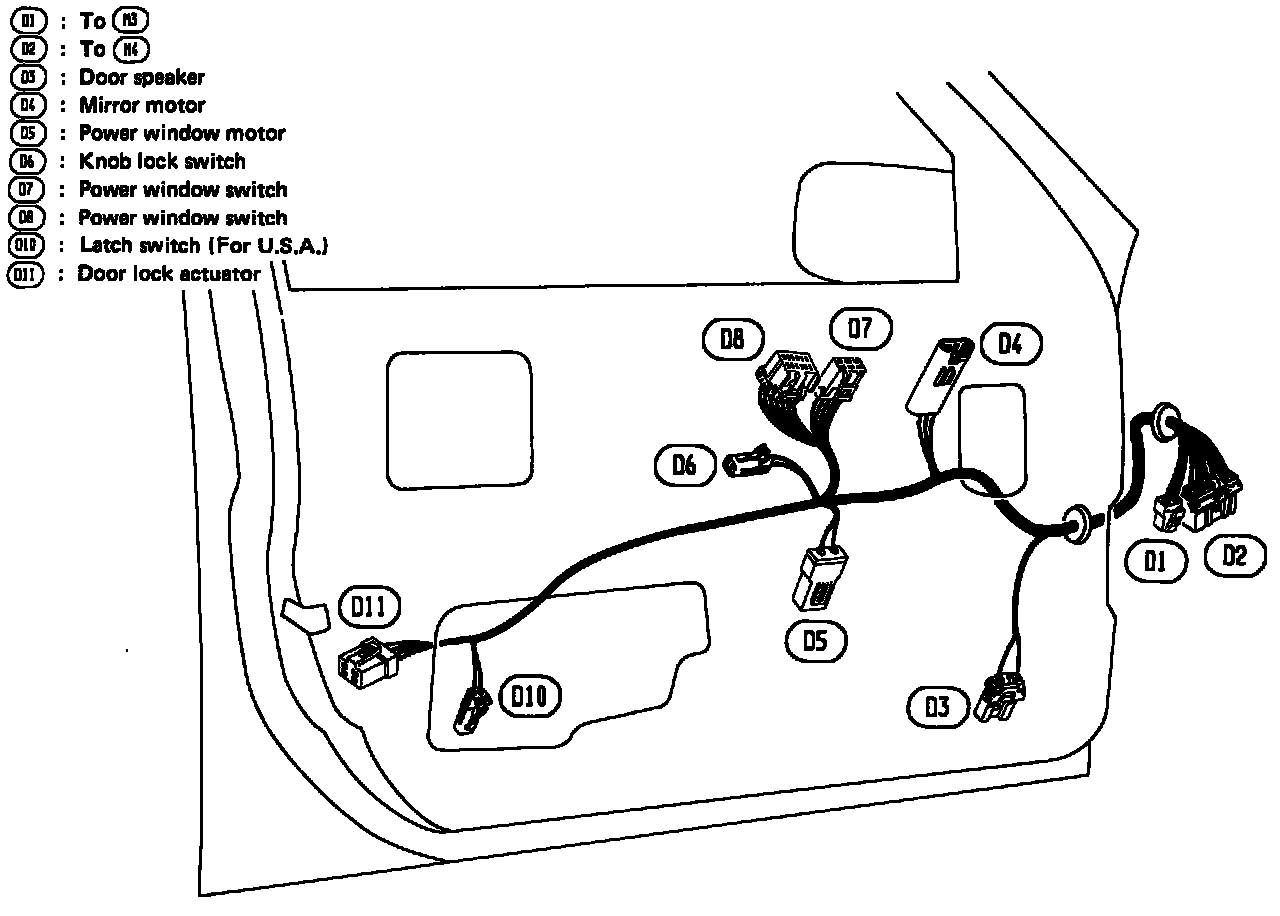

R.H. side:
