Headlamp Switch: Service and Repair

1. Disable airbag system as described under MAINTENANCE PROCEDURES/AIRBAG ARMING & DISARMING.
2. Remove steering column covers.

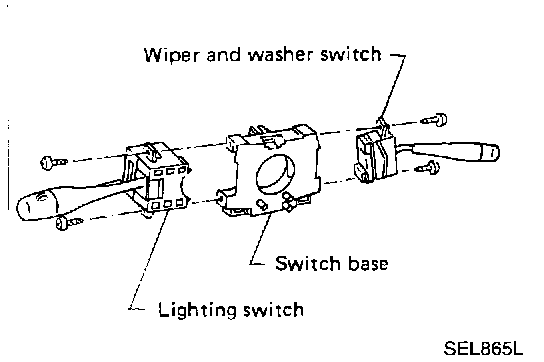

Combination Switch/Replacement:

- Each switch can be replaced without removing combination switch base.
3. Disconnect light switch electrical connections then remove switch retaining screws and the light switch. It is not necessary to remove combination switch base to replace light switch.
4. Rearm airbag as described under MAINTENANCE PROCEDURES/AIRBAG ARMING & DISARMING.
