Initial Inspection and Diagnostic Overview

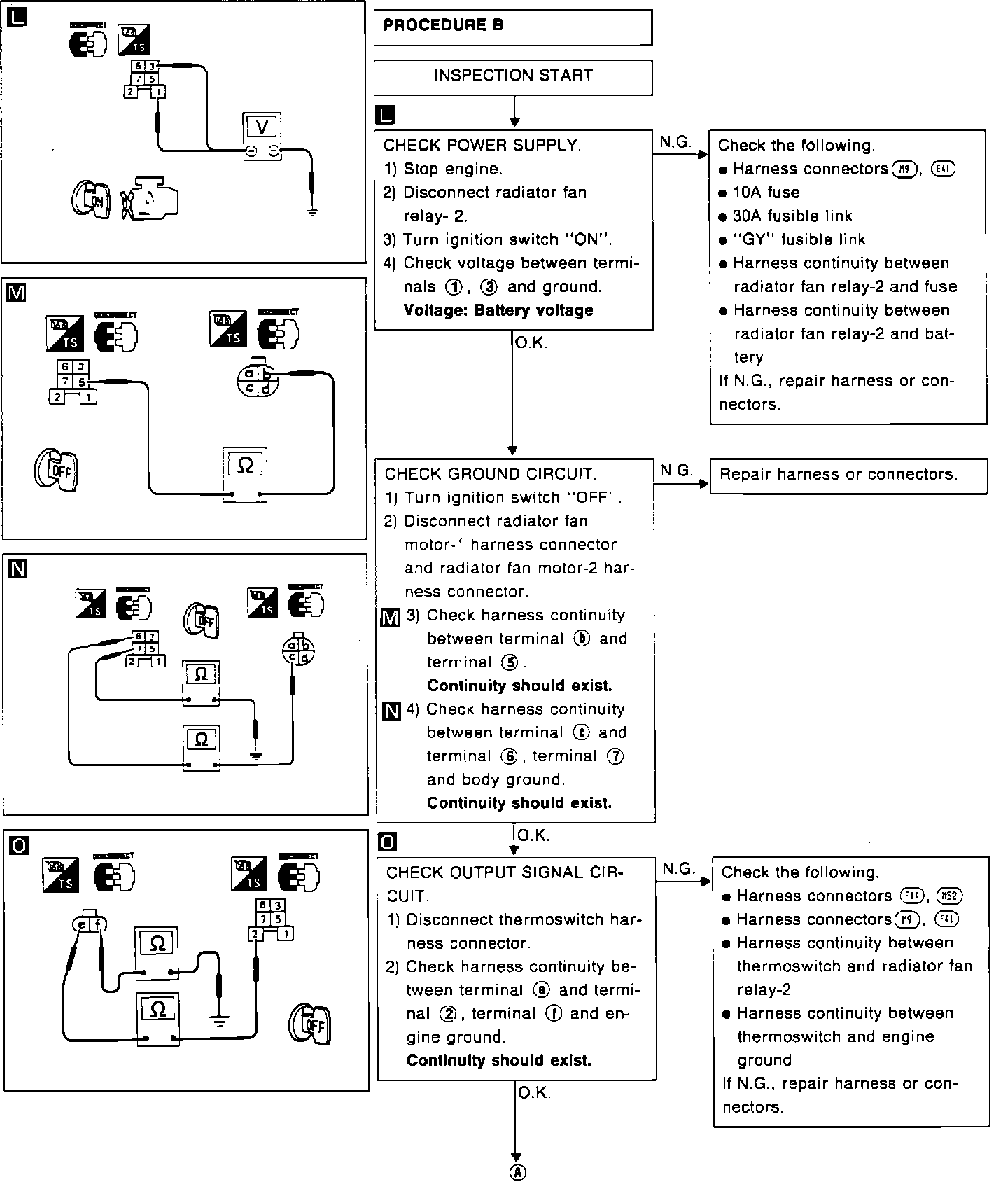

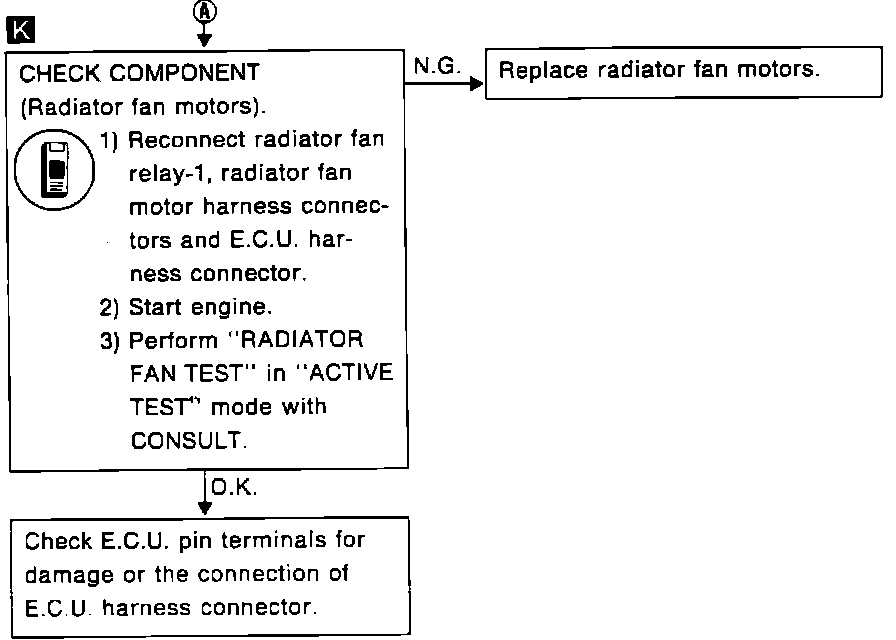

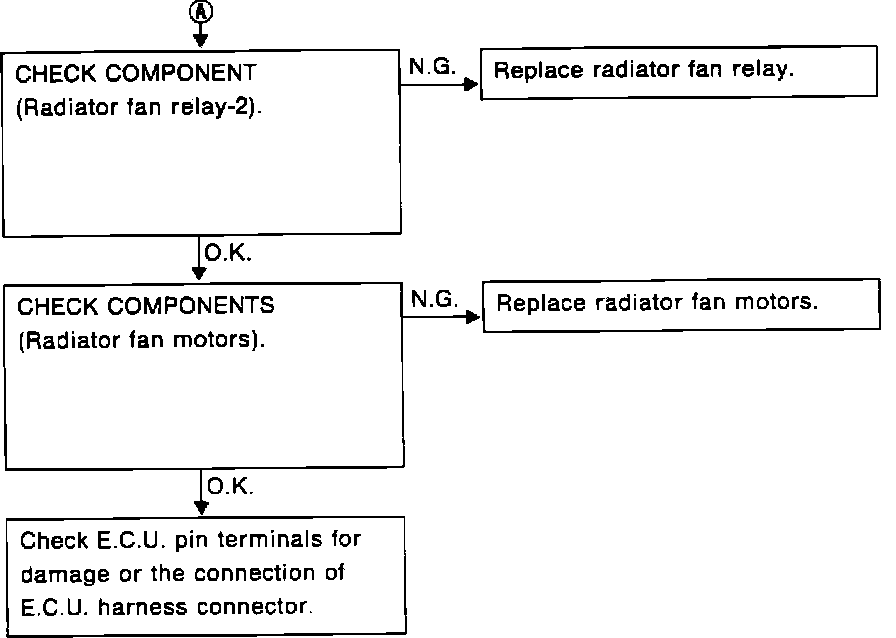

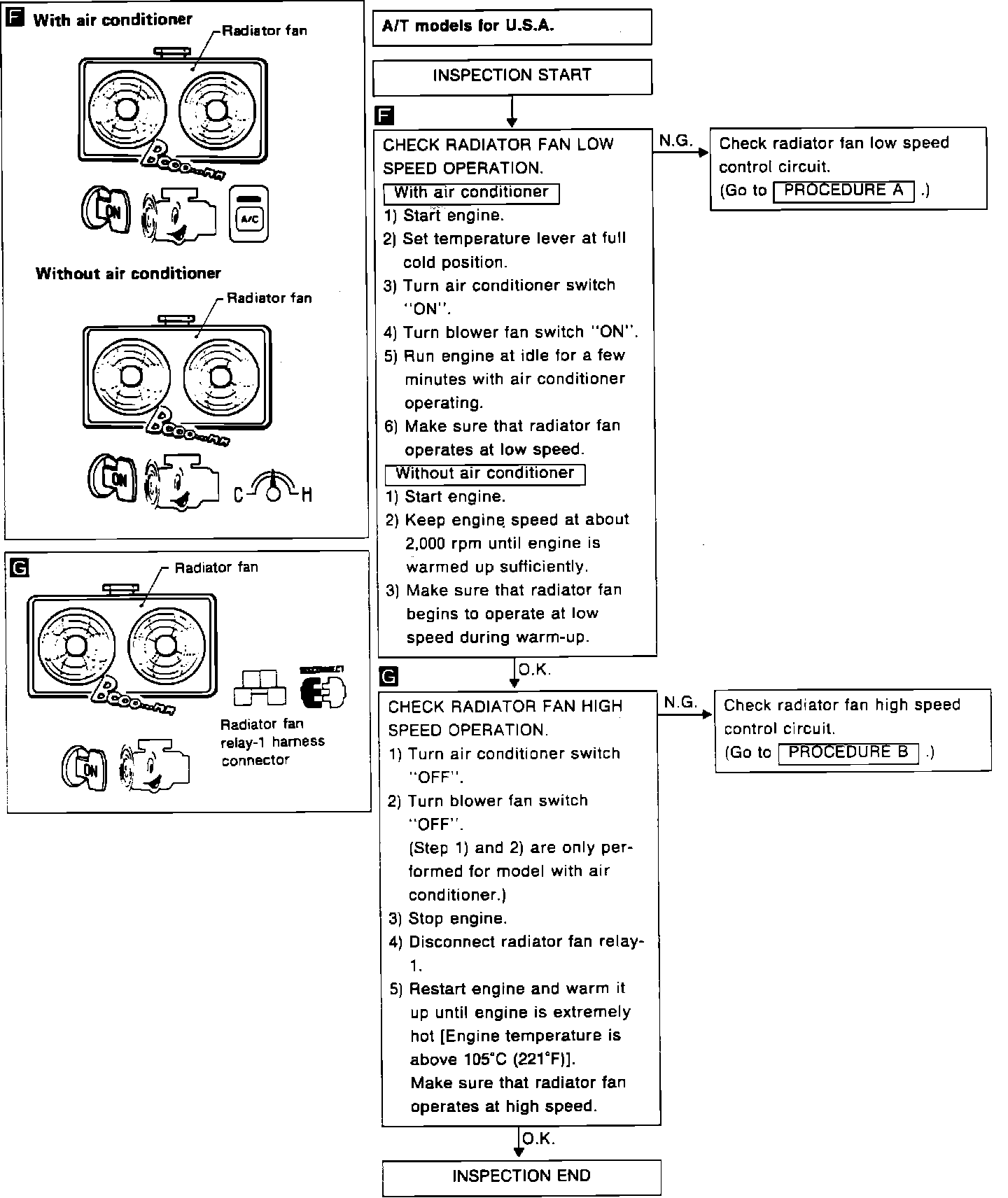

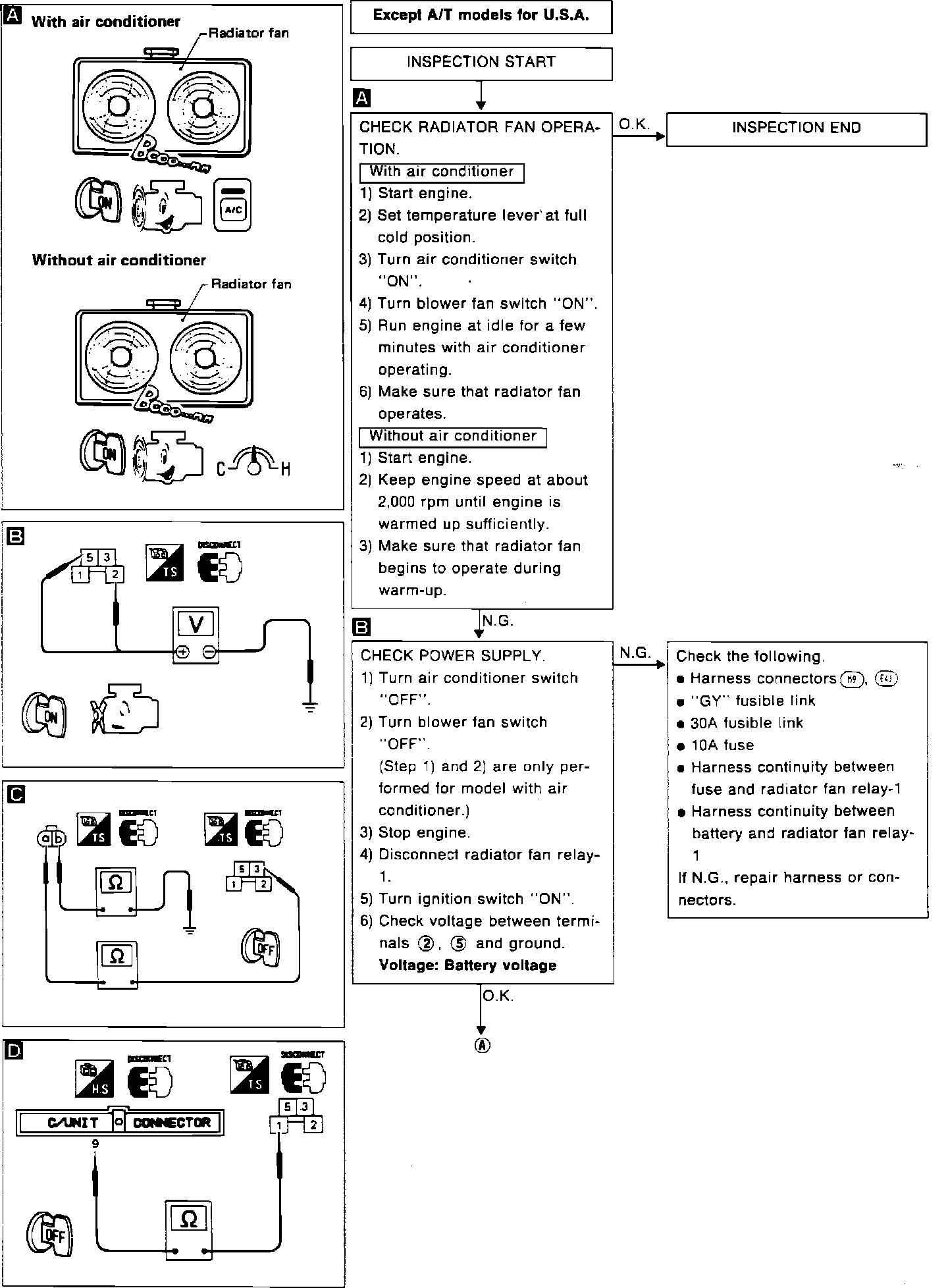

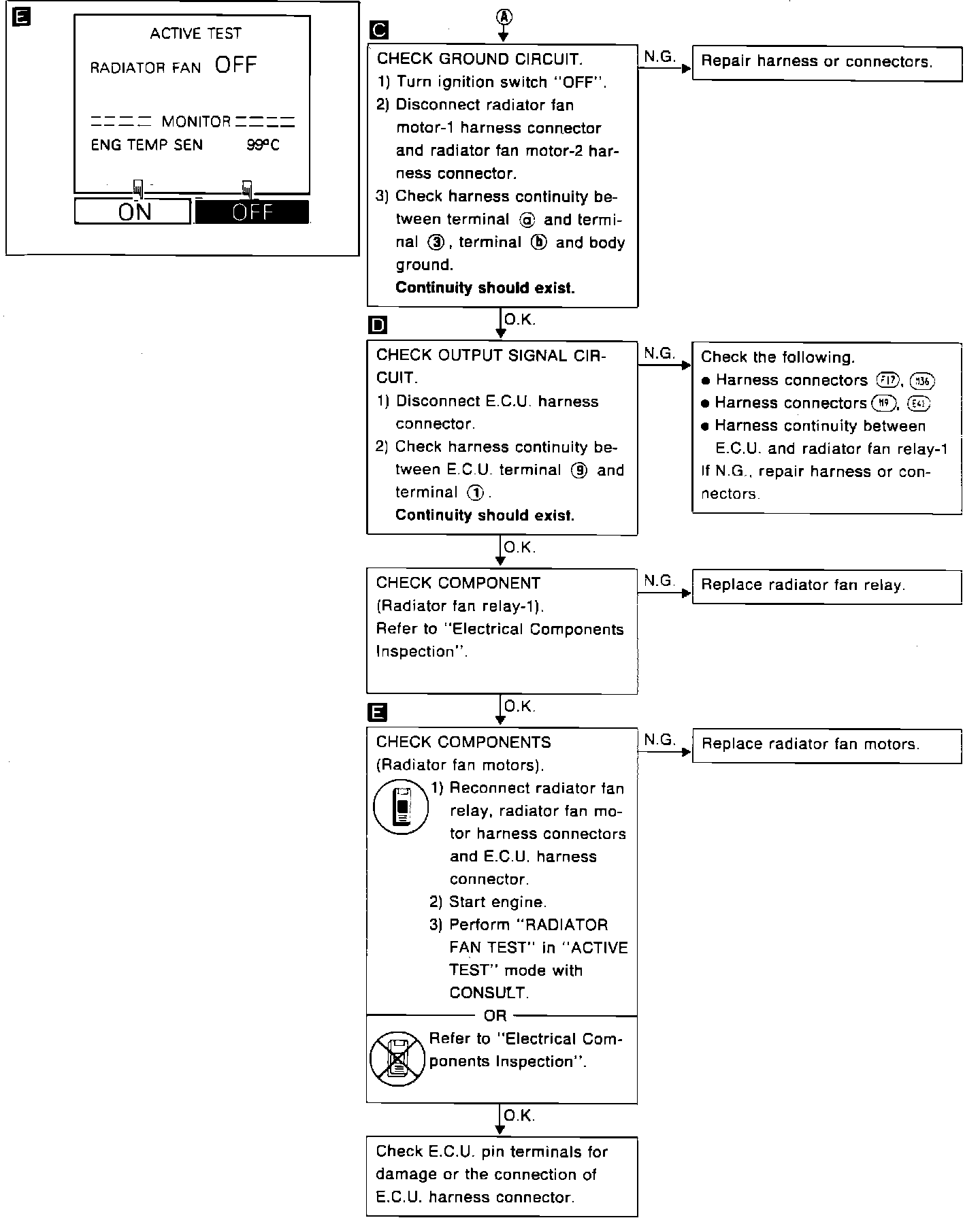

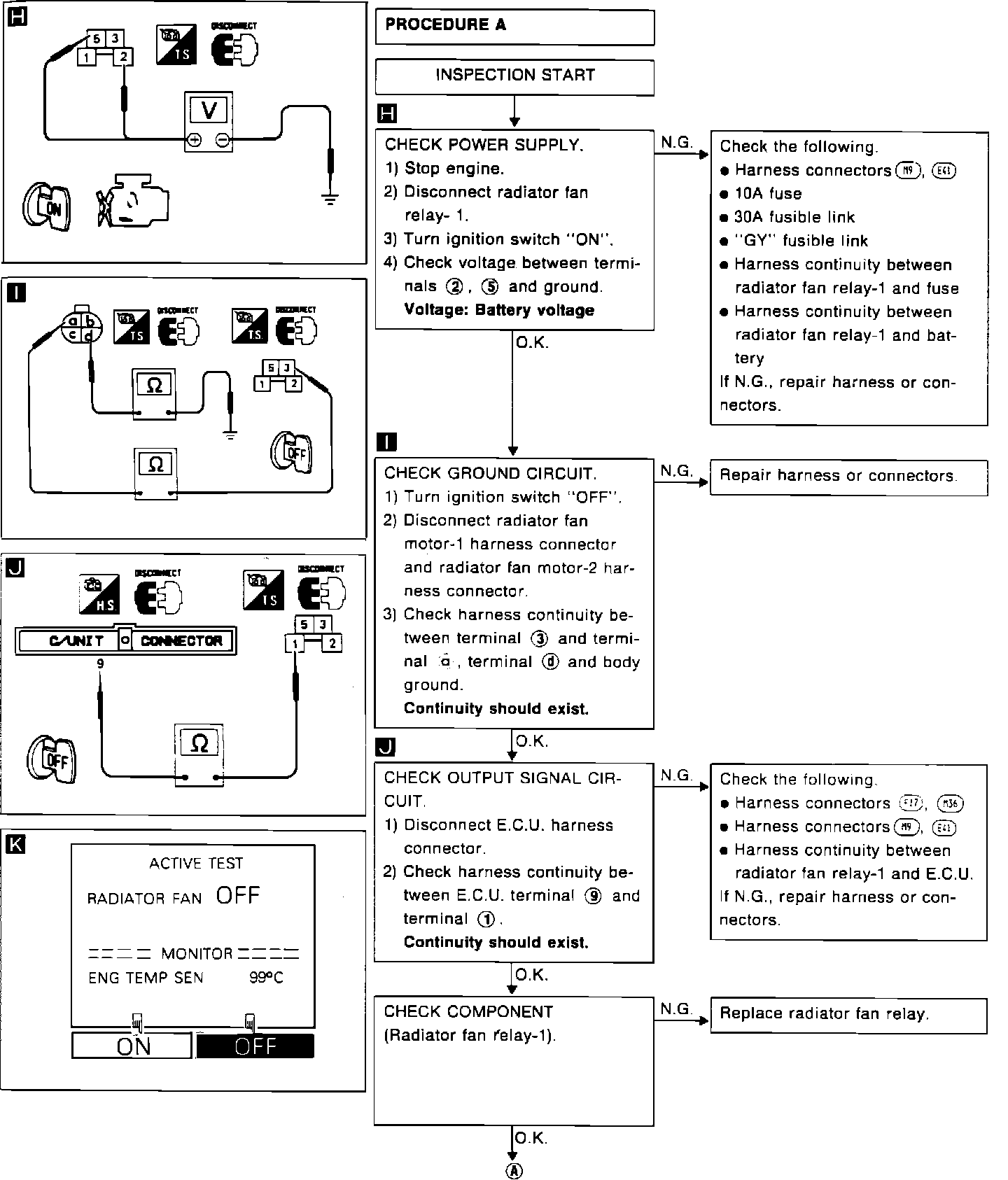

Fig. 14 Cooling Fan Diagnosis (Part 1 Of 7).:

Fig. 14 Cooling Fan Diagnosis (Part 2 Of 7).:

Fig. 14 Cooling Fan Diagnosis (Part 3 Of 7).:

Fig. 14 Cooling Fan Diagnosis (Part 4 Of 7).:

Fig. 14 Cooling Fan Diagnosis (Part 5 Of 7).:

Fig. 14 Cooling Fan Diagnosis (Part 6 Of 7).:

Fig. 14 Cooling Fan Diagnosis (Part 7 Of 7).:

Refer to SCHEMATIC DIAGRAMS/ELECTRICAL AND ELECTRONIC DIAGRAMS, for wiring diagrams and diagnosis charts Fig. 14 to diagnose the cooling fan system.
