Electrical and Electronic Diagrams, Cooling Fans
Electrical and Electronic Diagrams, Cooling Fans

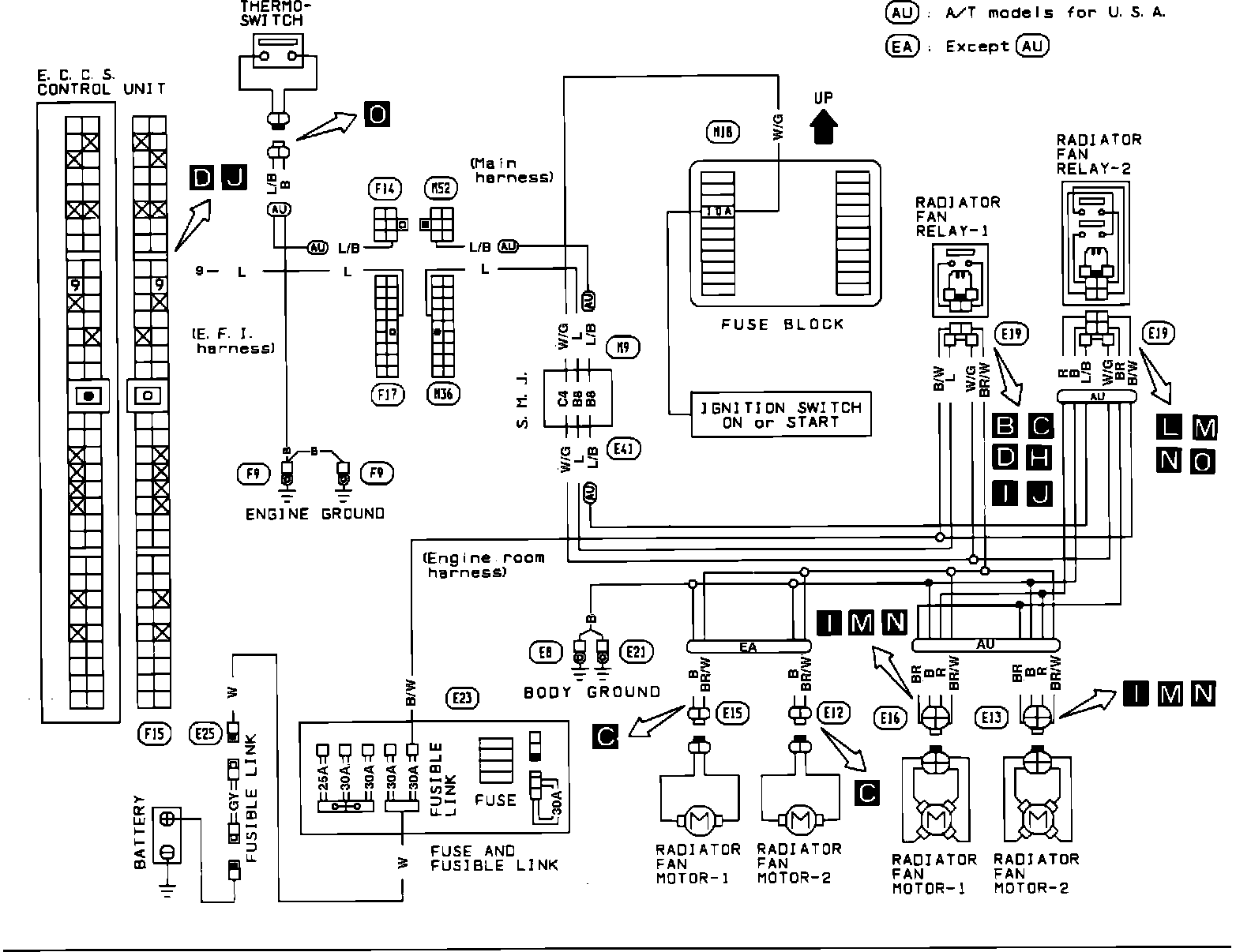

Fig. 5 Wiring Circuit. 1991-92 NX Coupe, NX 1600, NX 2000 & Sentra:
a��,|�,��,��,V4�,Cooling Fan (Engine), Engine Management (E.C.C.S.), Fuel Pump & Ignition System:
