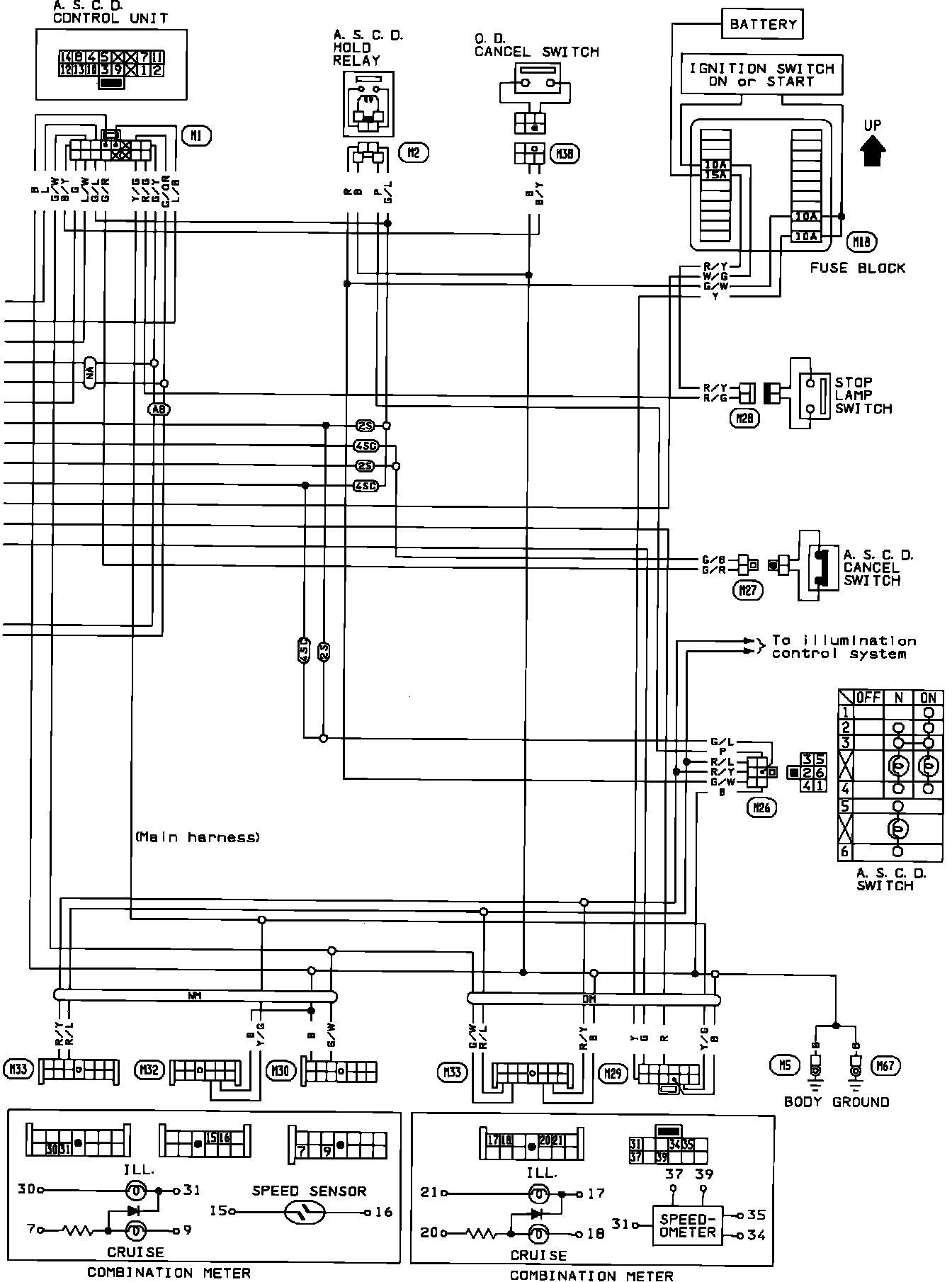

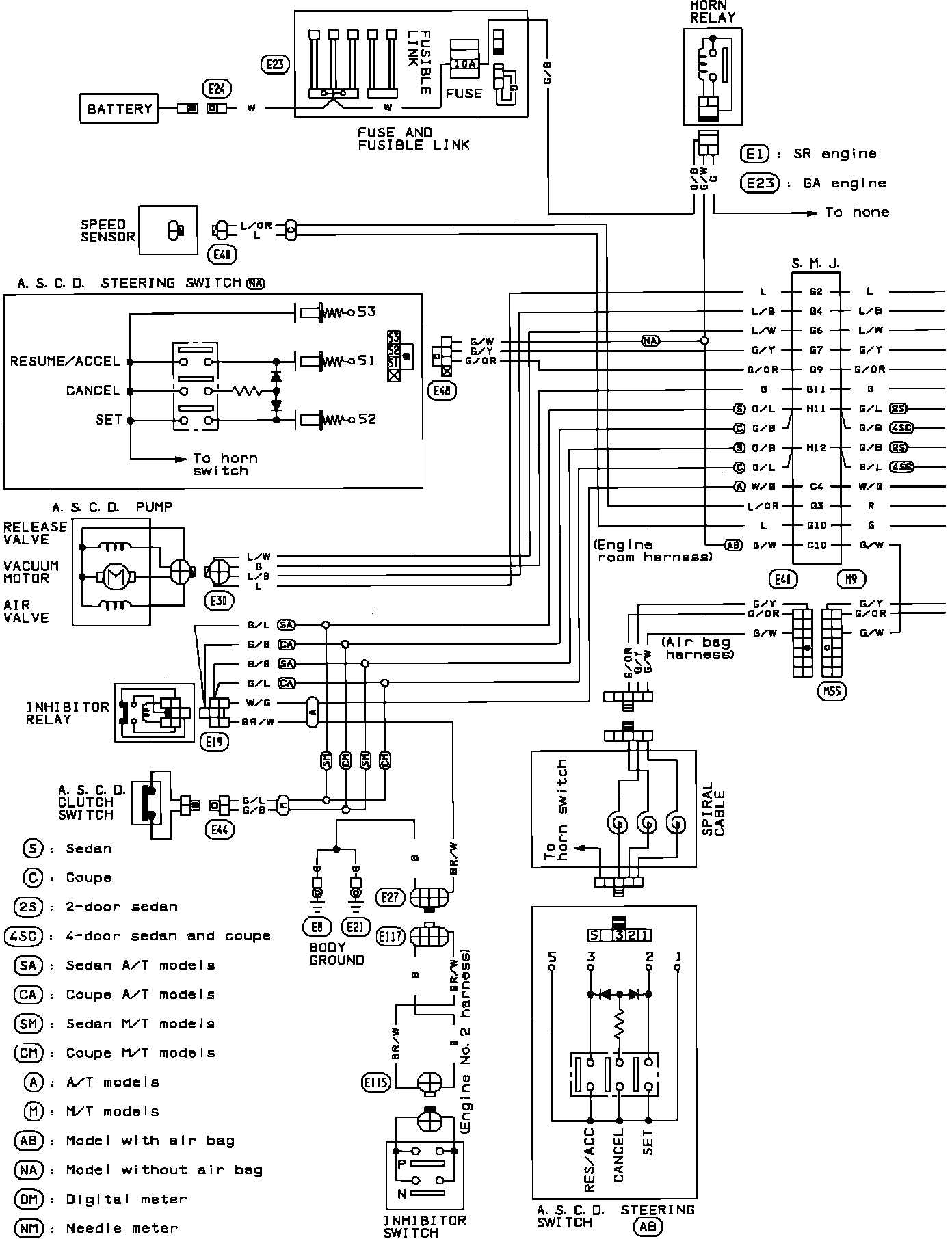

Automatic Speed Control Device Wiring Circuit

Cruise Control (A.S.C.D.):



Cruise Control (A.S.C.D.):
