DTC 32

The EGR temperature sensor (CA. models only) signaled the ECU that the EGR system was inoperative.

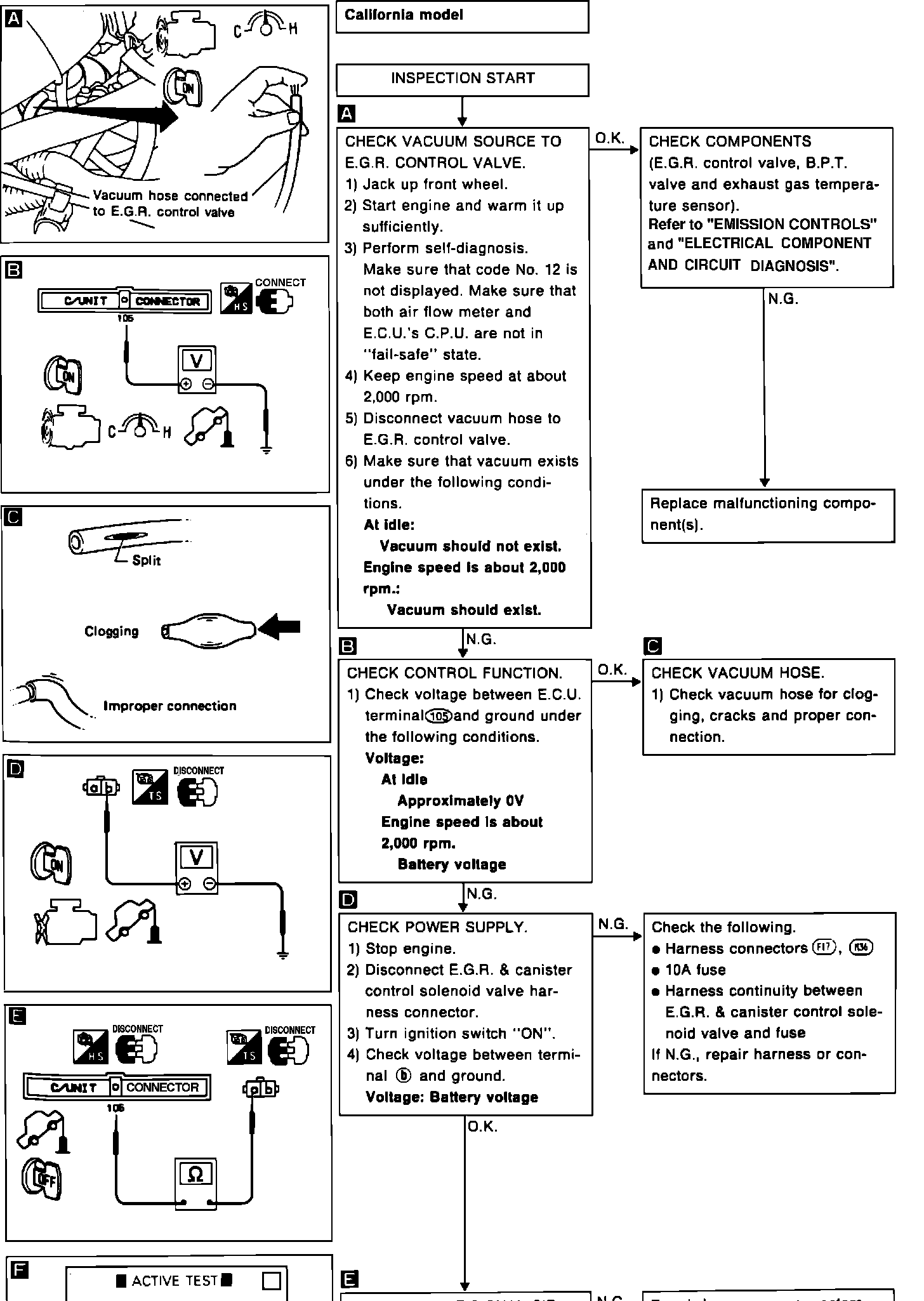

y/YCmYCode 32 EGR Circuit Diagnosis (California Only):

DIAGNOSTIC CHART IMAGE

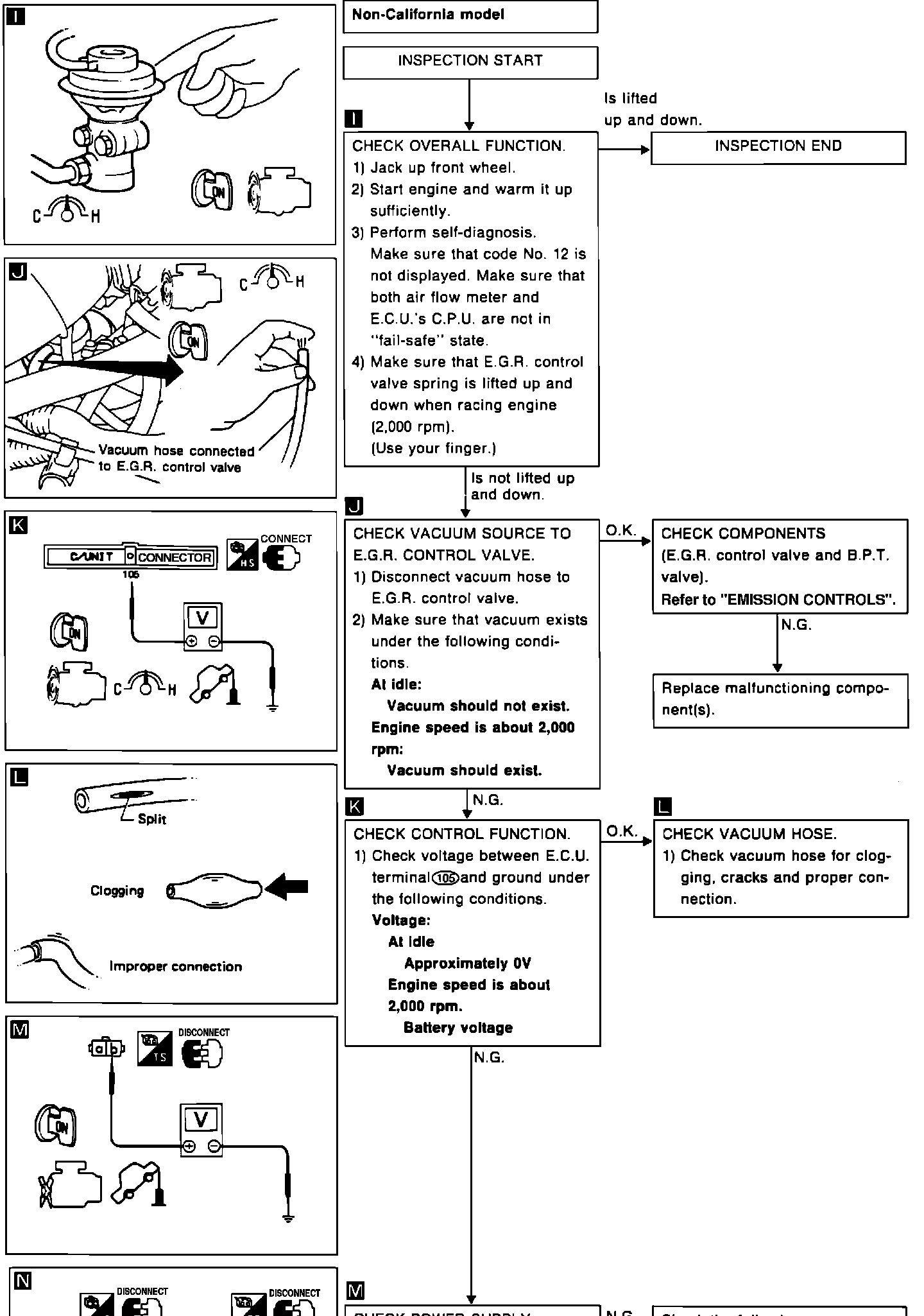

��YCode 32 EGR Circuit Diagnosis (Non CA. Only):

DIAGNOSTIC CHART IMAGE

Code 32 Exhaust Gas Temperature Sensor Circuit:

CIRCUIT DIAGRAM IMAGE

Exhaust Gas Temperature Sensor Connector:

ELECTRICAL CONNECTORS IMAGE

Final Check:

FINAL CHECK IMAGE
