Flow of Diagnosis

FLOW OF DIAGNOSIS

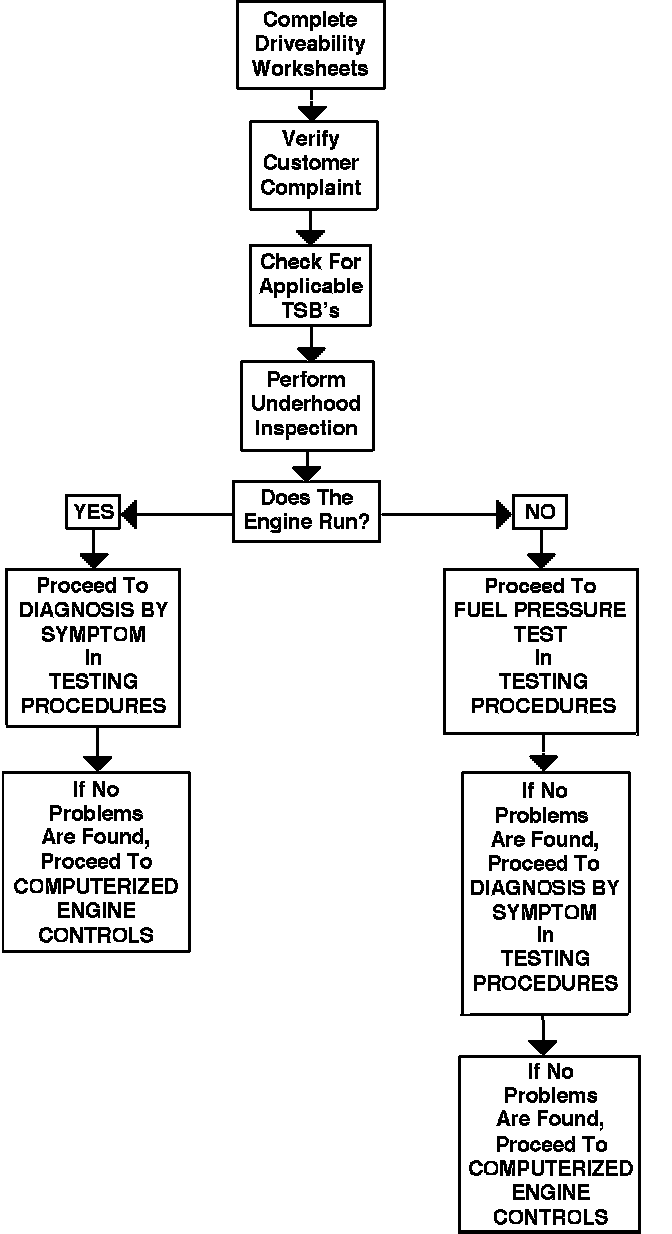

Flow Of Diagnosis:

DRIVEABILITY WORKSHEETS

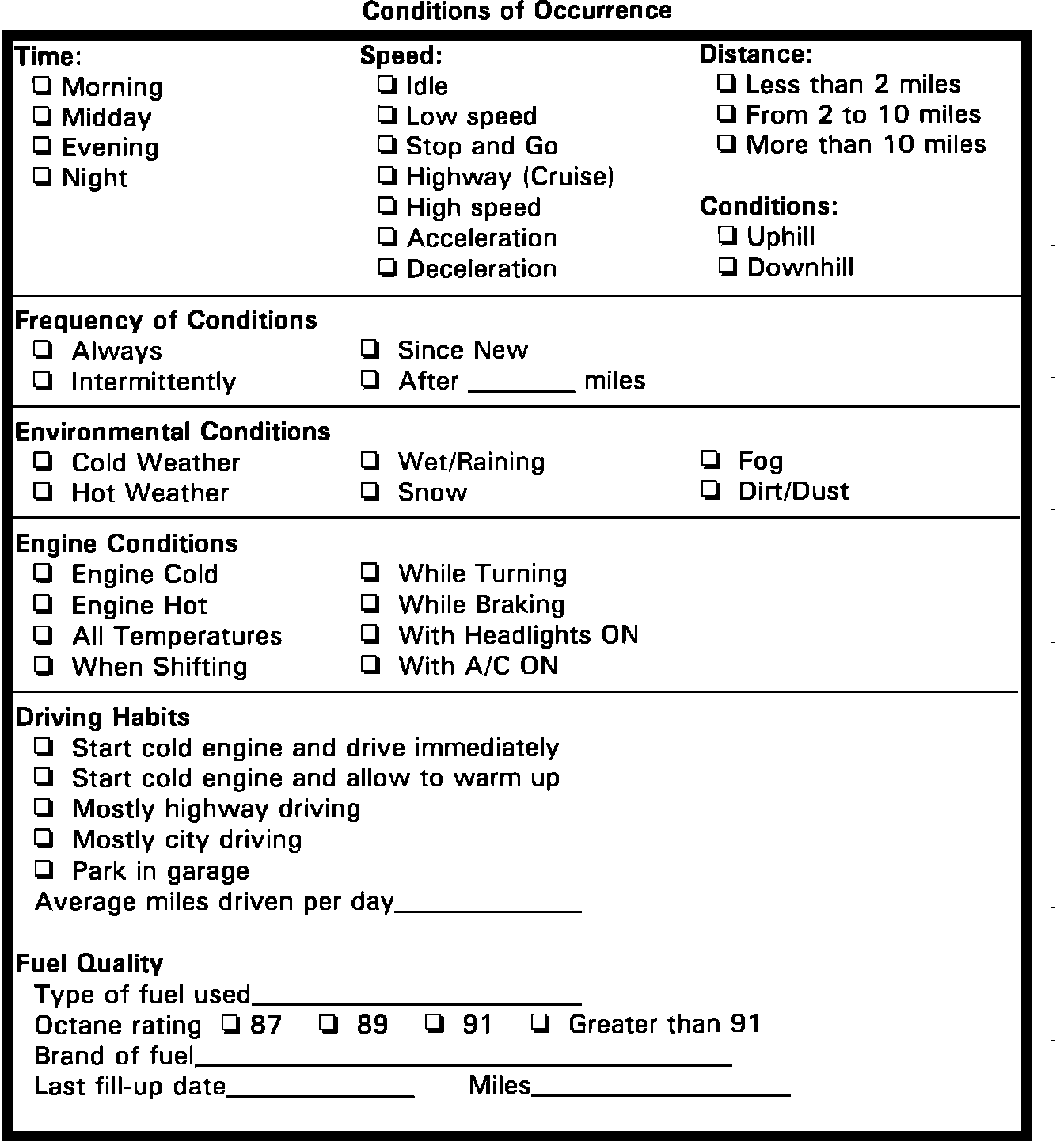

Driveability Worksheet (Part 1 Of 2):

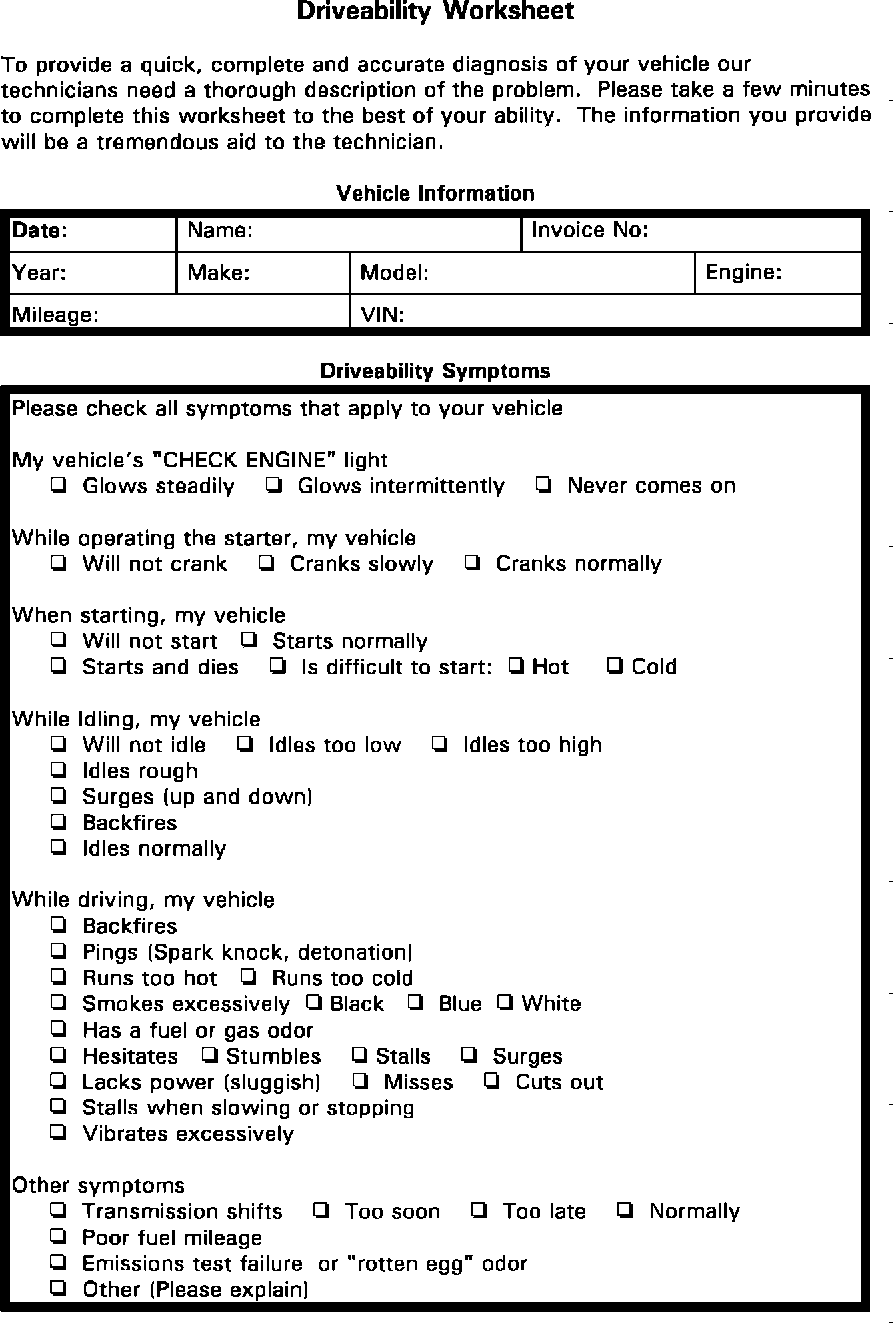

Driveability Worksheet (Part 2 Of 2):

1. Complete driveability worksheets.
2. Verify customer complaint.
Road test vehicle to verify.
3. Check TSB'S for manual updates, testing procedures, warranty and recall information.
4. Perform underhood inspection.
VISUALLY CHECK:
^ Vacuum hoses for splits, kinks, and proper routing.
^ Ignition wiring for cracking, hardness, and proper connections at both the distributor and spark plugs.
^ All wiring for proper connections, pinches and cuts.
^ Wiring harness for proper routing.
^ Check for missing components.
5. Follow the chart from top to bottom. If no faults are found, proceed to Computers and Control Systems.
