Diagnostic Test Procedure 9

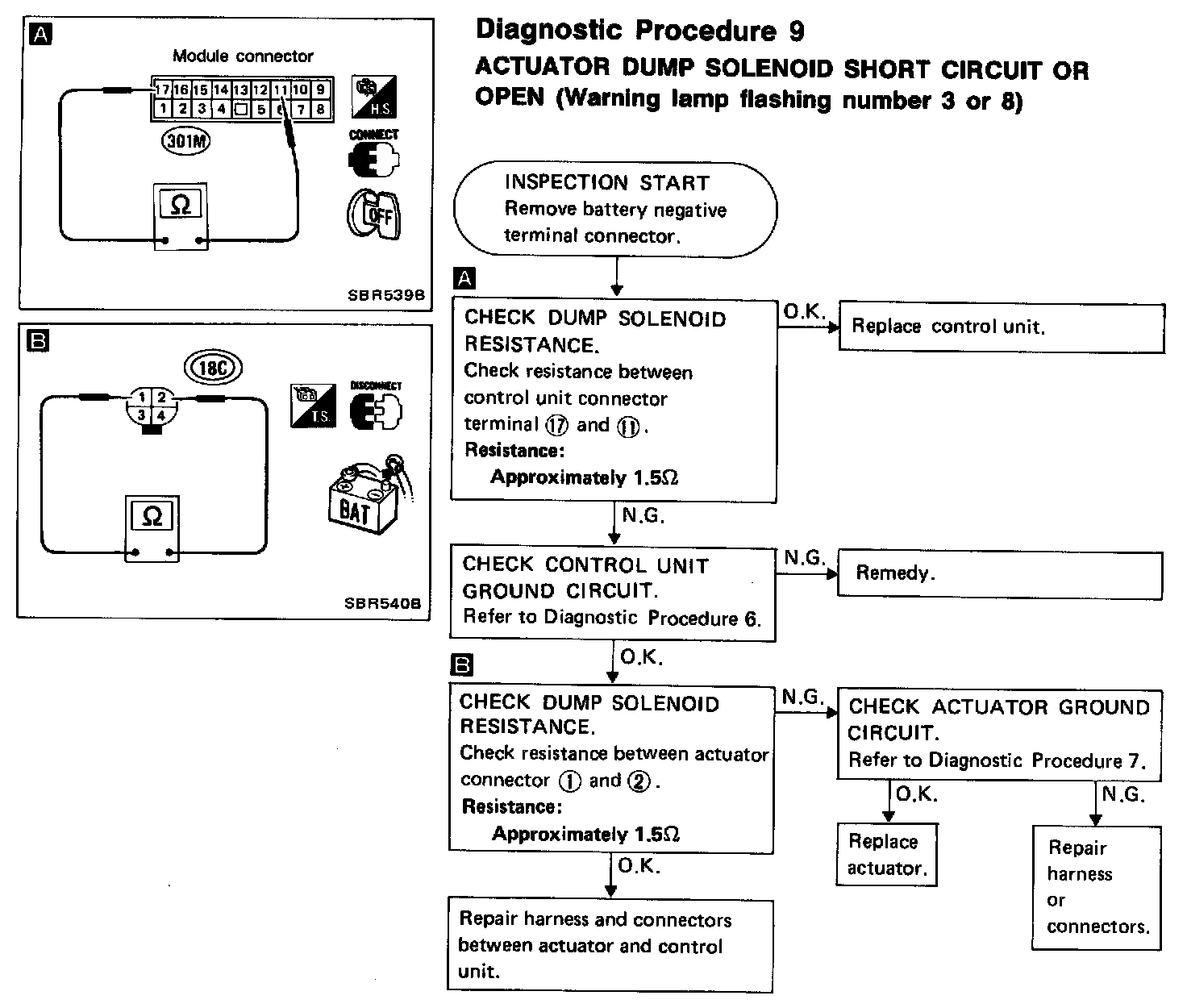

Diagnostic Procedure 9
ACTUATOR DUMP SOLENOID SHORT CIRCUIT OR OPEN
(Warning lamp flashing number 3 or 8)
