Instrument Cluster

NOTE: Always disconnect negative battery terminal before removing instrument cluster. On models equipped with Head-Up Display (HUD), cover HUD's reflective surface with cloth or vinyl sheet before removing instrument cluster.

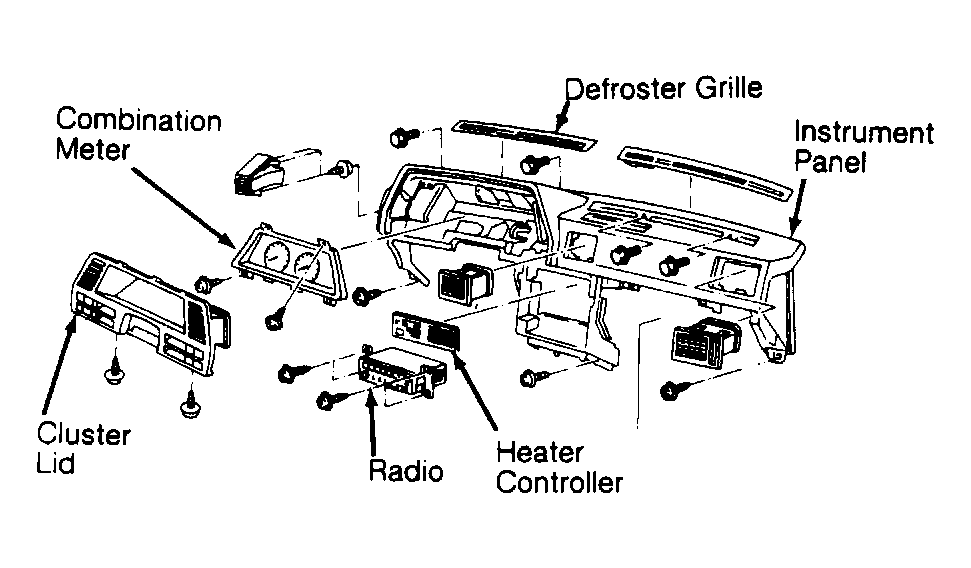

Fig 1: Exploded View of Instrument Panel
G91B02354Courtesy of NISSAN MOTOR CO., U.S.A.
