Parking Pawl: Service and Repair

Parking Components - 4WD model

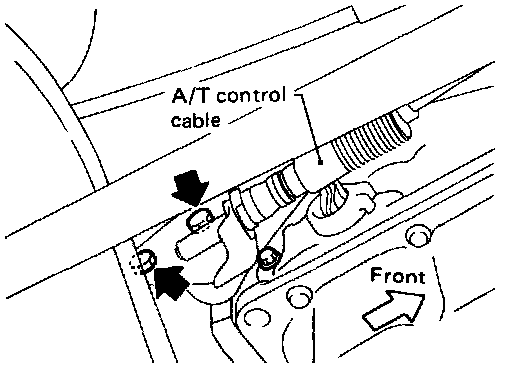

1. Remove propeller shaft.
2. Remove transfer case from vehicle.

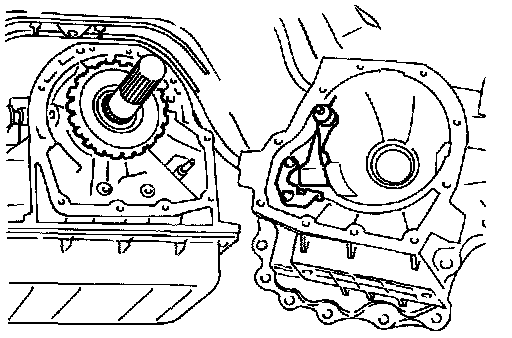

3. Remove manual control linkage bracket from adapter case.
4. Support A/T assembly with a jack.
5. Remove adapter case from transmission case.





6. Replace parking components if necessary.
7. Reinstall any part removed.
- Always use new sealing parts.
