Fluid - Differential: Testing and Inspection

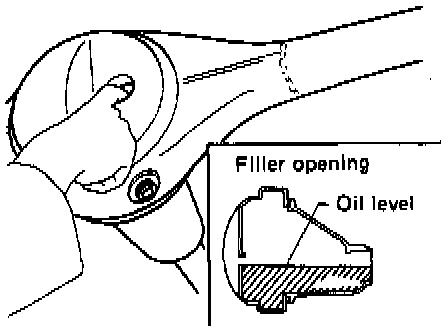

CHECKING DIFFERENTIAL GEAR OIL
1. Check differential carrier for oil leakage.
2. If leakage is found, check oil level.

Filler Plug Torque:
Front: 39 - 59 Nm (29 - 43 ft-lb)
Rear
H190, H233B: 59 - 98 (43 - 72 ft-lb)
C200: 39 - 59 Nm (29 - 43 ft-lb)
