Home >> Nissan-Datsun >> 1990 >> D21 Hardbody 4WD V6-2960cc 3.0L SOHC MFI (VG30E) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Heating and Air Conditioning >> System Diagram >> Manual Air Conditioning

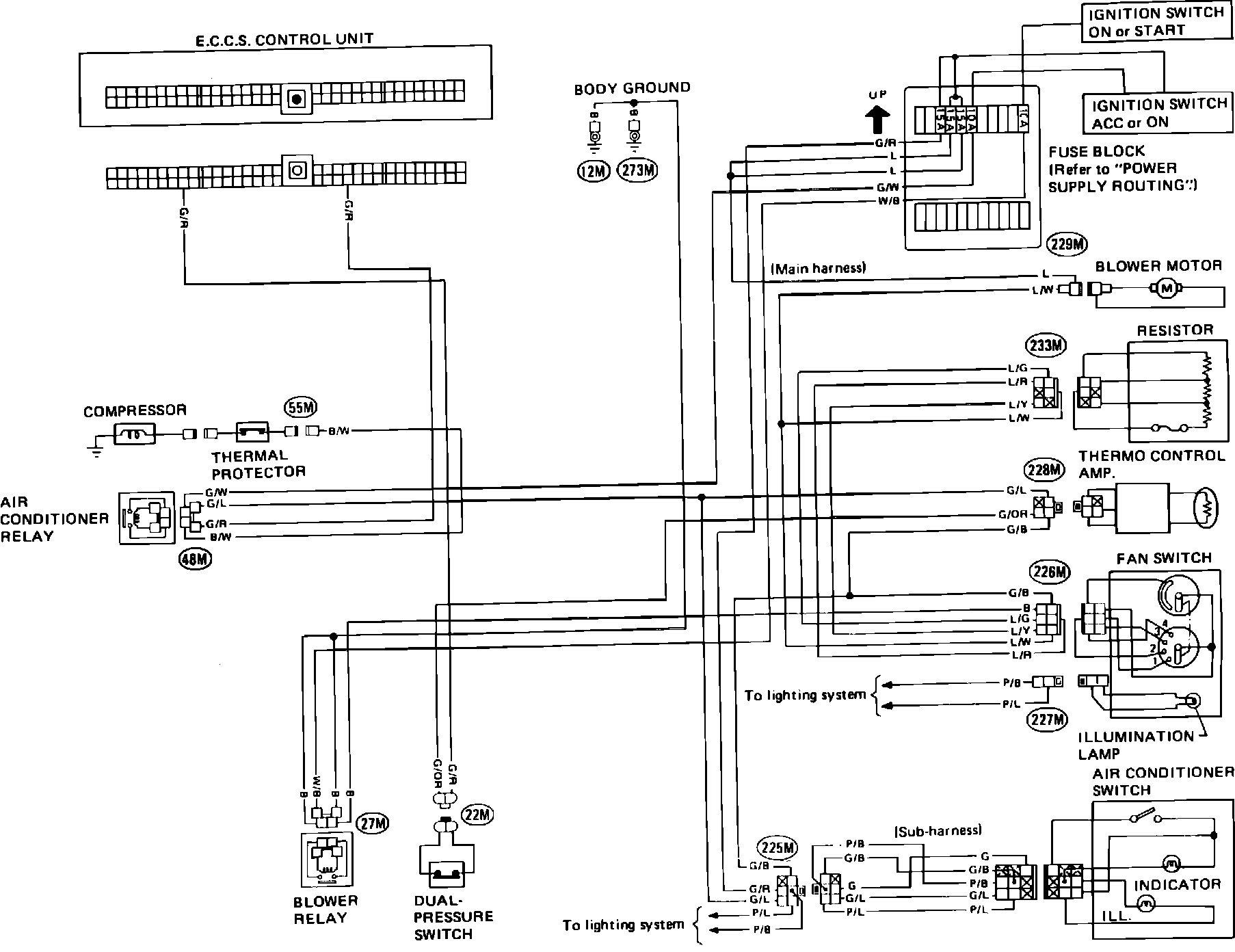

Manual Air Conditioning

Air conditioning (Manual Controls):
