Front Differential

Front Oil Seal Replacement (Front final drive)

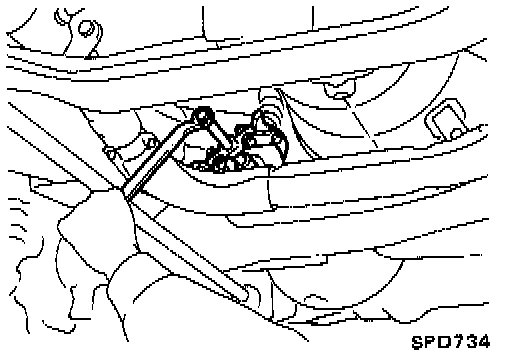

1. Remove front propeller shaft.

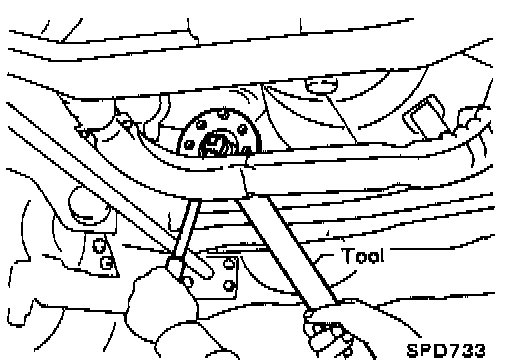

2. Loosen drive pinion nut.
Tool number: ST38O6OOO2 (J34311)

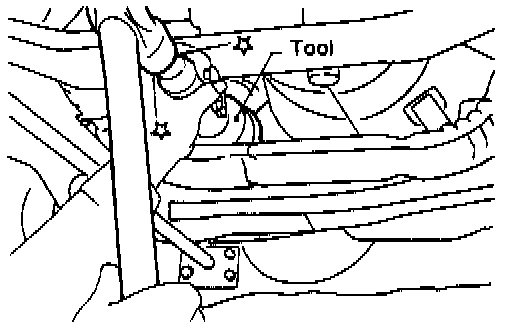

3. Remove companion flange.

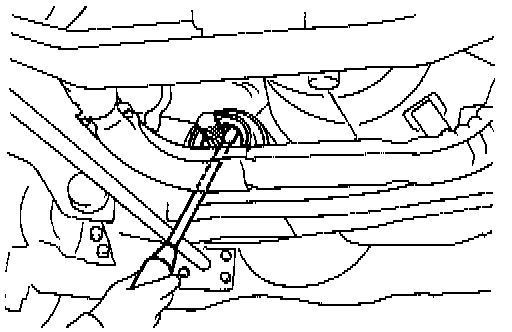

4. Remove front oil seal.





5. Apply multi-purpose grease to cavity at sealing lips of oil seal. Press front oil seal into carrier.
6. Install companion flange and drive pinion nut.
7. Install propeller shaft.
Tool number:
R18OA
ST3O72OOOO ( - )
Equivalent tool (J254O5)
R2OOA
KV381OO5OO ( - )
Equivalent tool (J25273)
