Clutch Release Bearing: Service and Repair

REMOVAL AND INSTALLATION
^ Install retainer spring and holder spring.





^ Remove release bearing.





^ Install release bearing with suitable drift.

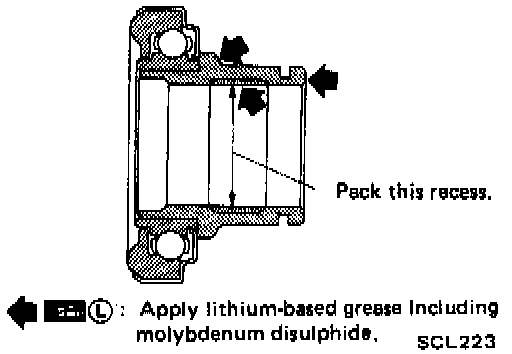

LUBRICATION
^ Apply recommended grease to contact surface and rubbing surface.
^ Too much lubricant might cause clutch disc facing damage.
