Clutch Pedal Assembly: Adjustments

Adjusting Clutch Pedal

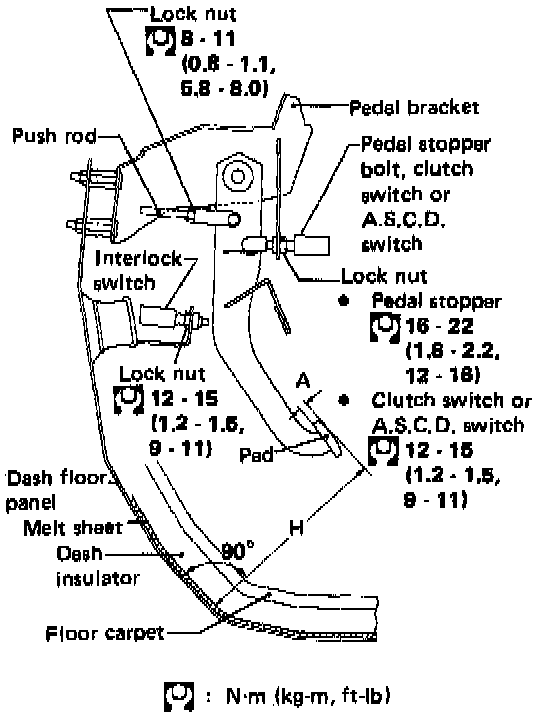

1. Adjust pedal height with pedal stopper or clutch switch.
Pedal height "H":
KA24E engine 236 - 246 mm (9.29 - 9.69 in)
VG3OE engine 227 - 237 mm (8.94 - 9.33 in)

2. Adjust pedal free play with master cylinder push rod. Then tighten lock nut.
Pedal free play "A":
1.0 - 3.0 mm (0.039 - 0.118 in)

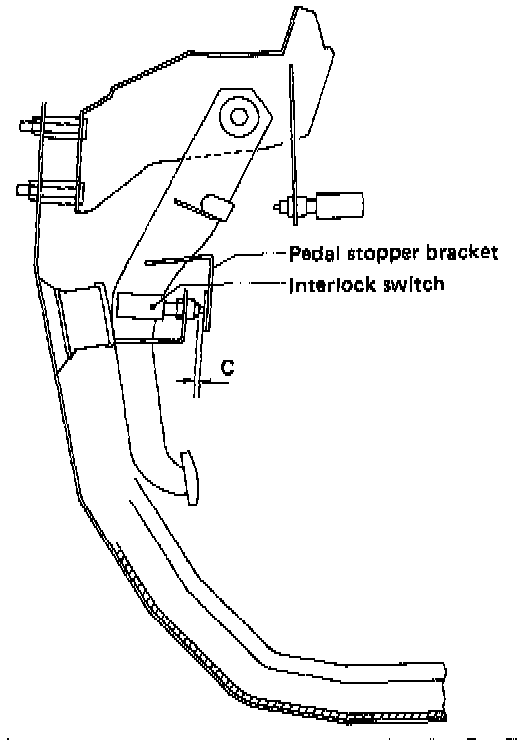

3. Adjust clearance "C" between pedal stopper bracket and threaded end of clutch interlock switch while depressing clutch pedal fully.
Clearance "C":
0.3 - 1.0 mm (0.012 - 0.039 in)
