M/T - Clutch Disc Binding/Hard Shifting Troubleshooting

9217nissan01

Classification:
MT92-002

Section:
Manaul Transmission

Reference:
TECHNICAL BULLETIN NTB92-010


Models:
1990-91 Truck

Date:
March 12, 1992


D21 CLUTCH DISC BINDING / HARD SHIFTING TROUBLESHOOTING

APPLIED MODEL:
1990-91 D21 Truck (KA24 2WD)

SERVICE INFORMATION

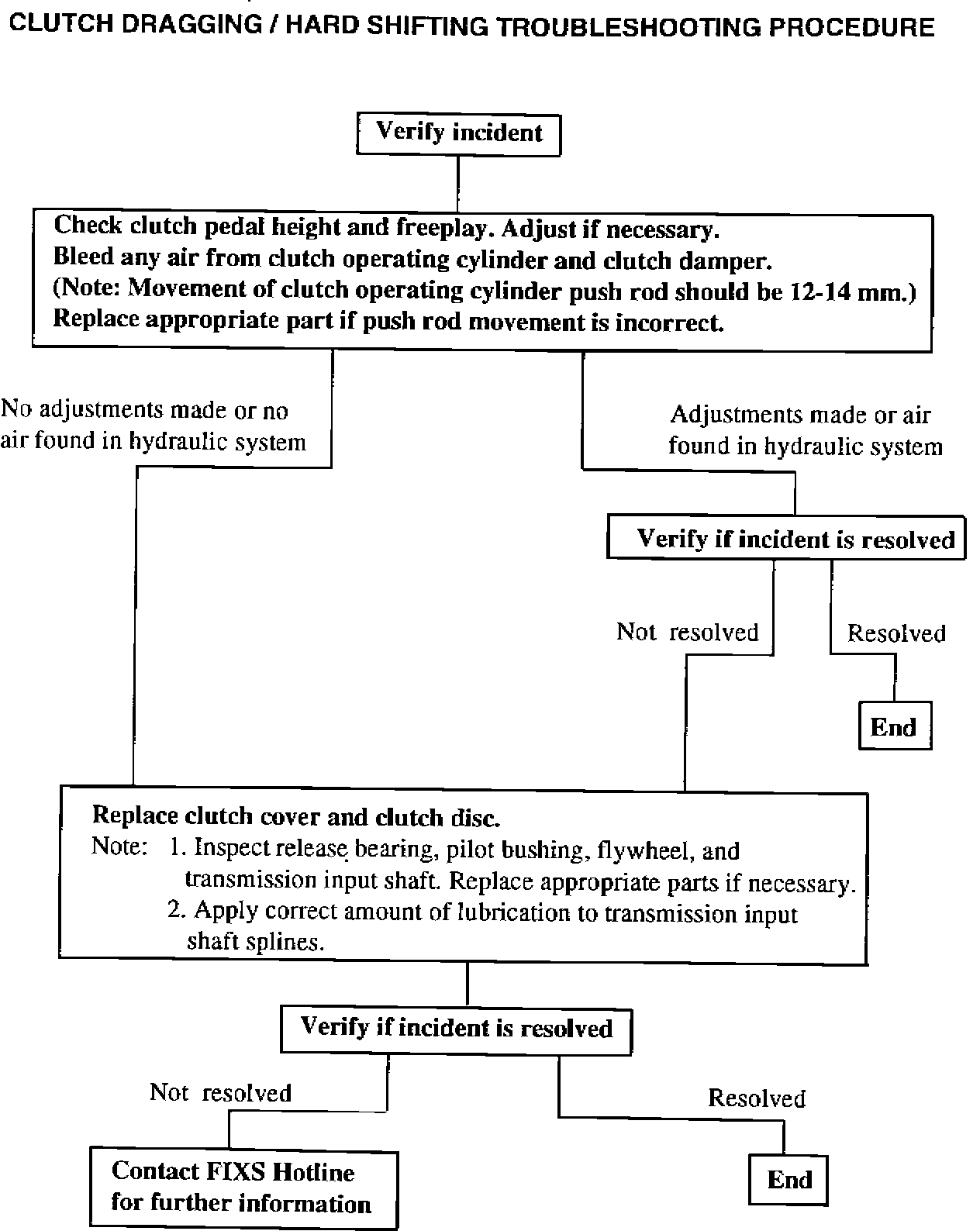

Owners of some 1990-91 Trucks may complain of clutch disc binding or hard shifting incidents. Follow the procedure to troubleshoot the complaint and to prevent any unnecessary parts replacement. Refer to the Service Manual for inspection/adjustment specifications and removal/installation procedures.

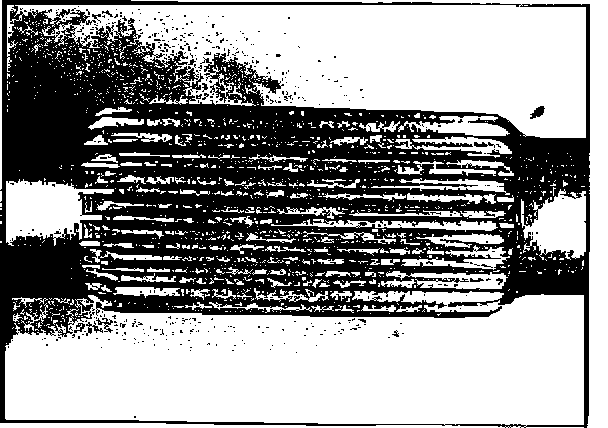

Apply lithium-based grease (which includes molybdenum disulphide) to the input shaft as shown:
