Disassembly - Assembly

Disassembly

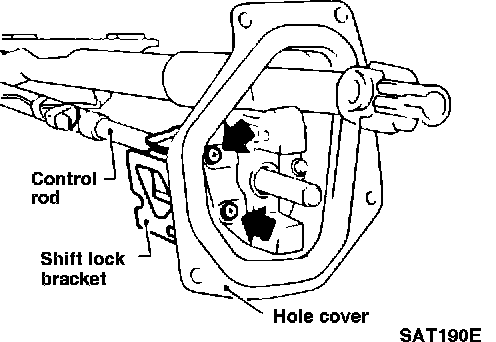

^ Do not remove shift lock bracket from hole cover.





Assembly

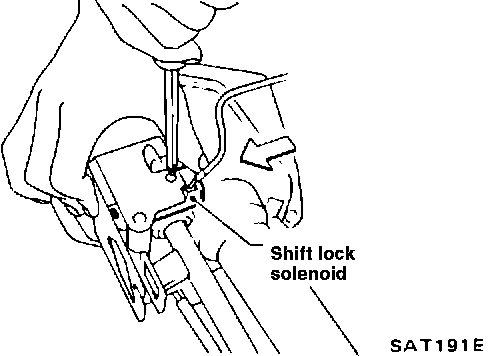

^ Install shift lock solenoid. Tighten screws while pushing shift lock solenoid in the direction of the arrow as shown in illustration.

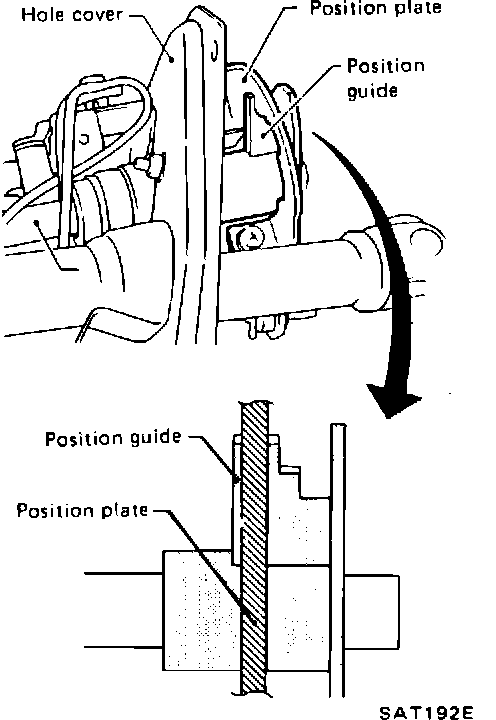

^ Install position plate. Make sure that position guide is placed within position plate.

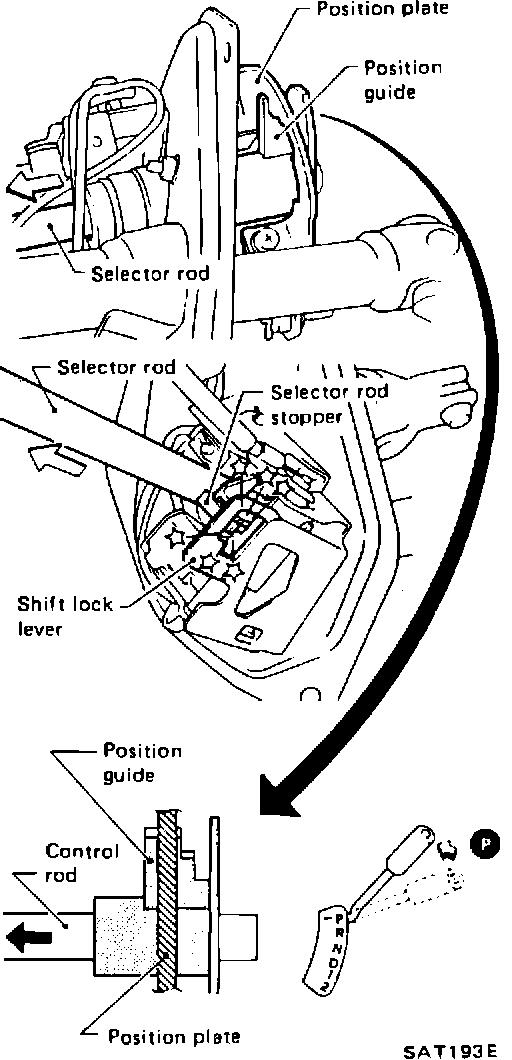

Assembly (Cont'd) Make sure that position guide is placed within position plate when control lever is pulled into position P (Selector rod stopper is hooked at lock plate).

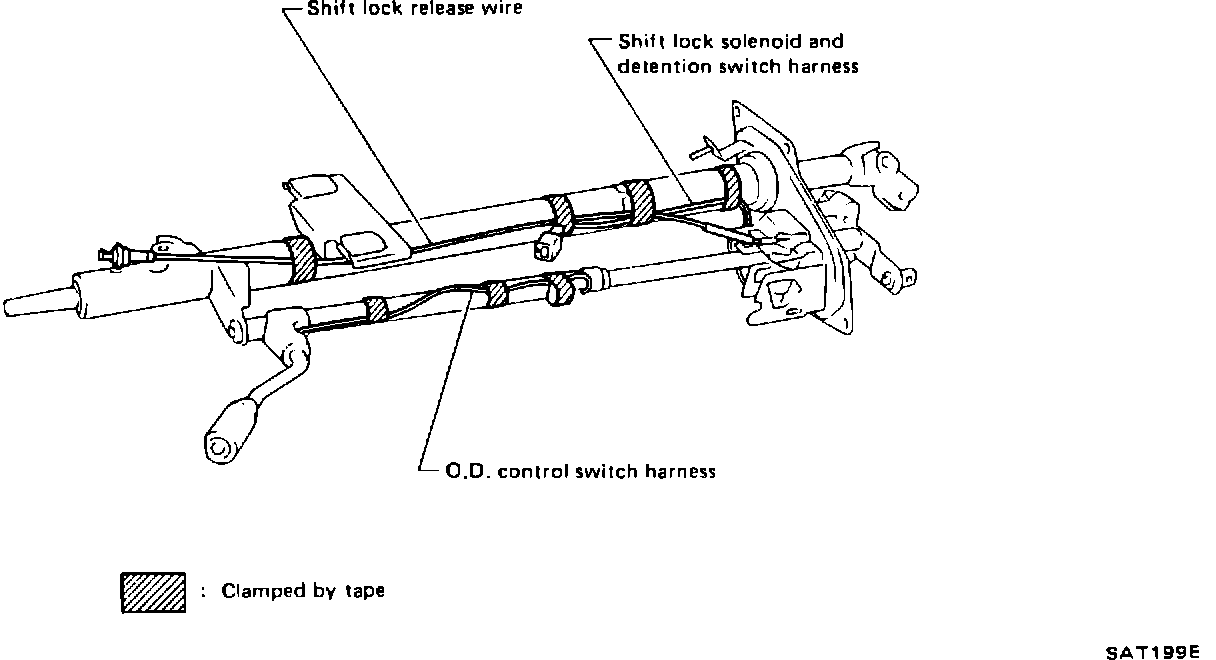

^ Clamp O.D. control switch harness, shift lock harness and shift lock release wire using tape.
