Home >> Nissan-Datsun >> 1990 >> D21 Hardbody 2WD V6-2960cc 3.0L SOHC MFI (VG30E) >> Repair and Diagnosis >> Locations >> Connector Locations >> C Connectors

C Connectors

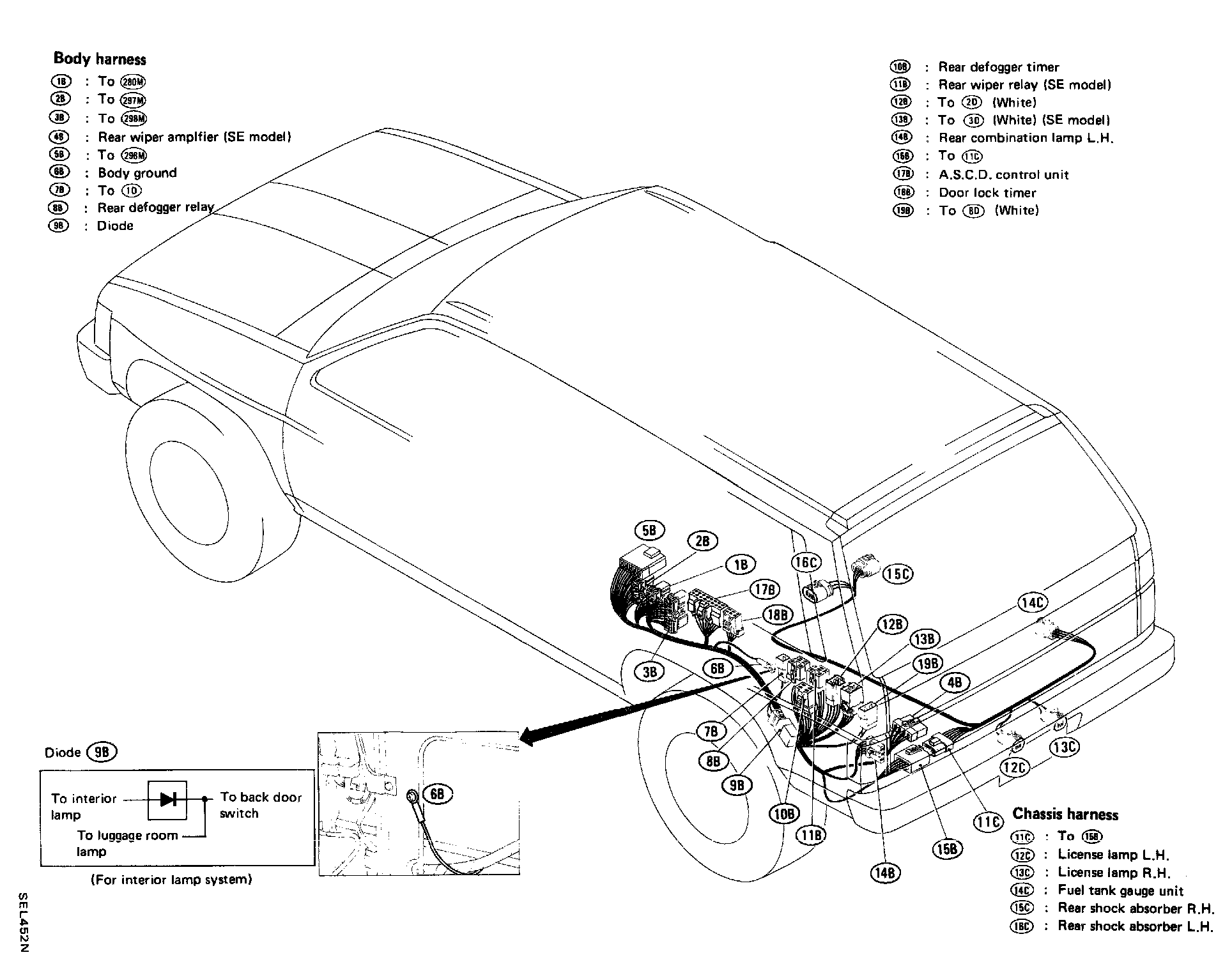

VAN AND WAGON 2-DOOR MODEL:

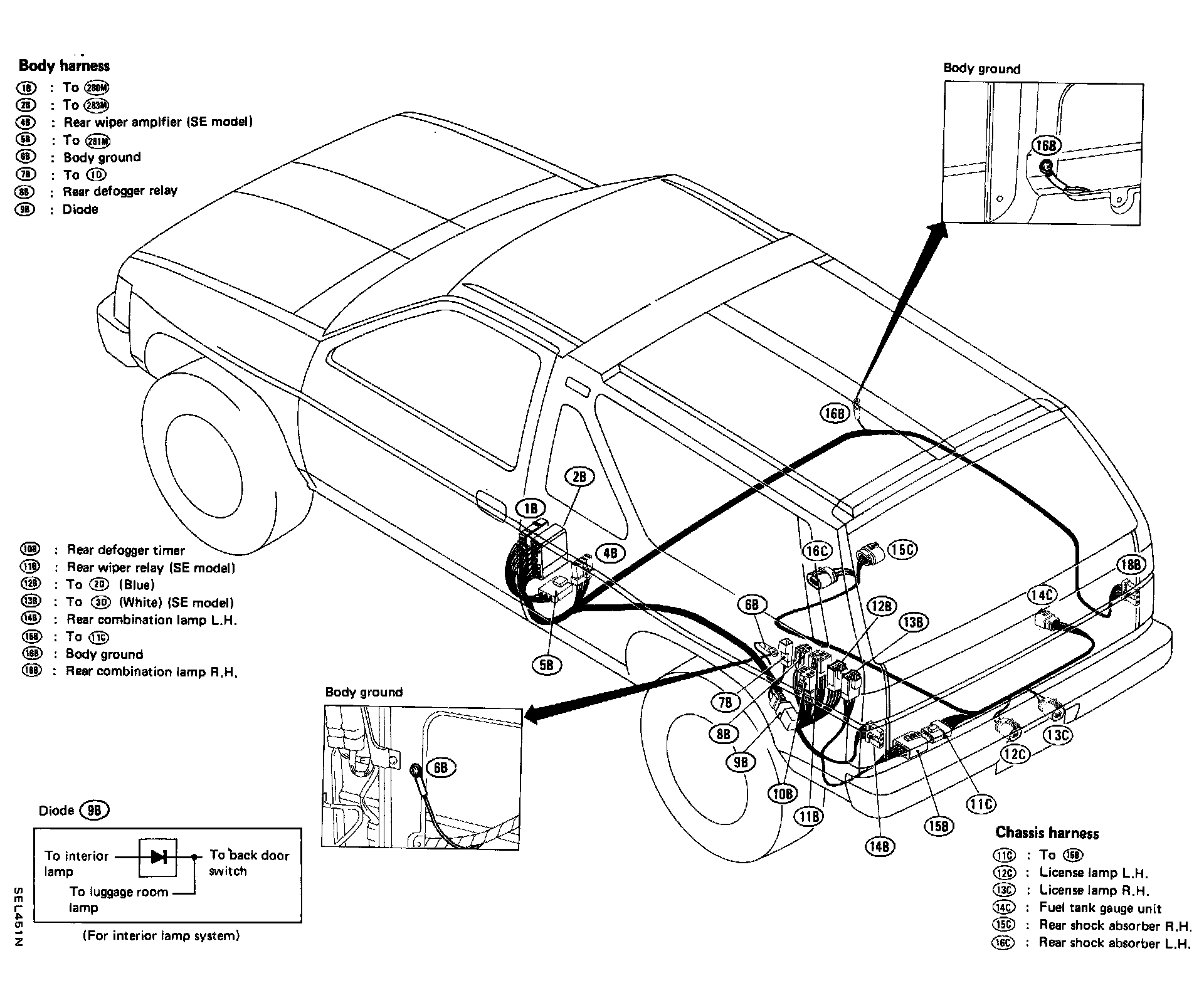

VAN AND WAGON 4-DOOR MODEL:
