Home >> Nissan-Datsun >> 1990 >> D21 Hardbody 2WD V6-2960cc 3.0L SOHC MFI (VG30E) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Radio, Stereo, and Compact Disc >> Audio System Wiring >> 4 Speaker

4 Speaker

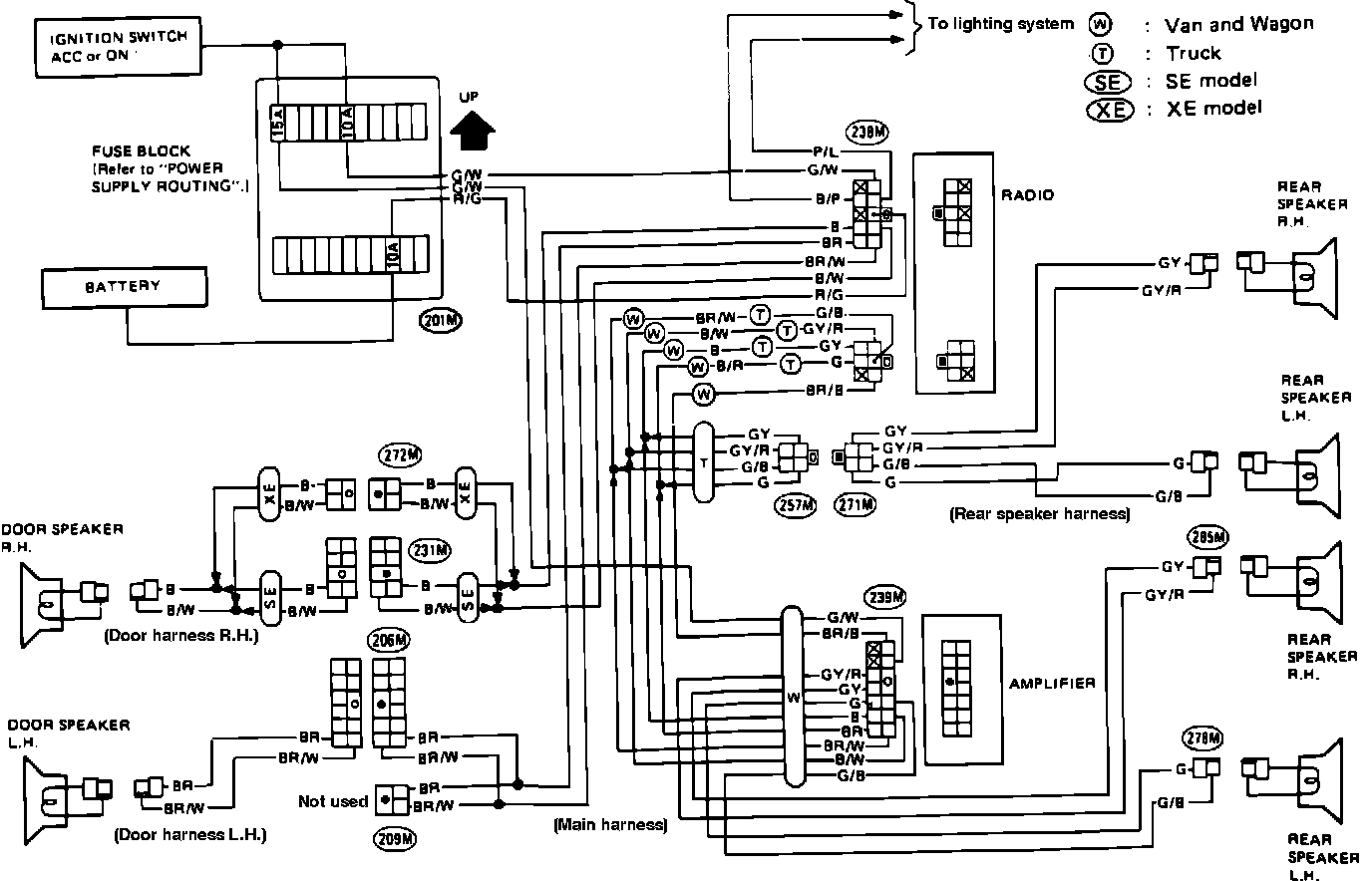

Radio & Speakers (4 Speakers):
