Electronic Concentrated Control System Diagram
Electronic Concentrated Control System Diagram

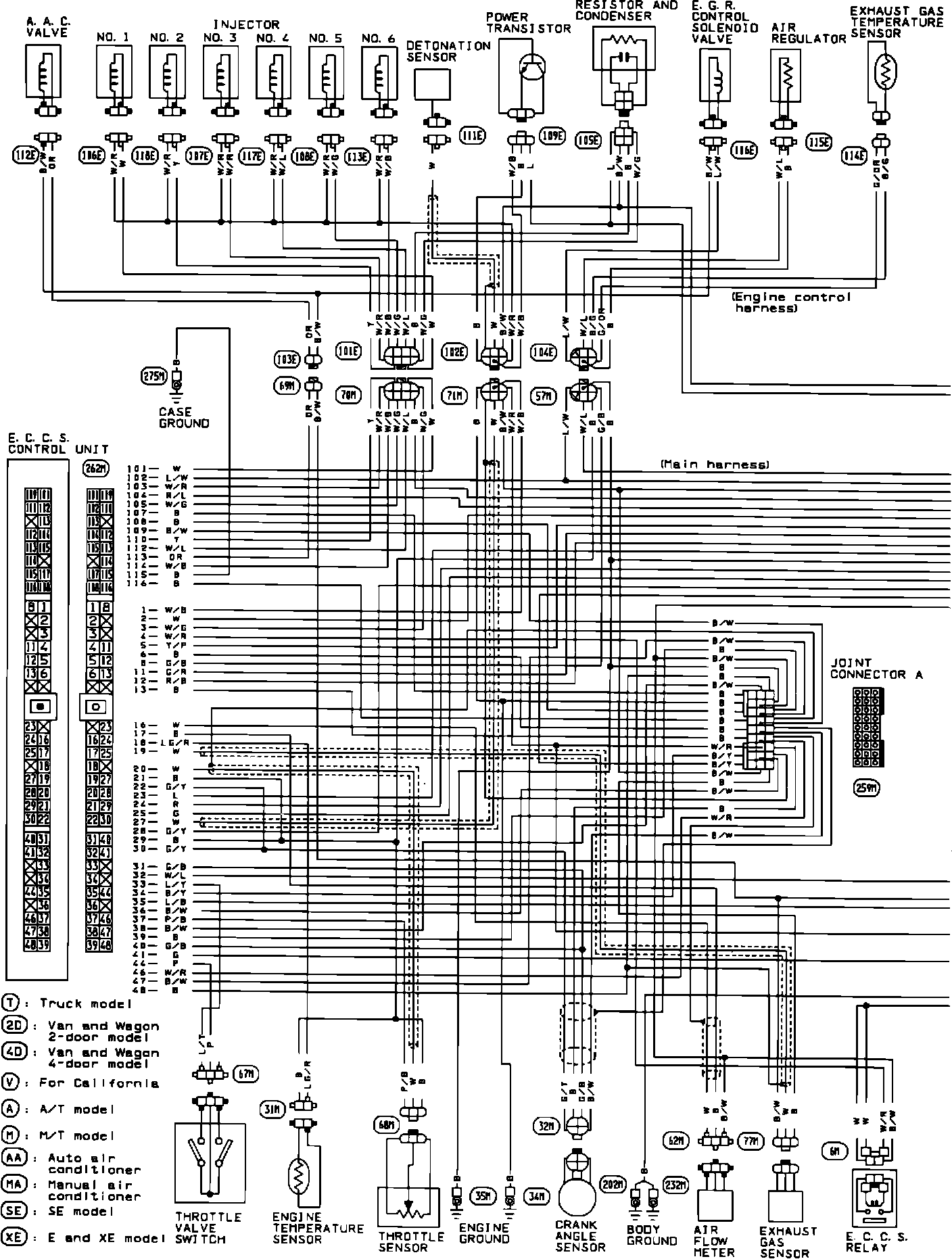

Fuel Injection & Ignition System:

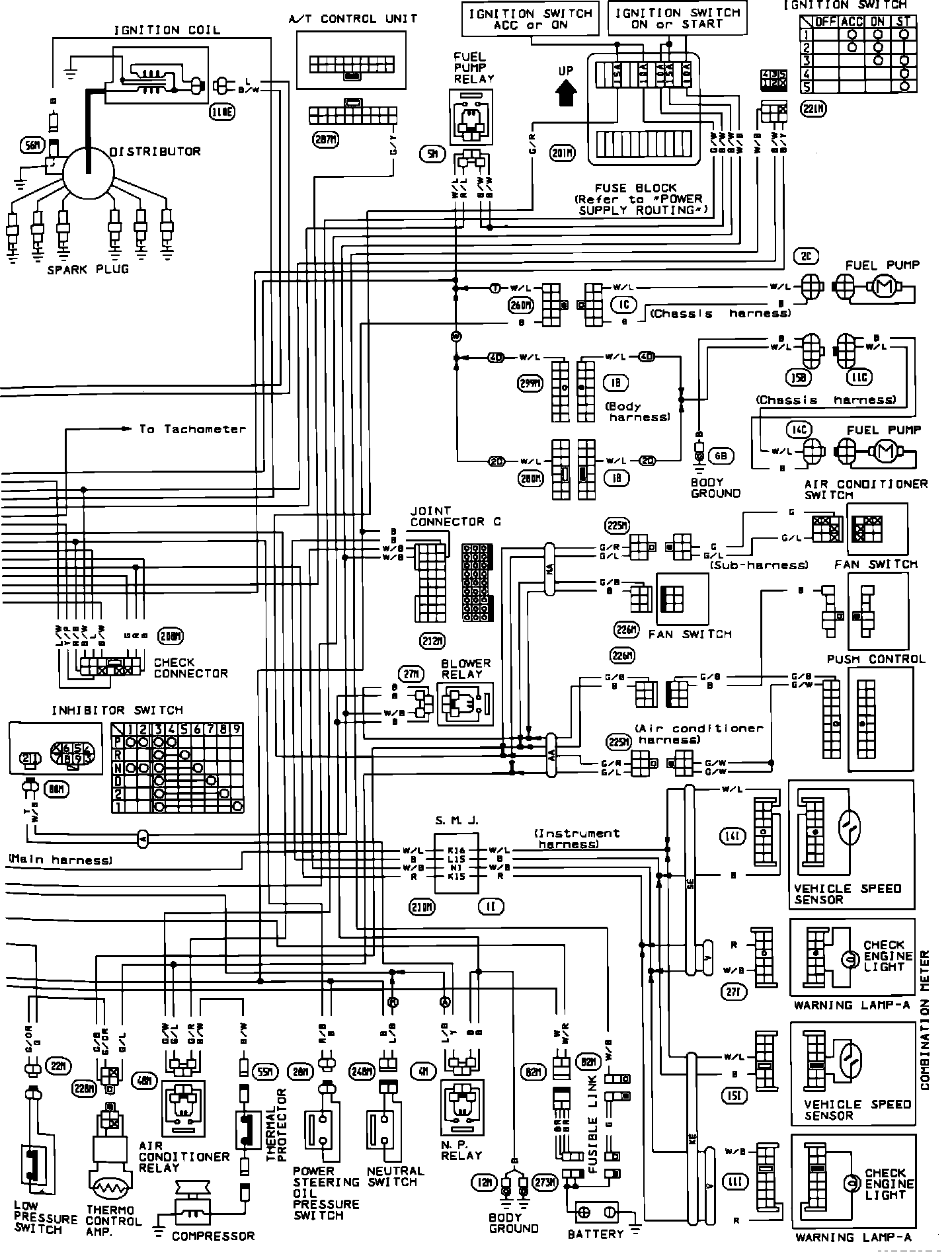

Fuel Injection, Fuel Pump & Ignition System:
