Front Disc Brake Pads: Installation

  1. Clean piston and area around lock and guide pins. Install inner pad. Seat piston by placing lever through opening in caliper body and pushing piston into bore. Apply brake grease to pad retainer points on caliper assembly. Install outer pad and shims.
  2. Install pad retainers. Rotate caliper body down into original position. Install lower lock pin. Tighten bolt and depress brake pedal several times to seat pads.
Fig 1: Exploded View of Dual Piston Front Brakes (V6 Pathfinder/Pickup)
G58119Courtesy of NISSAN MOTOR CO., U.S.A.

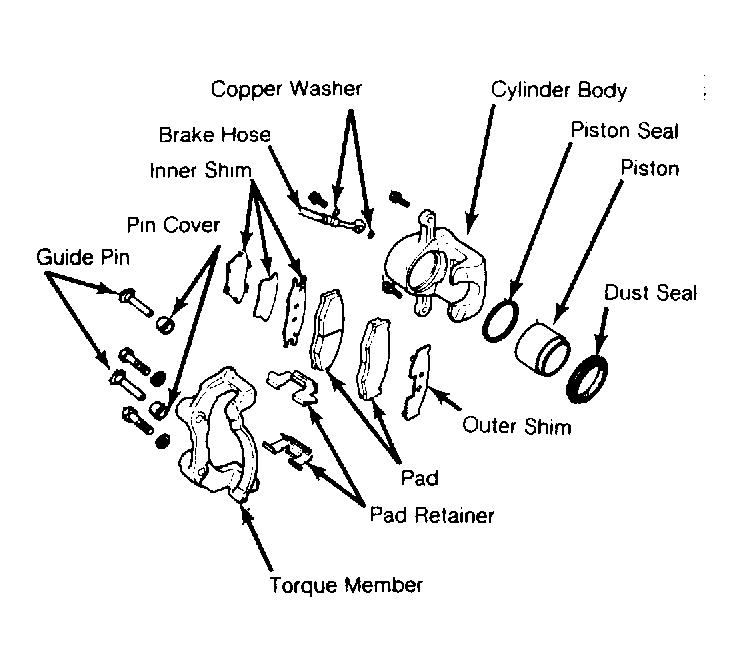

Fig 2: Exploded View of Front Brakes (2WD 4-Cyl. Pathfinder/Pickup)
G58120Courtesy of NISSAN MOTOR CO., U.S.A.

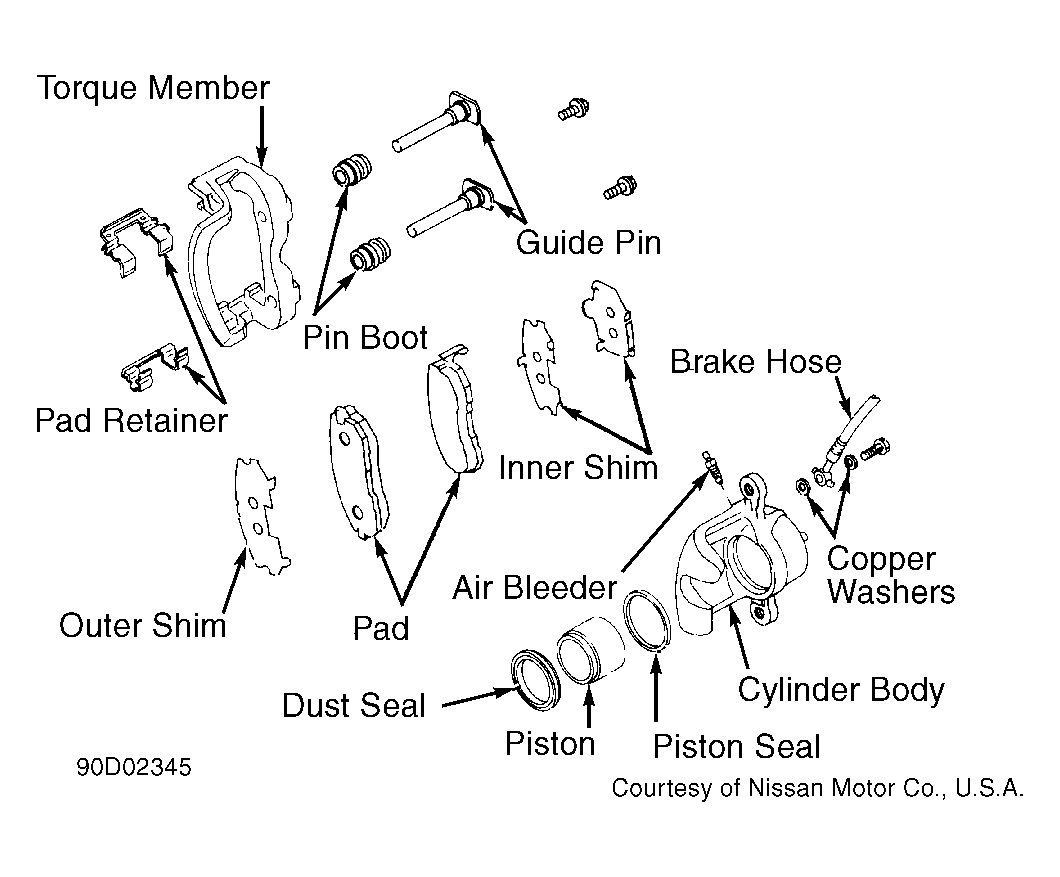

Fig 3: Exploded View of Front Brakes (Maxima)
G90D02345Courtesy of NISSAN MOTOR CO., U.S.A.

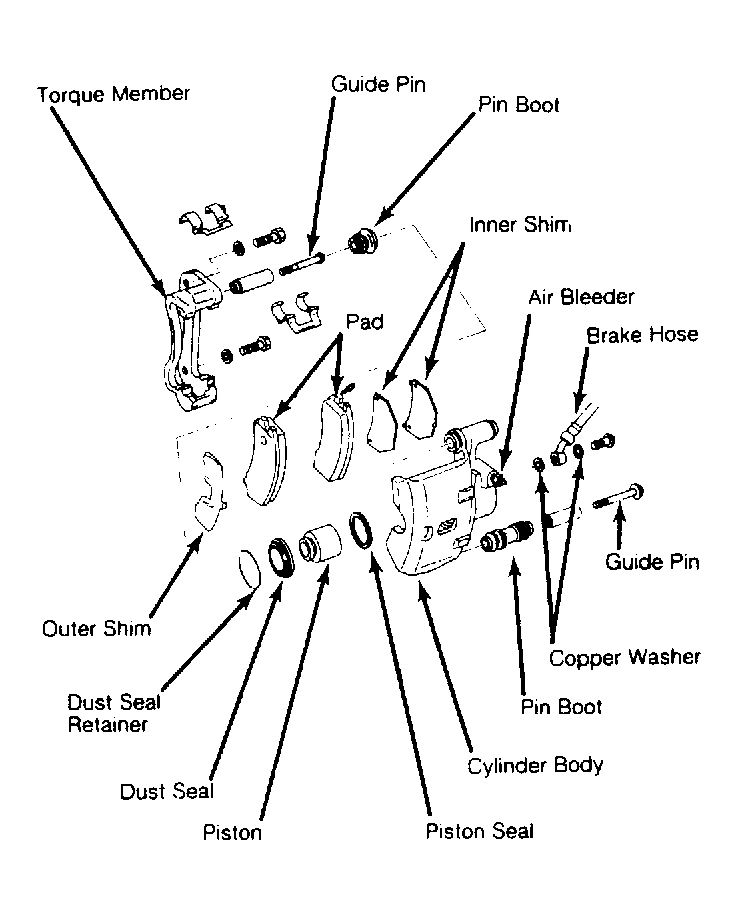

Fig 4: Exploded View of Front Brakes (Pulsar NX SE)
G58122Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 5: Exploded View of Front Brakes (Pulsar NX XE & Sentra)
G58121Courtesy of NISSAN MOTOR CO., U.S.A.

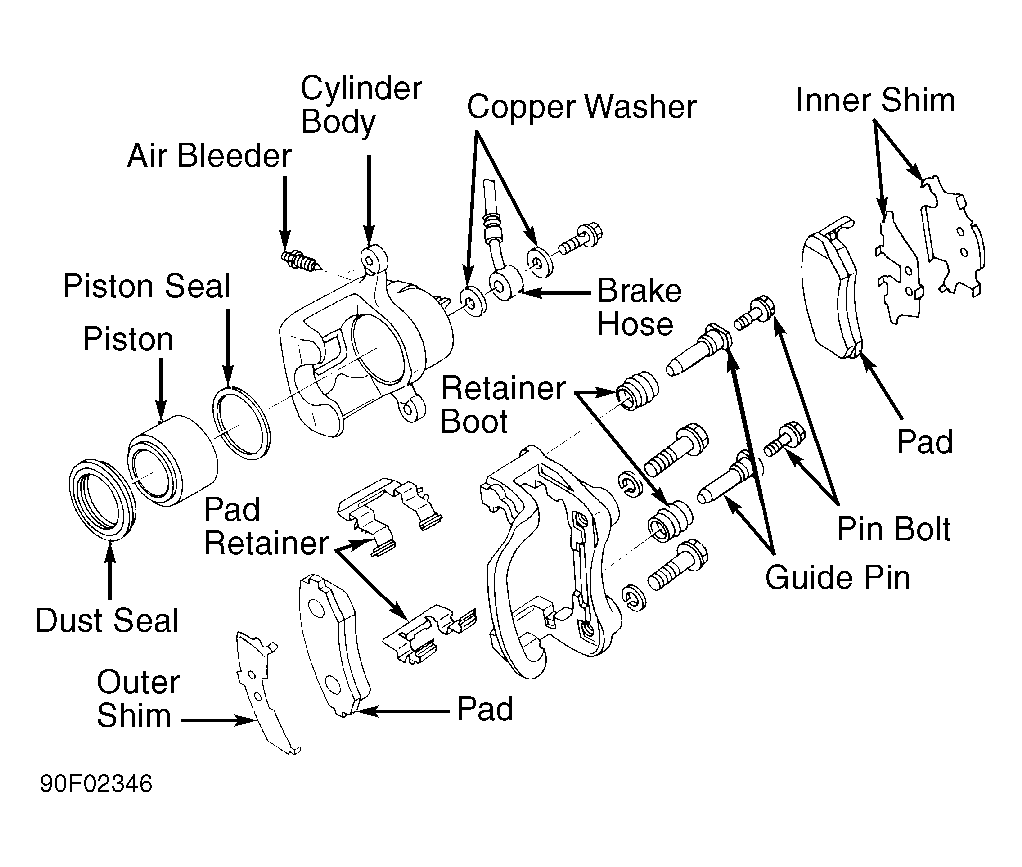

Fig 6: Exploded View of Front Brakes (240SX)
G90F02346Courtesy of NISSAN MOTOR CO., U.S.A.

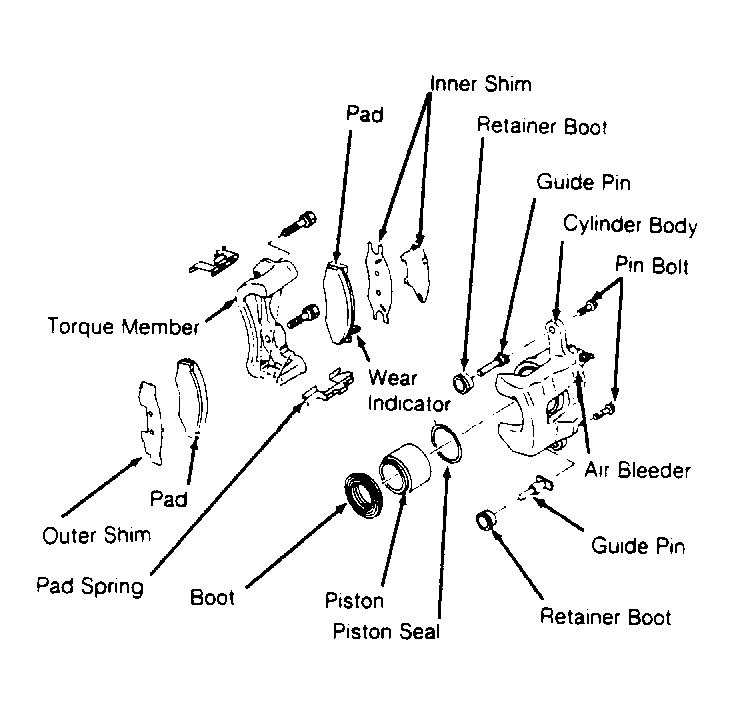

Fig 7: Exploded View of Front Brakes (300ZX)
G90H02347Courtesy of NISSAN MOTOR CO., U.S.A.
