Rear Disc Brake Caliper: Reassembly

  1. Before reassembly, apply rubber grease to groove in push rod, new "O" ring, groove in adjusting nut and cup, piston seal, inside of boot and sliding portions of piston and pins.

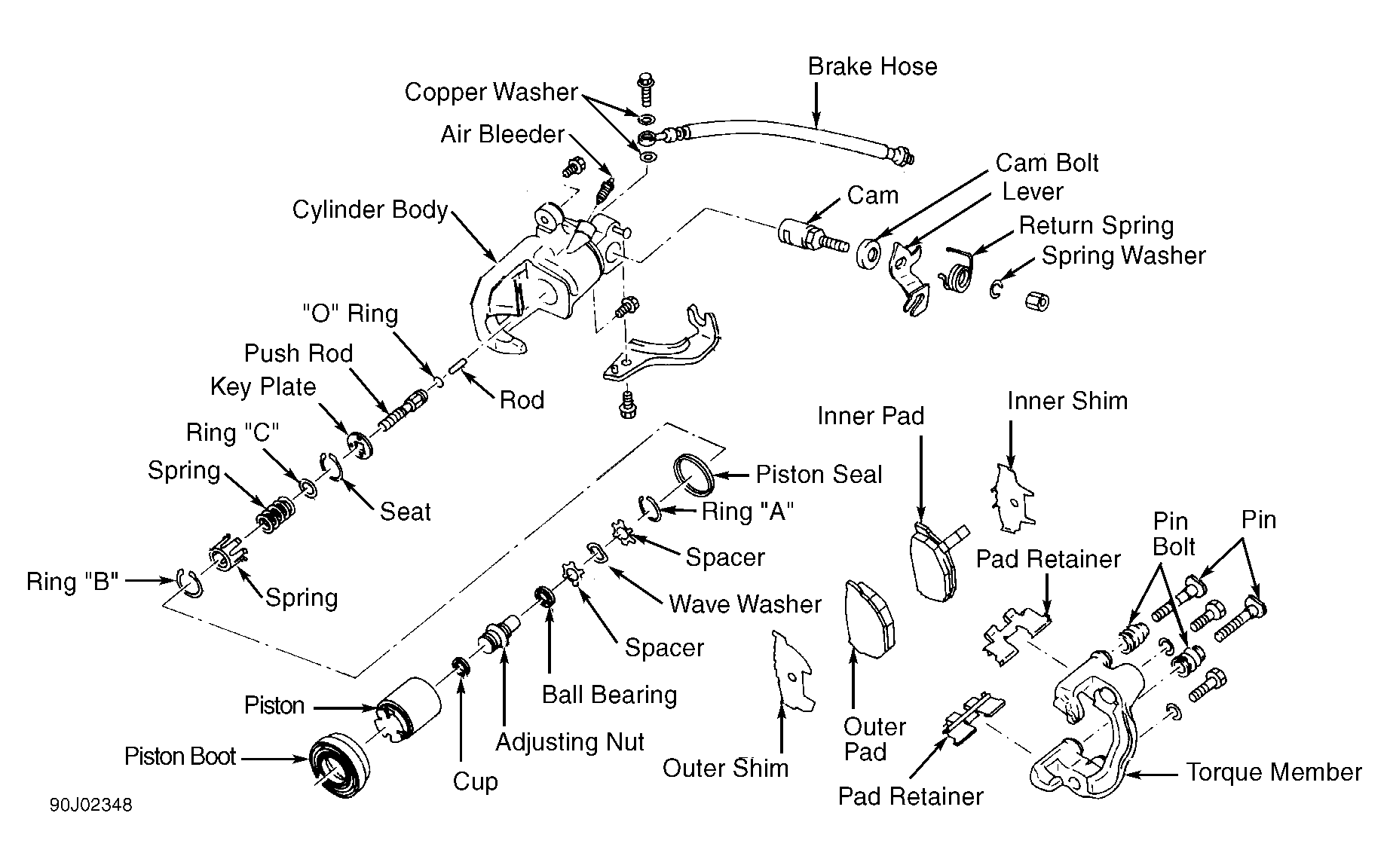

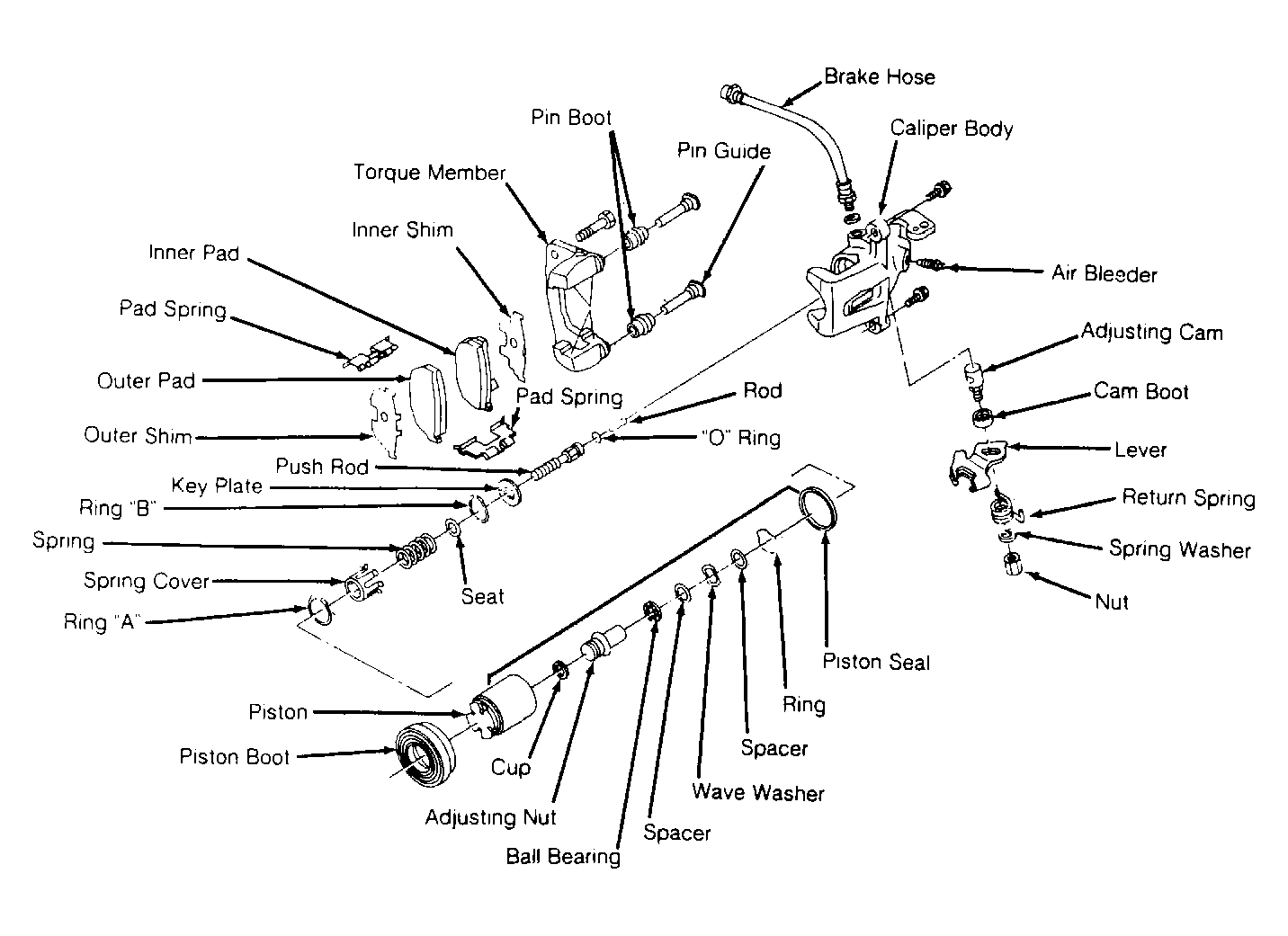

  2. Install cup with lip facing center of adjust nut. Fit rod to push rod and push rod into square hole in key plate. Fit convex portion of key plate with concave portion of caliper. Install first snap ring. Install seat, spring, spring cover and second snap ring with press and drift. To complete reassembly, reverse disassembly procedure. See Figure and Figure .
