Rear Disc Brake Caliper: Maxima

Overhaul procedures are not available from manufacturer. Refer to appropriate illustration for exploded view of specific assembly. See Fig 1.

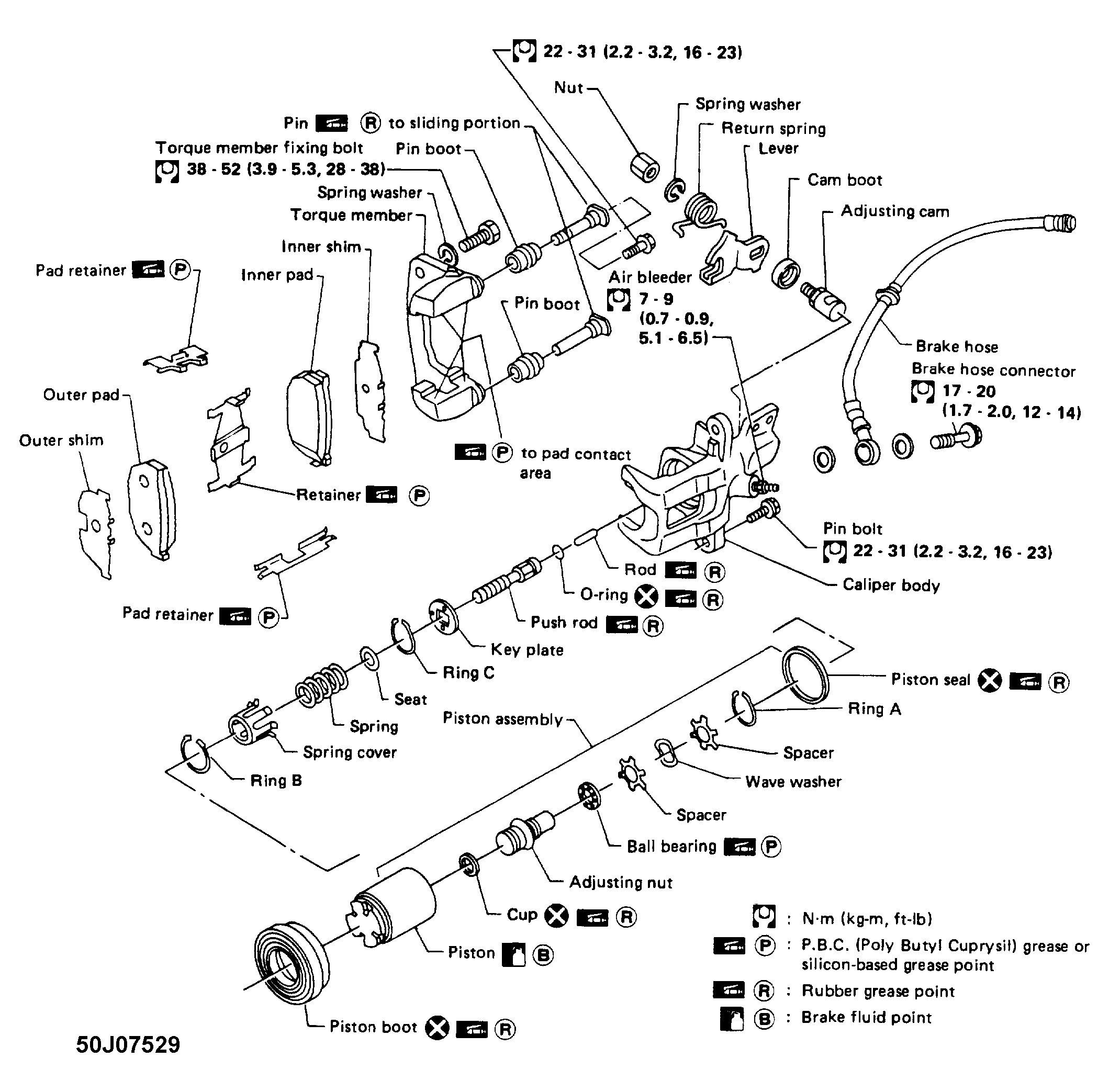

Fig 1: Rear Brake Caliper

Courtesy of NISSAN MOTOR CO., U.S.A.
