Rear Brake Drum & Linings: Reassembly

  1. To install, reverse removal procedure. Using brake grease, lubricate all brake shoe sliding surfaces, adjuster nut and rod threads, shoe-to-adjuster contact points and shoe-to-wheel cylinder and anchor.
  2. After installing brake shoes, set initial clearance between shoe and drum with adjuster. See INITIAL CLEARANCE SPECIFICATIONS table. After installation is complete, adjust final clearance between shoe and drum by operating parking brake several times.
INITIAL CLEARANCE SPECIFICATIONS

Application In. (mm)
Pathfinder & Pickup .010-.016 (.25-.41)
All Other Models .014-.022 (.36-.56)

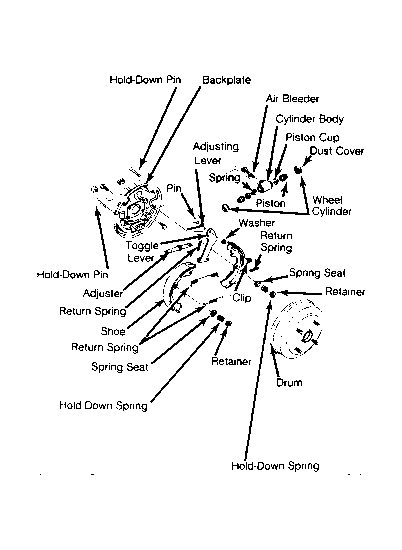

Fig 1: Exploded View of Rear Drum Brakes (Maxima & Stanza)
G58127Courtesy of NISSAN MOTOR CO., U.S.A.

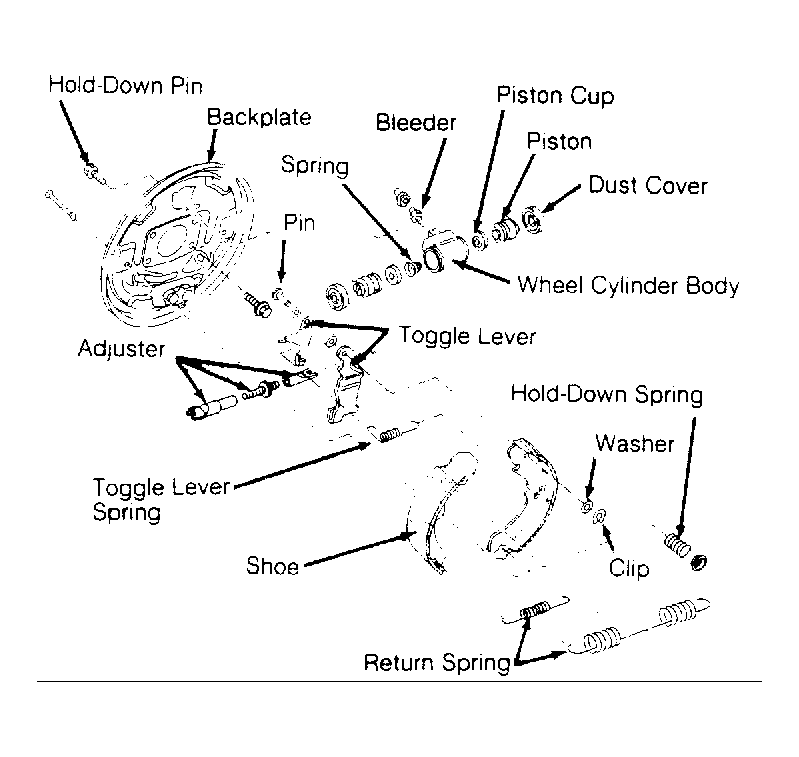

Fig 2: Exploded View of Rear Drum Brakes (Sentra & Pulsar NX XE)
G58128Courtesy of NISSAN MOTOR CO., U.S.A.

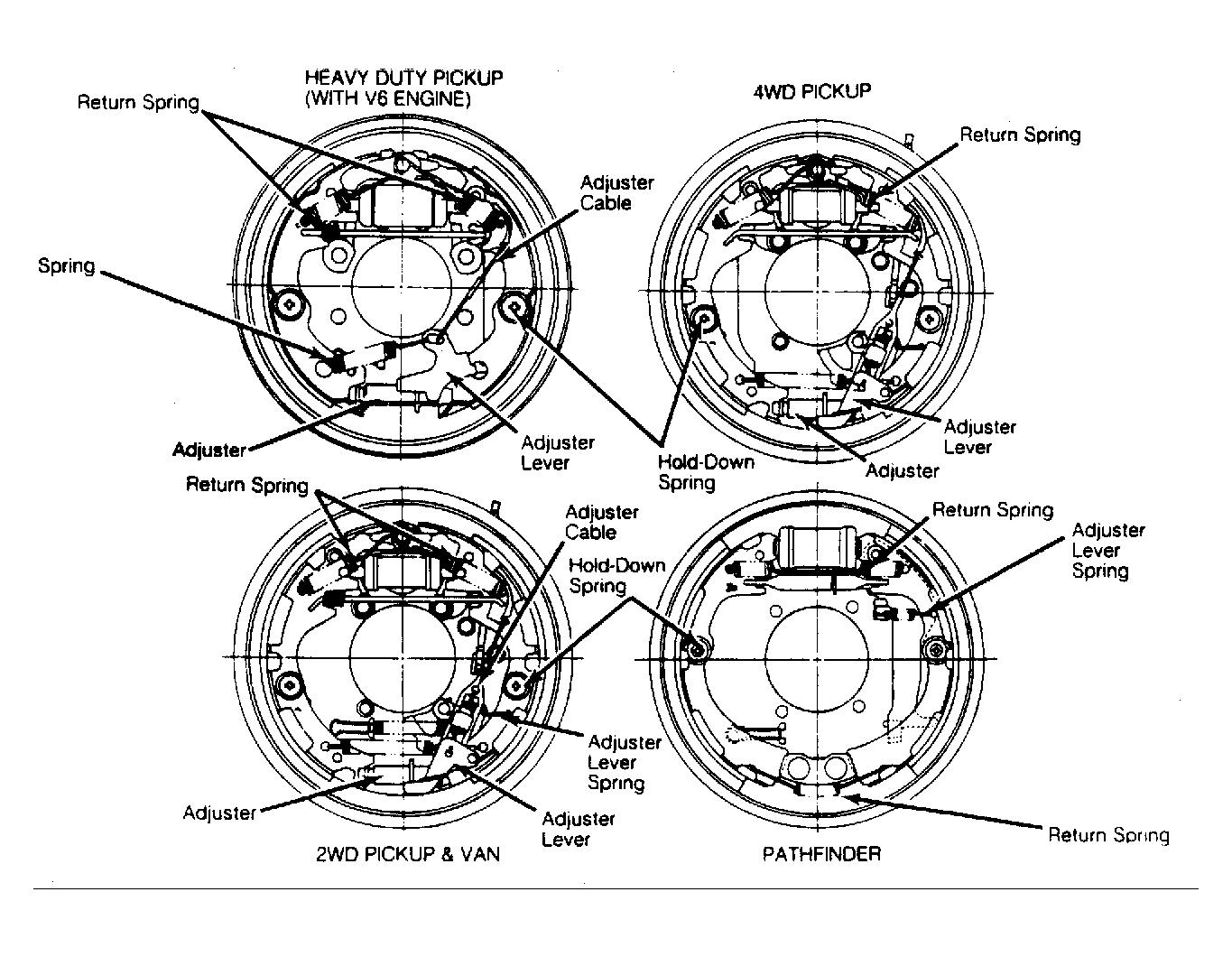

Fig 3: Installed View of Rear Brakes (Pathfinder & Pickup)
G58129Courtesy of NISSAN MOTOR CO., U.S.A.
