Master Cylinder: Disassembly

Remove reservoir caps and filters. Drain brake fluid from reservoir. Remove snap ring and stopper bolt. Withdraw stopper, primary piston assembly, secondary piston assembly and springs. See Fig 1. Remove check valve plugs. Withdraw check valve assemblies.

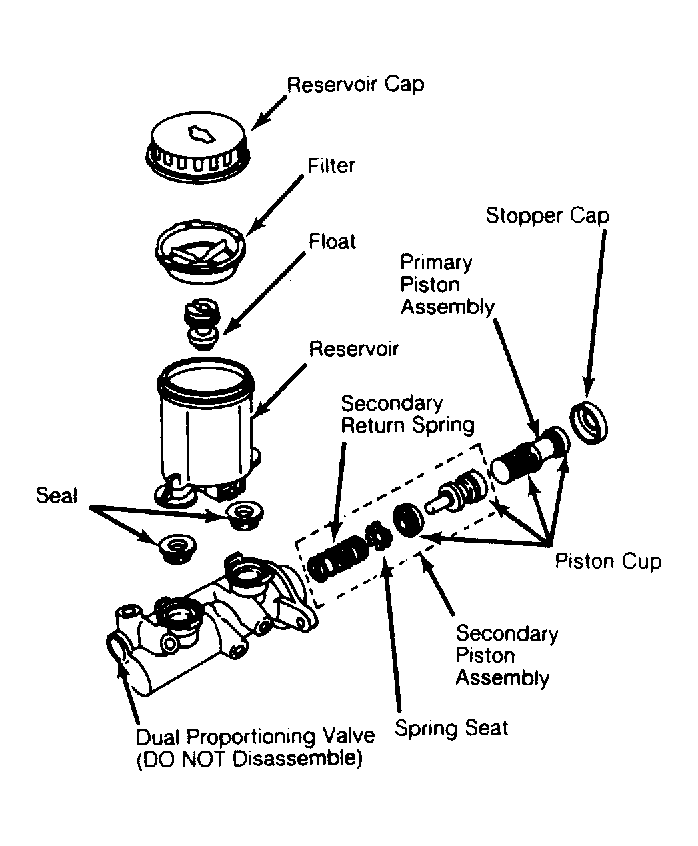

Fig 1: Exploded View of Master Cylinder Assembly

Courtesy of NISSAN MOTOR CO., U.S.A.
