Removal & Installation (Pathfinder & Pickup)

1. Disconnect battery ground. Remove steering column cover. Remove combination switch and steering wheel (if necessary). Remove front pillar garnish. Remove fuse block and disconnect multiple junction connector at firewall (if necessary). Remove cluster lid "A". See Fig 1.
2. Remove 4 screws attaching combination meter to instrument panel. Remove combination meter from instrument panel. Release electrical connectors and speedometer cable. To install, reverse removal procedure.

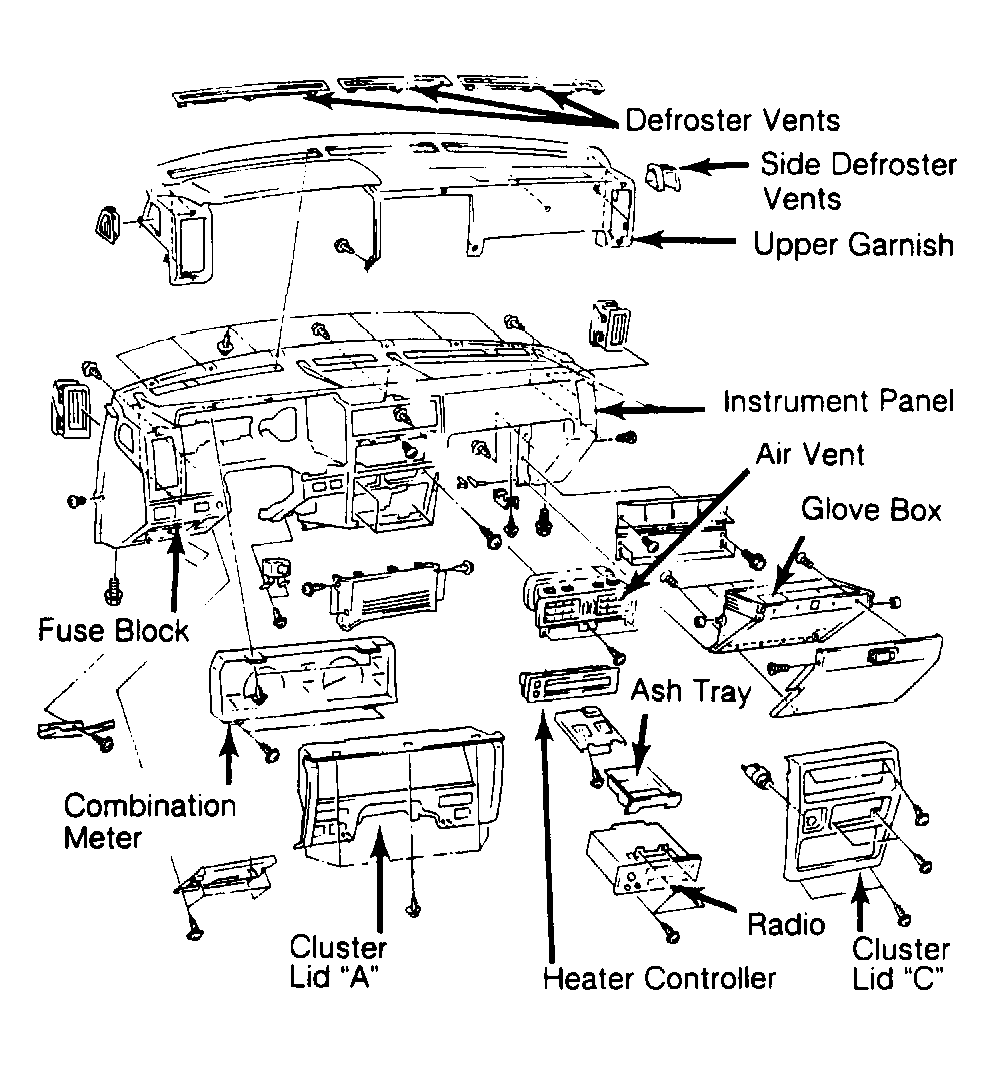

Fig 1: Exploded View of Pathfinder & Pickup Instrument Panel

Courtesy of NISSAN MOTOR CO., U.S.A.
