Removal & Installation (Maxima)

Disconnect battery ground. Remove instrument panel upper garnish and heater control trim panel. Remove instrument panel lower trim under steering column and center of instrument panel.
Remove fuse block and disconnect the multiple junction connector at firewall (if necessary). Remove the cluster covers. See Fig 1.
Remove screws attaching combination meter to instrument panel. Release electrical connectors and speedometer cable. Remove combination meter from instrument panel. To install, reverse removal procedure.

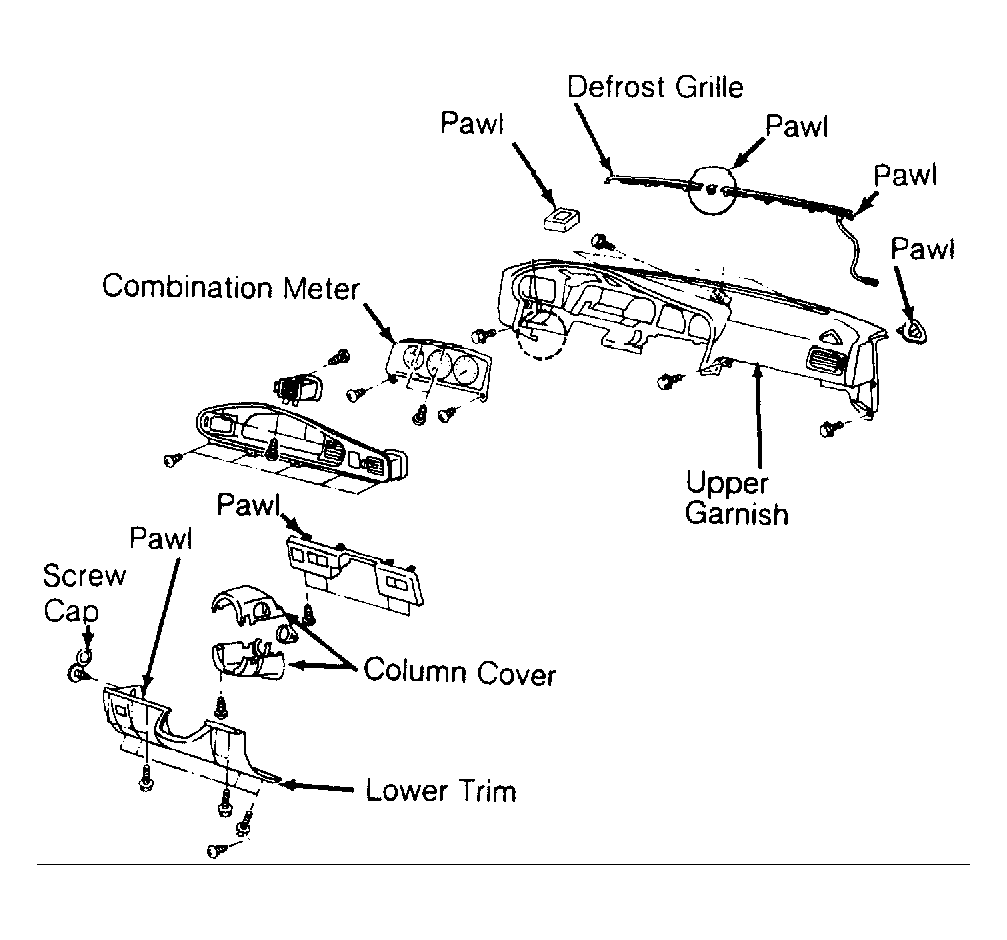

Fig 1: Exploded View of Maxima Instrument Panel

Courtesy of NISSAN MOTOR CO., U.S.A.
