Nissan-Datsun
>>
1989
>>
Sentra Base
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Gauges & Instrument Panels
>>
Removal & Installation
>>
Combination Meter
>>
Removal & Installation (240SX)
Removal & Installation (240SX)
The removal & installation procedures are not available from the manufacturer.

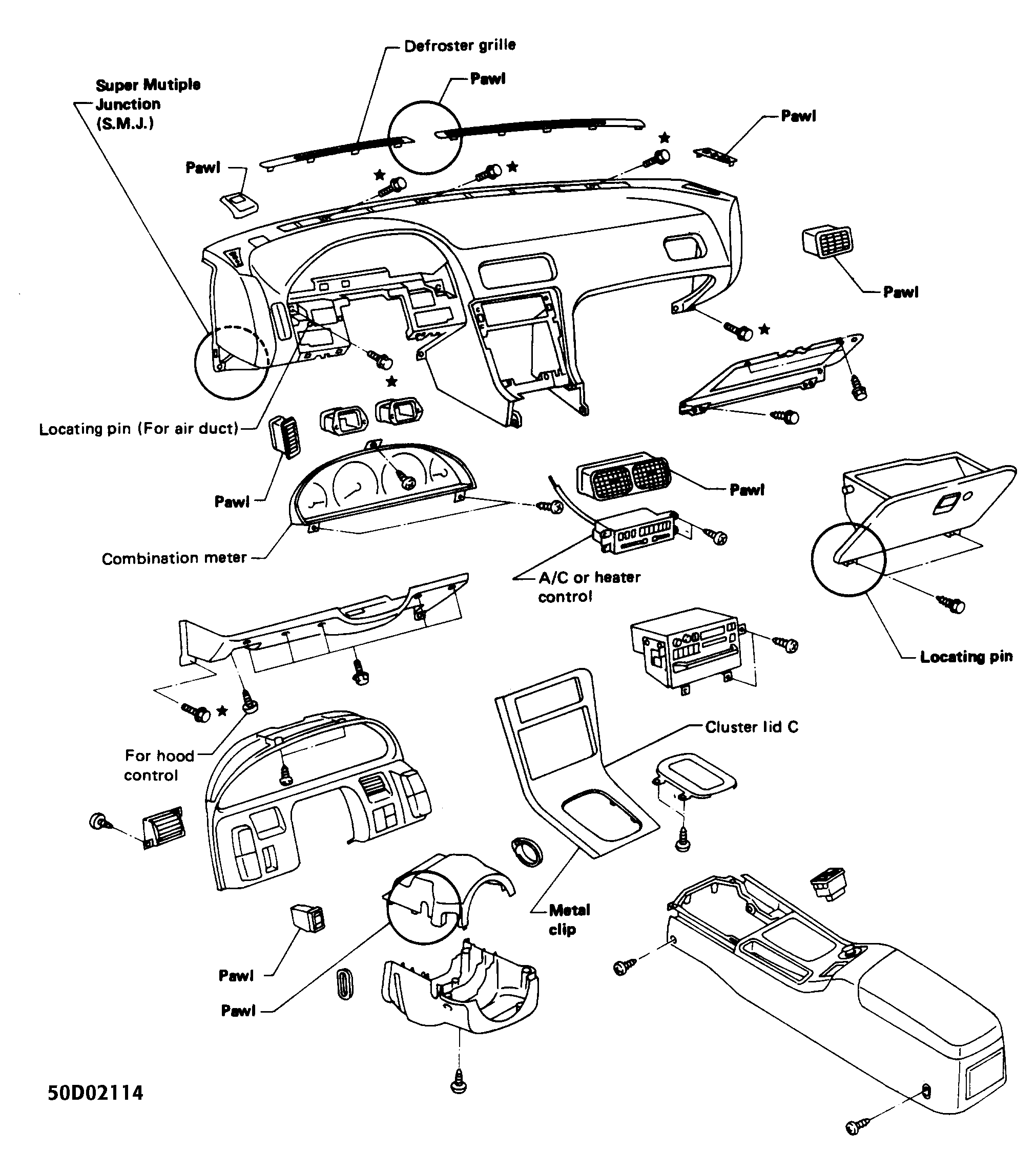

Fig 1: Exploded View of 240SX Instrument Panel
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
