Fuel Gauge Test: Van
- To check power source, turn ignition switch to "ON" position. Check voltage between terminal No. 11 and ground. If there is 12 volts, go to step 3).

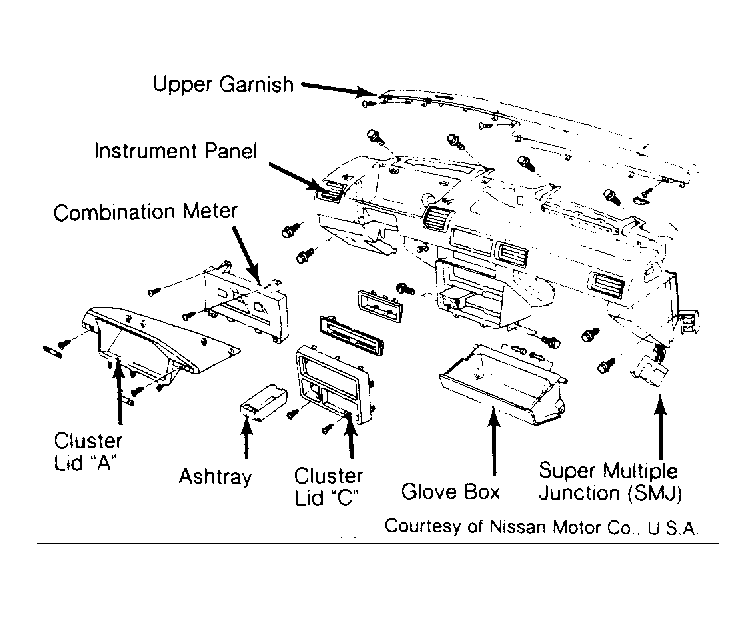

- If there is not 12 volts, check for blown fusible link or fuse. Check harness continuity between battery terminal and combination meter. Check for malfunctioning ignition relay and/or ignition switch.
- To check voltage output, measure voltage between terminal "F1" and ground. See Figure. If there is not about 8 volts, replace voltage regulator. If there is 8 volts, connect a jumper wire between terminal "F2" and ground for less than 10 seconds.
- Fuel gauge should move smoothly from "EMPTY" to "FULL". If it does not, replace fuel gauge. If it does, perform FUEL TANK SENDING UNIT TEST . If sending unit is okay, repair or replace harness between combination meter and fuel gauge unit harness.
FUEL TANK SENDING UNIT RESISTANCE (OHMS)
| Model | Full | 1/2 Full | Empty | |
|---|---|---|---|---|
| Maxima | 4-6 | 39-42 | 78-82 | |
| Pathfinder & Pickup | ||||
| (Main Gauge) | 3.8-8.5 | - | 83.6-93.6 | |
| Sub Gauge | ||||
| Small Tank | 1.3-6.3 | - | 11.8-20.5 | |
| Large Tank | 1.3-6.3 | - | 67.1-75.7 | |
| Pulsar NX Series | 9 | 30 | 89 | |
| Sentra | 8.0-8.5 | - | 88.5-91.7 | |
| Stanza | 4.5-5.5 | - | 80-83 | |
| Van | 14.4-15.6 | 34.5 | 88.5-91.7 | |
| 200SX SE & XE | 4-6 | 30-35 | 80-90 | |
| 300ZX | ||||
| Main | 6 | 30-35 | 80 | |
| Sub | 60 | - | 6 | |
