Removal And Installation

Removal - 2WD Model
- Remove propeller shaft. Service and Repair
- Insert plug into rear oil seal after removing propeller shaft.

CAUTION: Be careful not to damage spline, sleeve yoke and rear oil seal, when removing propeller shaft.

- Remove exhaust front tube A. (VG30i engine model).




- Remove shift lever.
- Support engine by placing a jack under oil pan.

CAUTION: Do not place jack under the oil pan drain plug.

- Remove transmission from engine.

WARNING: Support Manual Transmission, while removing it.

Removal - 4WD Model




- Remove front and rear propeller shafts. Service and Repair
- Insert plug into rear oil seal of transfer after removing propeller shaft.

CAUTION: Be careful not to damage spline, sleeve yoke and rear oil seal of transfer, when removing propeller shaft.

- Remove exhaust front tube A. (VG30i engine model).
- Remove torsion bar springs. - Refer to Removal and Installation of lower link. Then remove second crossmember.




- Remove shift lever of transmission and transfer.
- Support engine by placing a jack under oil pan.

CAUTION: Do not place jack under the oil pan drain plug.

- Remove transmission with transfer from engine.

WARNING: Support Manual Transmission with transfer, while removing it.

Installation

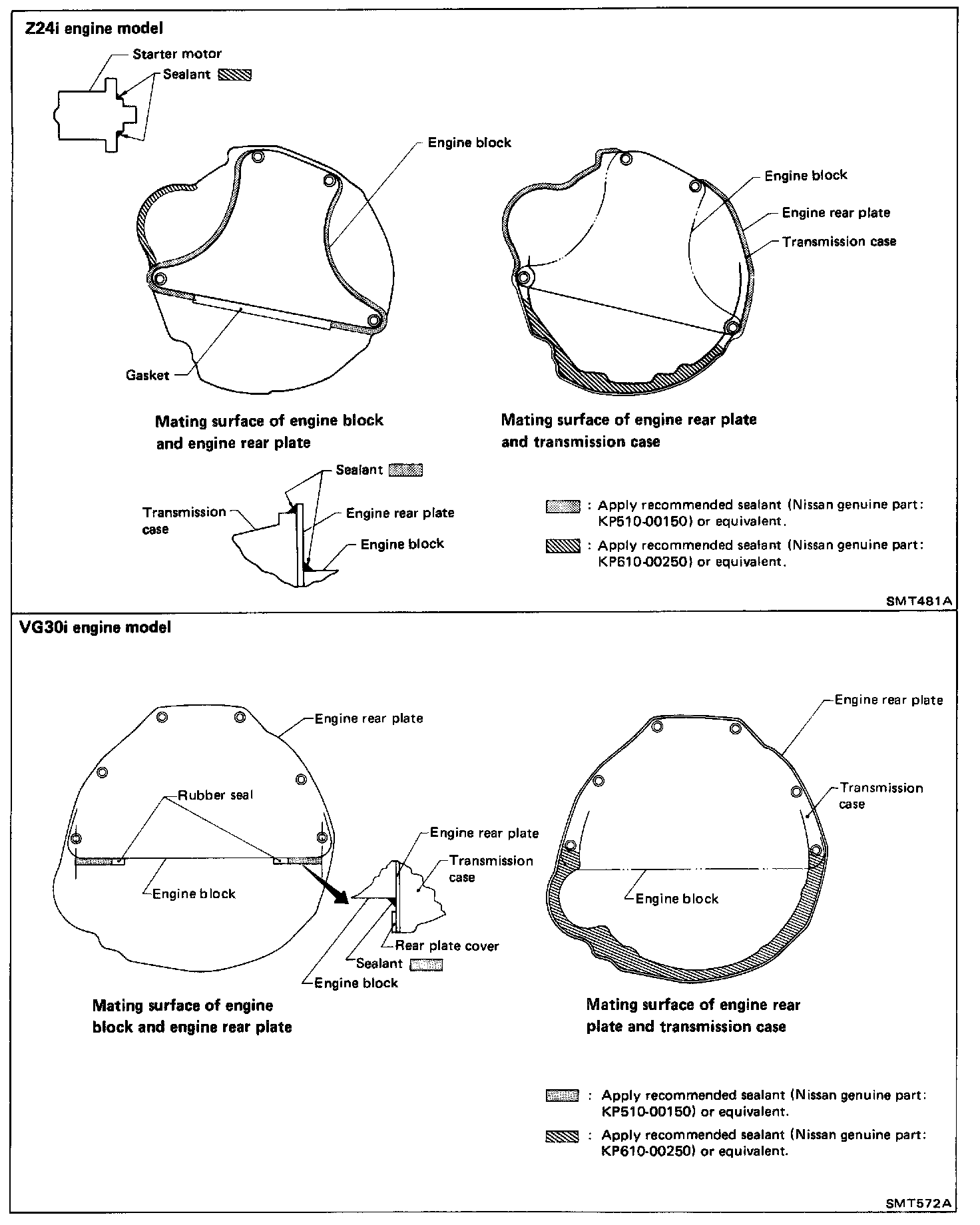

- Apply sealant as below. - 4WD model







- Tighten bolt securing transmission.
- Z24i engine model







- VG30i engine model
