With FS5W71C & F4W71C Transmission

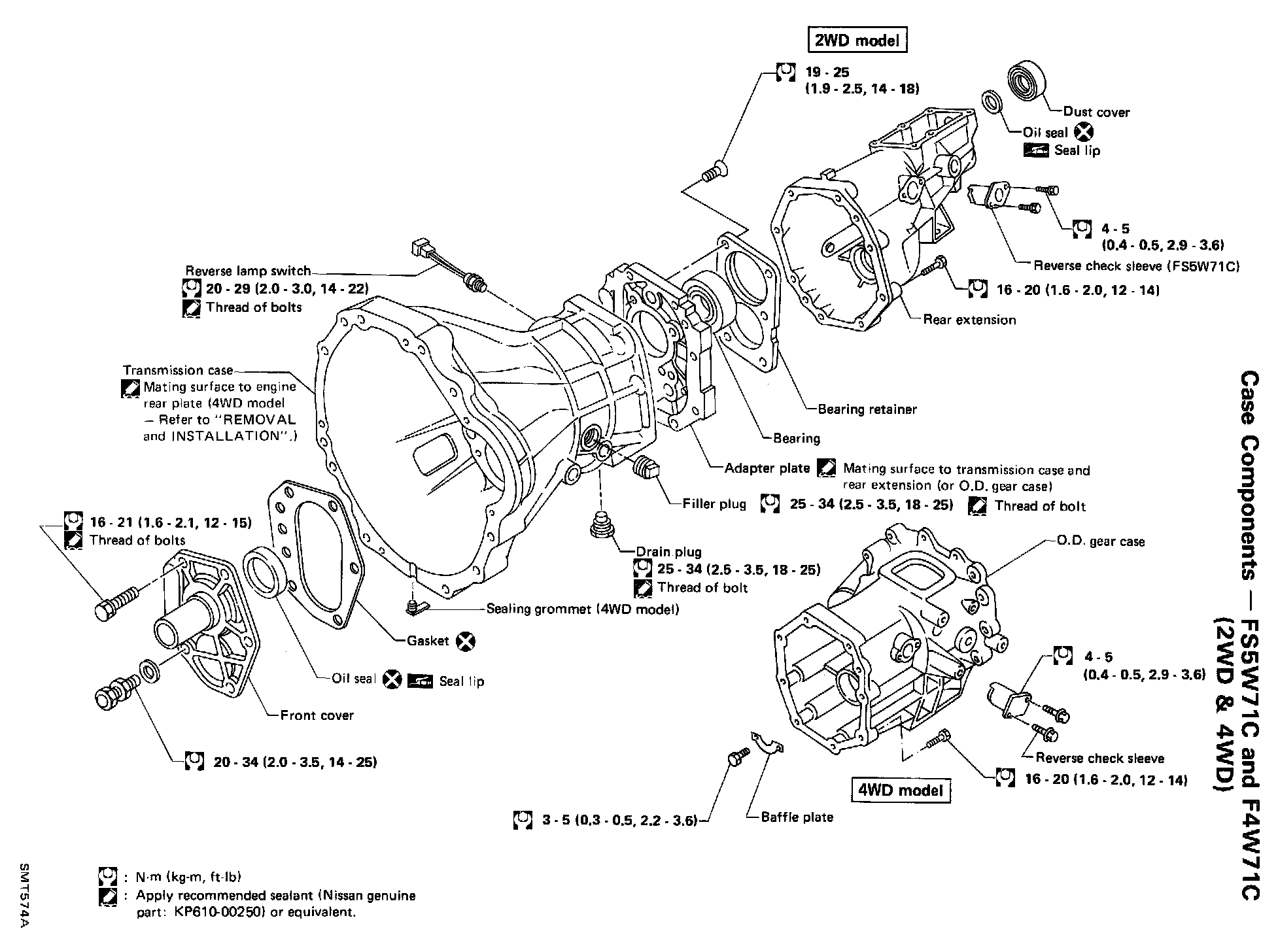

Case Components - FS5W71C And F4W71C (2WD And 4WD):

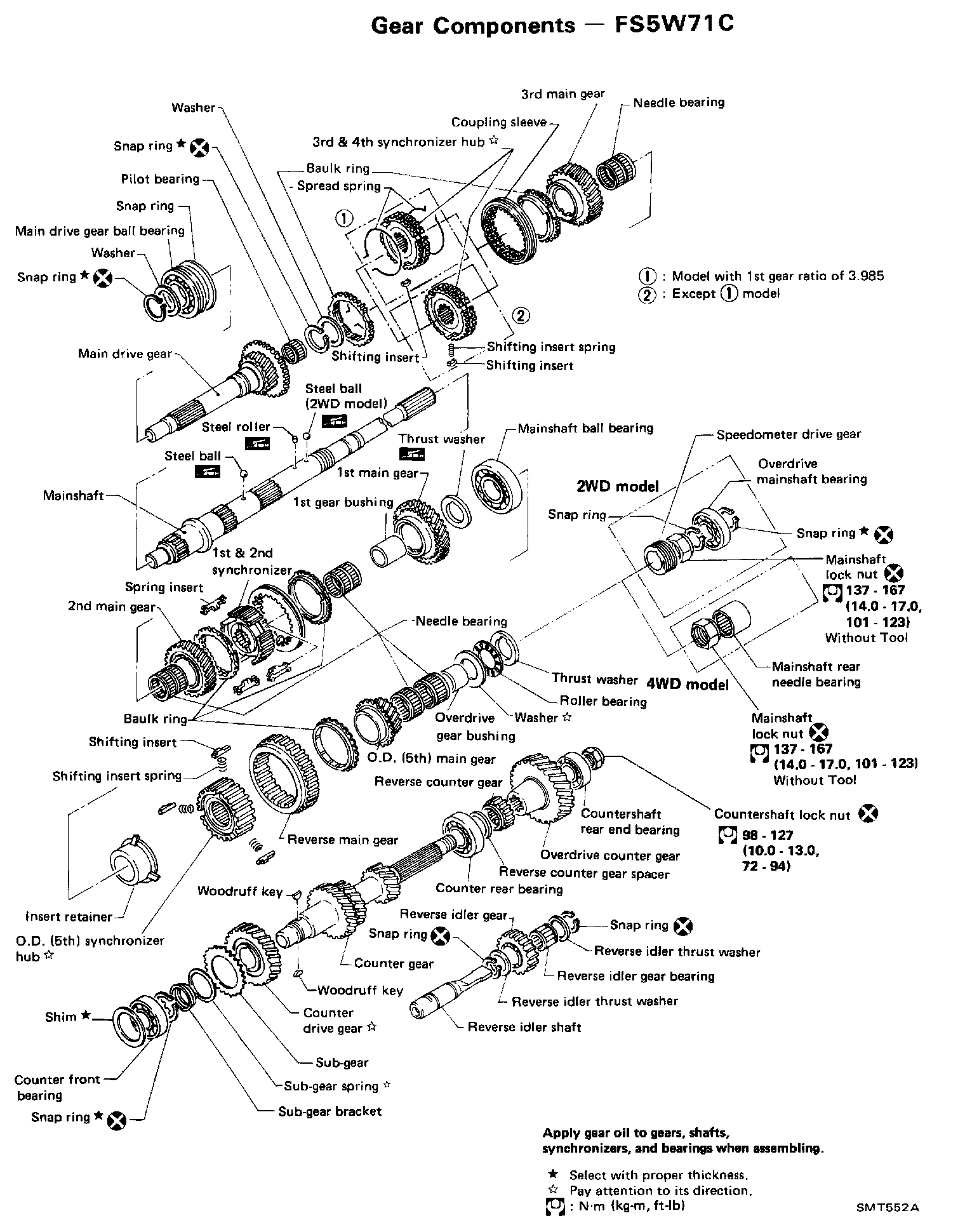

Gear Components - FS5W71C:

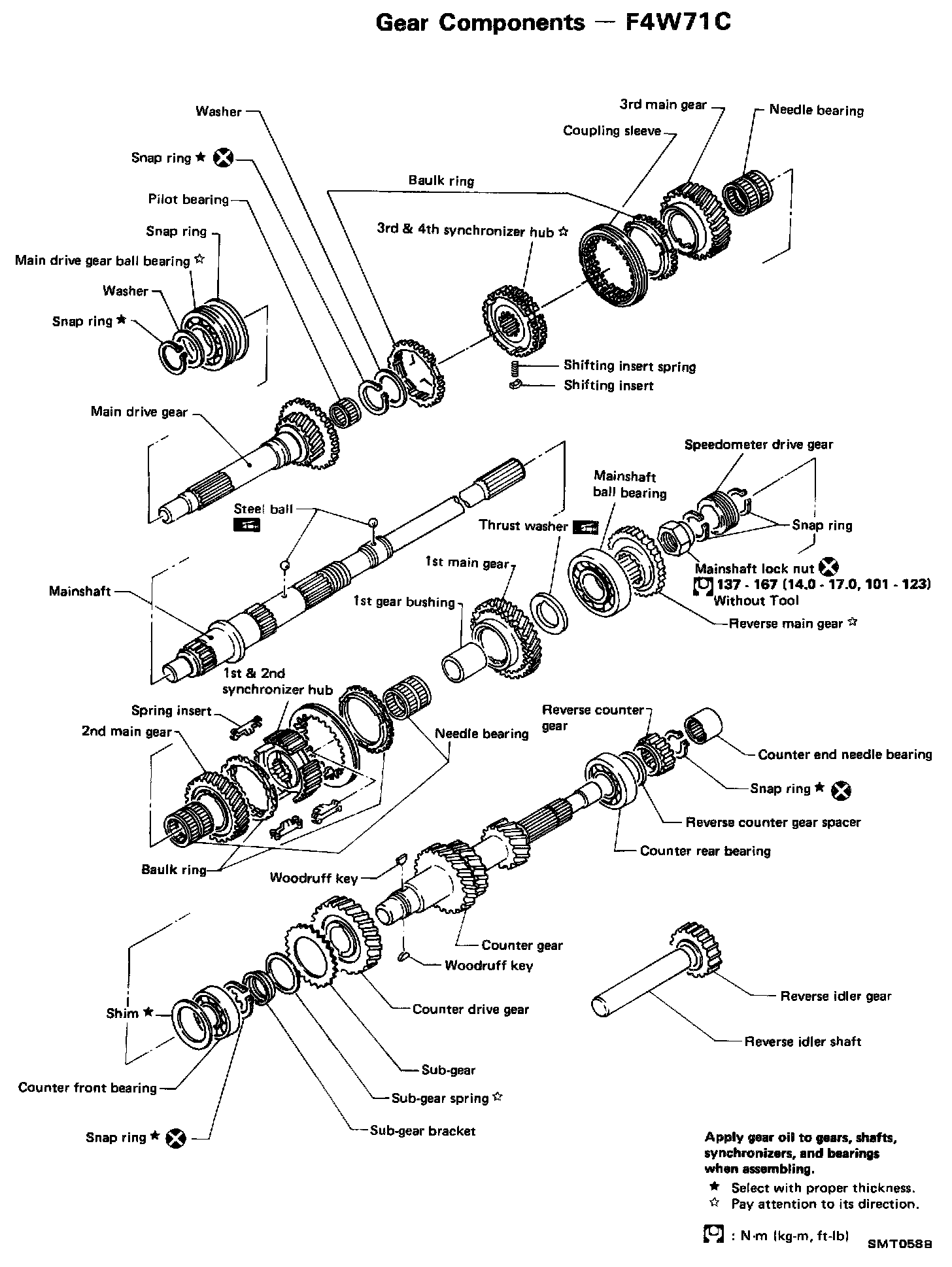

Gear Components - F4W71C:

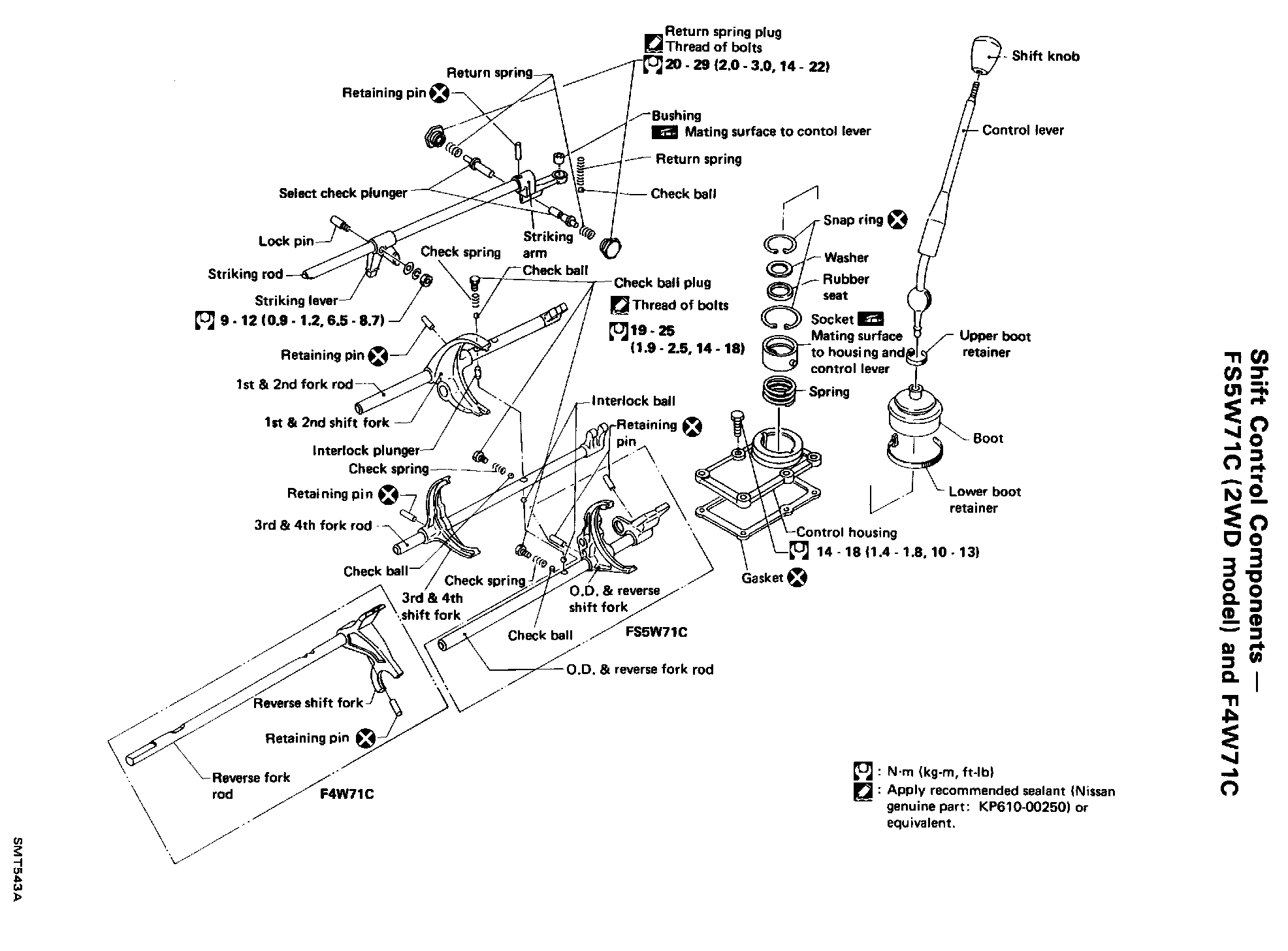

Shift Control Components - FS5W71C (2WD Model) And F4W71C:

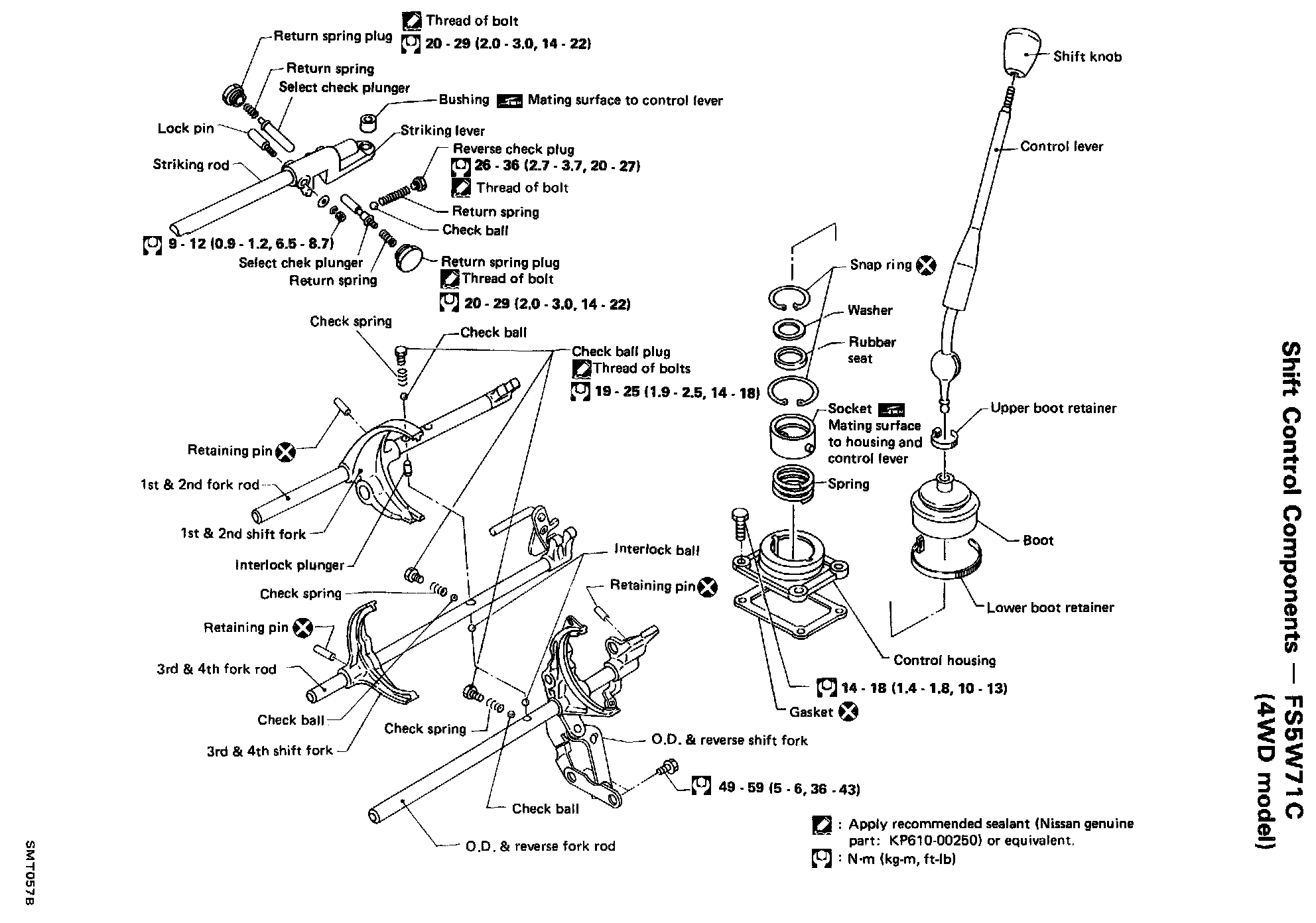

Shift Control Components - FS5W71C (4WD Model):
