With FS5W71C & F4W71C Transmission

Shift Control Components

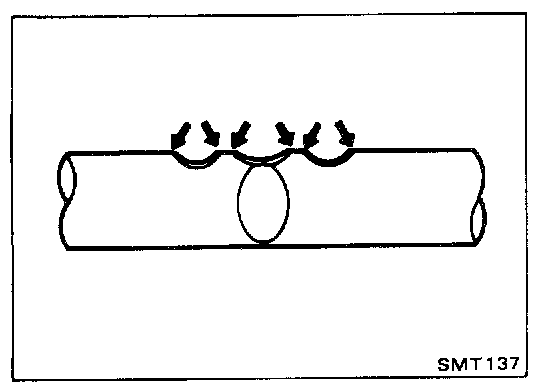

- Check contact surface and sliding surface of fork rods for wear, scratches, projections or other damage.

GEARS AND SHAFTS







Gear Components

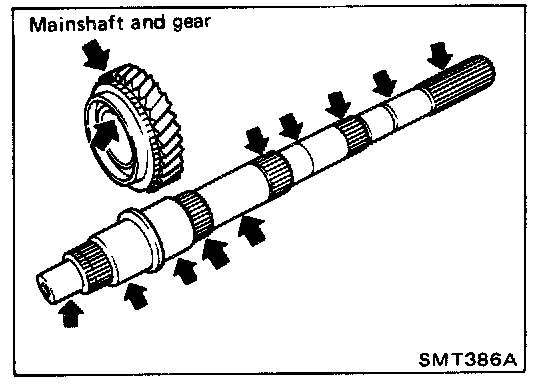

- Check shafts for cracks, wear or bending.

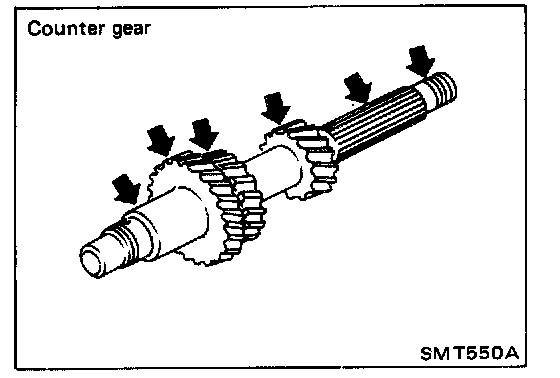

- Check gears for excessive wear, chips or cracks.

SYNCHRONIZERS

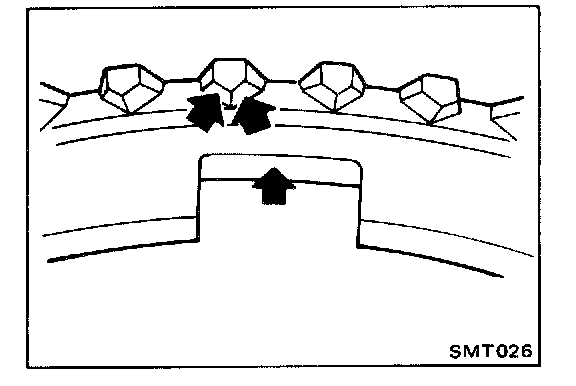

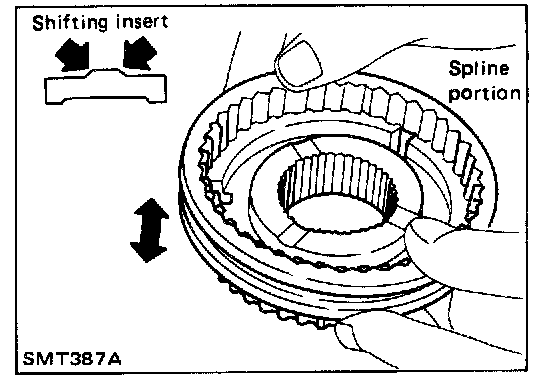

- Check spline portion of coupling sleeves, hubs and gears for wear or cracks.
- Check baulk rings for cracks or deformation.
- Check shifting inserts for wear or deformation.
- Check insert springs for deformation.

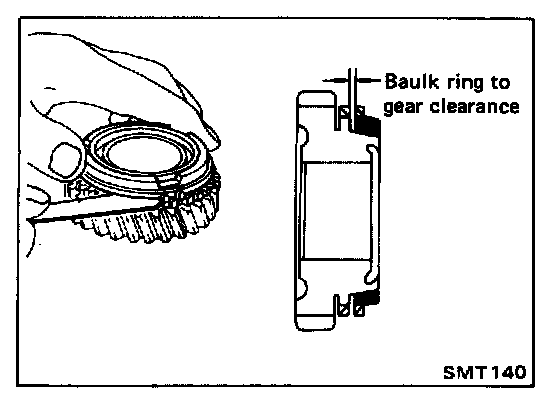

Clearance Between Baulk Ring And Gear:

- Measure clearance between baulk ring and gear.




BEARINGS

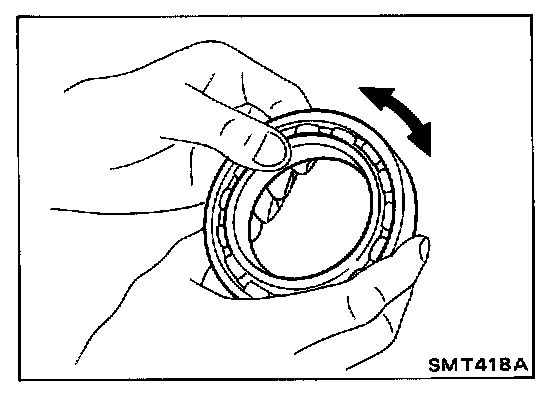

- Make sure bearings roll freely and are tree from noise, crack, pitting or wear.
