Removal

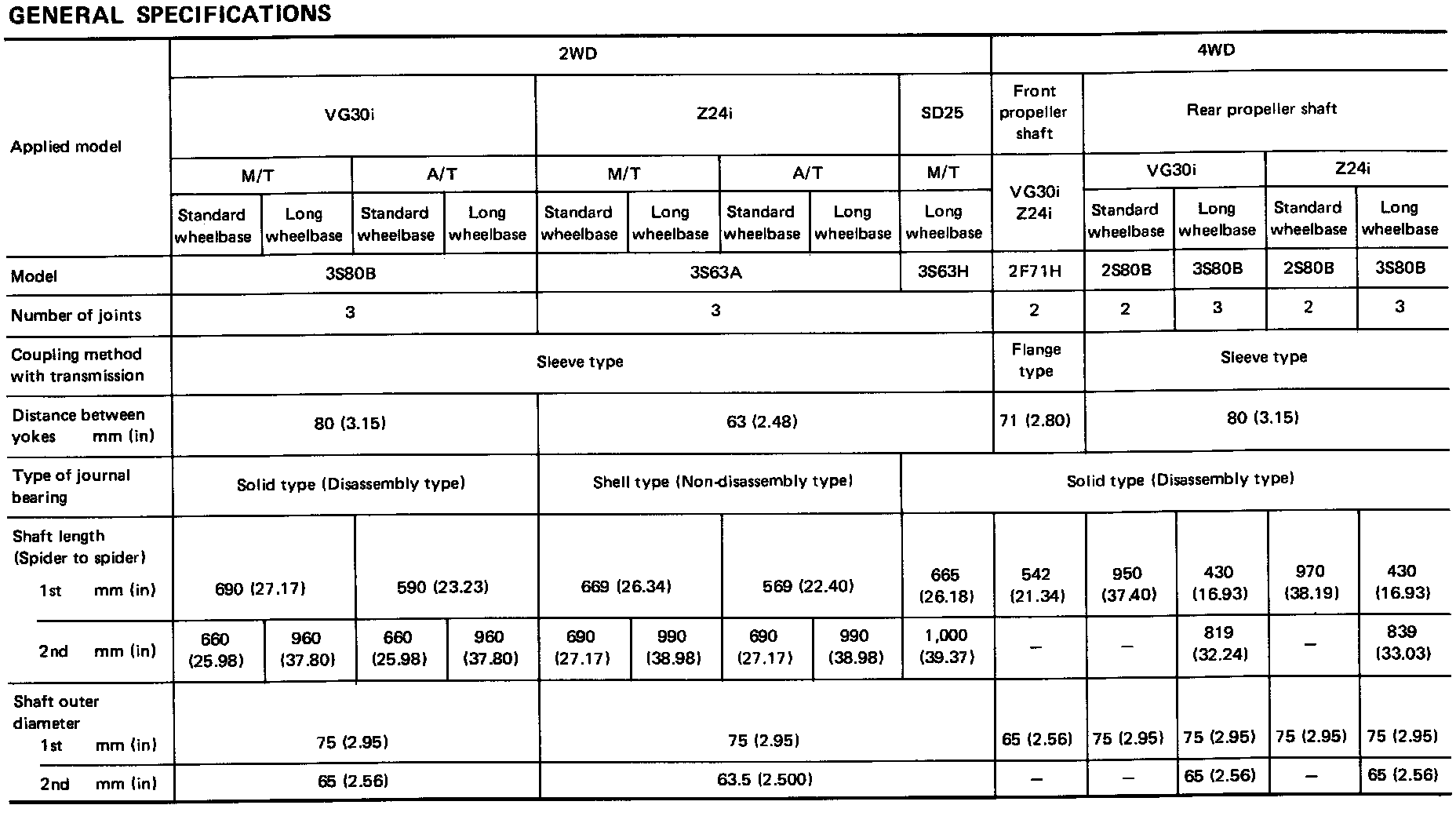

Driveshaft Application Chart






Drive Shaft Exploded Views

Front Propeller Shaft (Model 2F71H):

Rear Propeller Shaft (Model 2S80B):

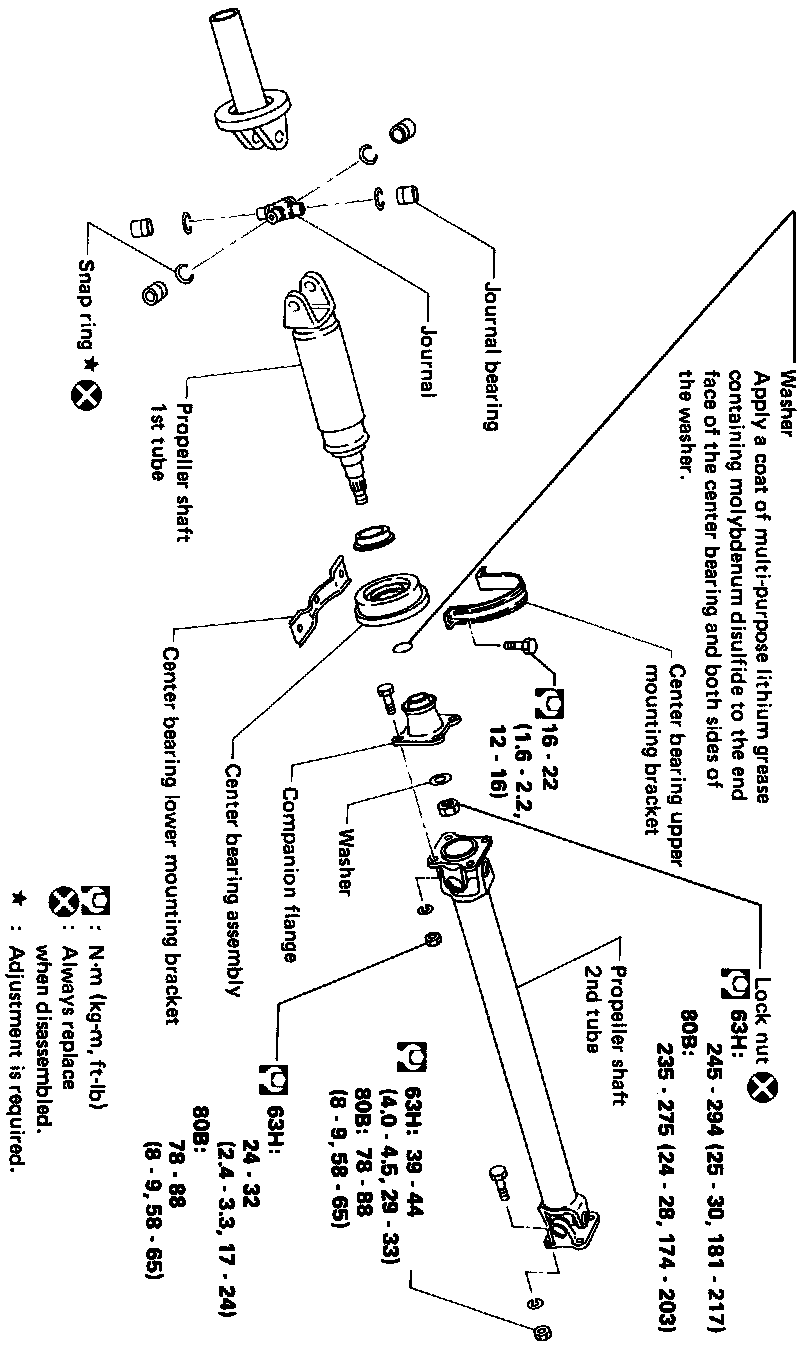

Rear Propeller Shaft (Model 3S63H And 3S80B):

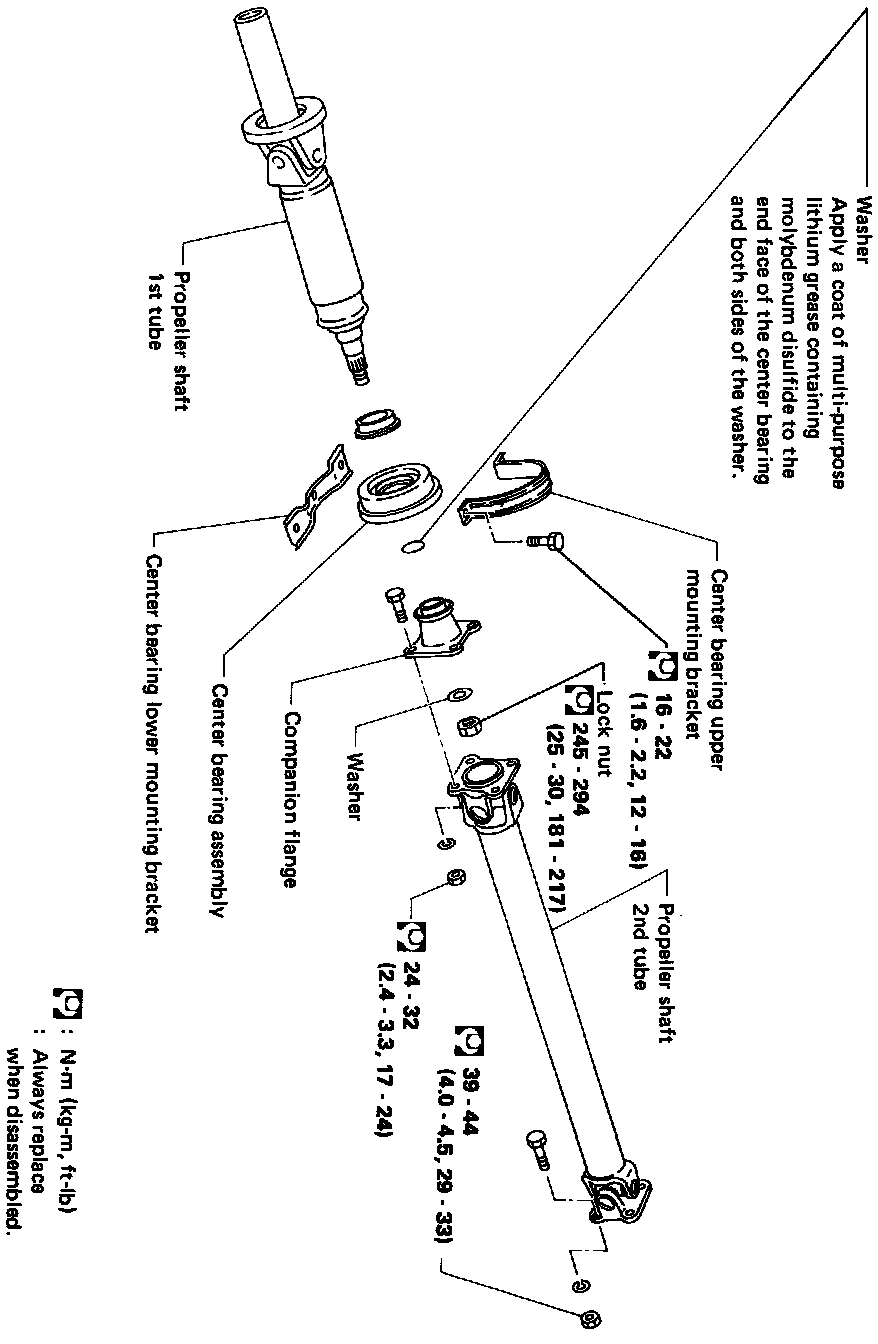

Rear Propeller Shaft (Model 3S63A):

1. Put match marks on flanges and separate propeller shaft from final drive.






2. Draw out propeller shaft from transmission and plug up rear end of transmission rear extension housing.
