Clutch Pedal Assembly: Adjustments

HYDRAULIC OPERATED CLUTCH

The clutch hydraulic system must be bled whenever a clutch line has been disconnected or when air has entered the system. The bleed valve is located on the clutch operating cylinder.

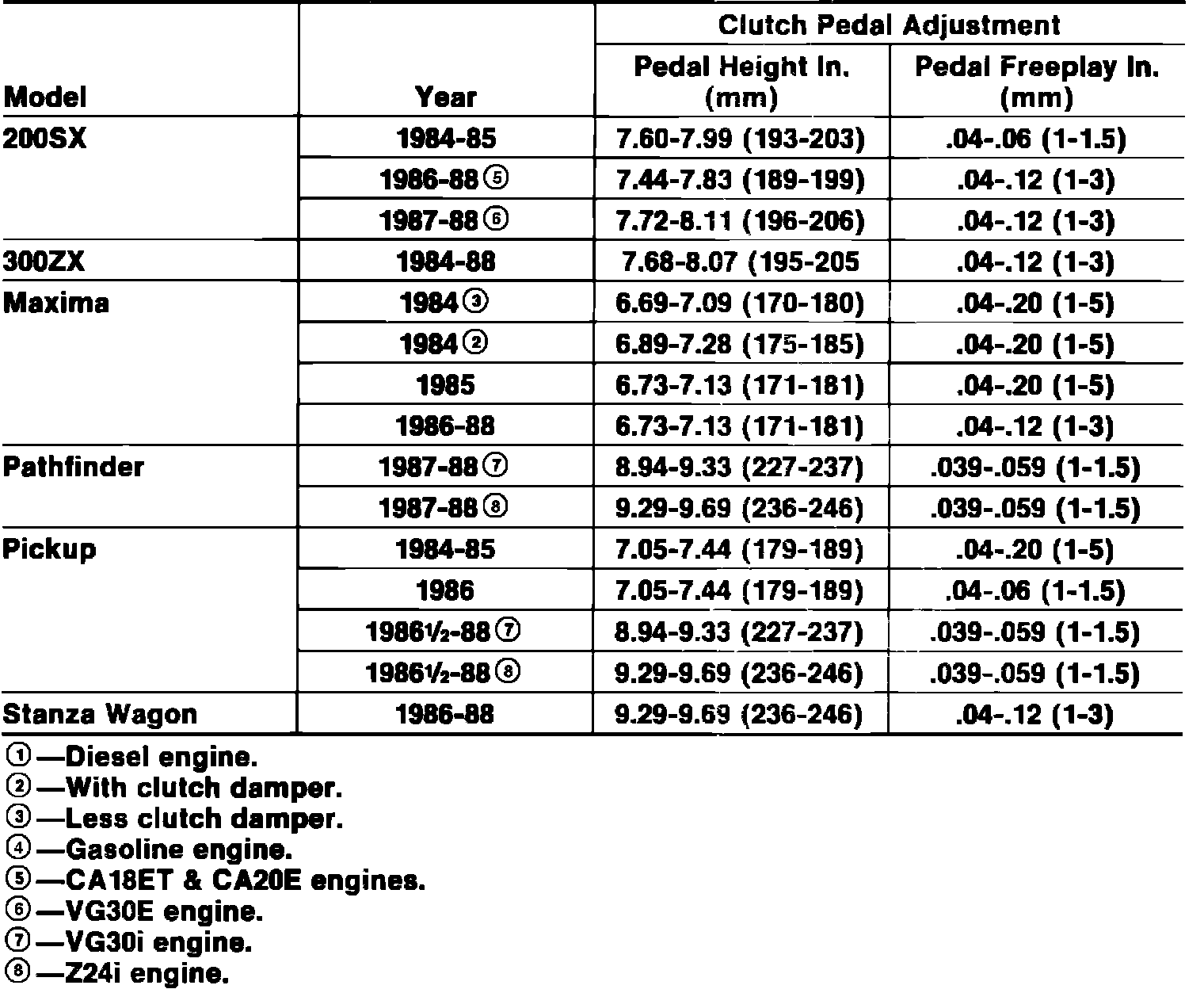

Fig. 12 Clutch pedal height & freeplay specifications.:

SPECIFICATION TABLE

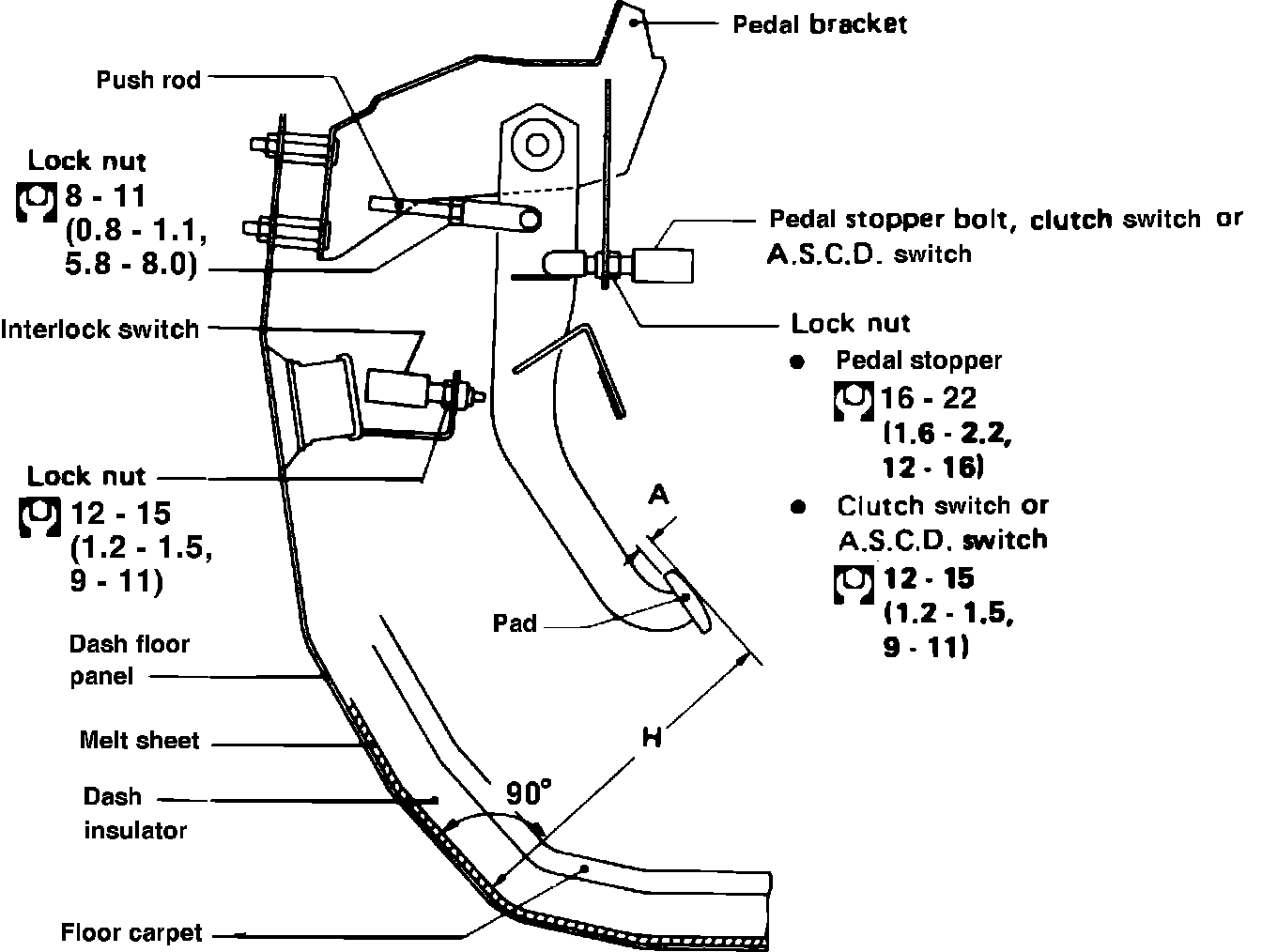

Fig. 13 Clutch pedal free travel & height adjustment. 1986-1/2 - 88 Pickup & 1987-88 Pathfinder:

1. Adjust clutch pedal height, dimension ``H'' in Fig. 13, to specifications using the pedal stopper or clutch switch.
2. Adjust clutch pedal freeplay, dimension ``A'' in Fig. 13, to specifications using the pushrod.

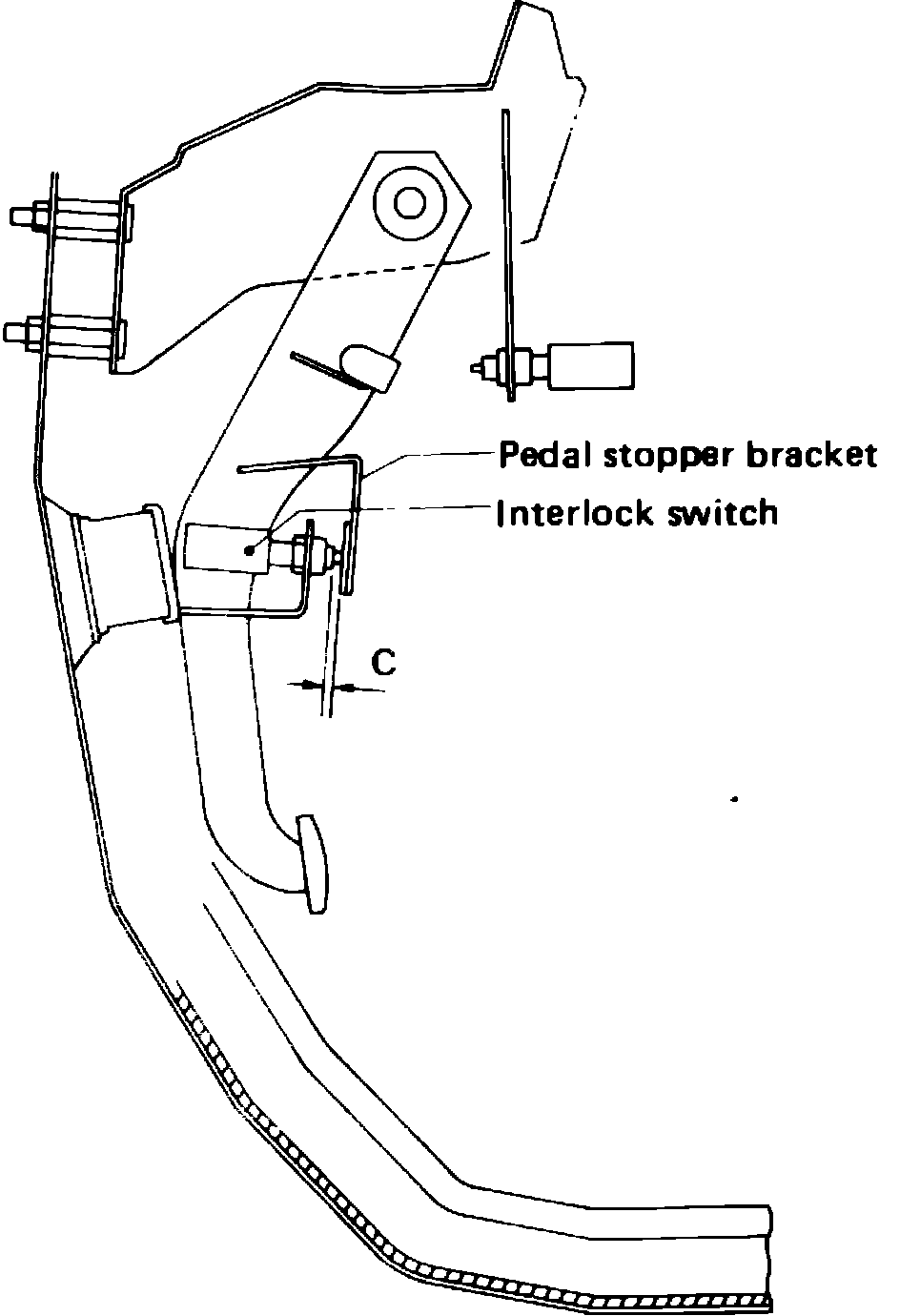

Fig. 14 Clutch interlock switch adjustment. 1986-1/2 - 1988 Pickup & 1987-88 Pathfinder & Stanza:

3. Adjust dimension ``C,'' Fig. 14, to .012-.039 inch with clutch pedal fully depressed.
