Shift Linkage: Adjustments

Manual Control Linkage Adjustment: RE401A

NOTE:
Move selector lever from "P" range to "1" range.
- You should be able to feel the detents in each range.
If the detents cannot be felt or the pointer indicating the range is improperly aligned, the linkage needs adjustment.

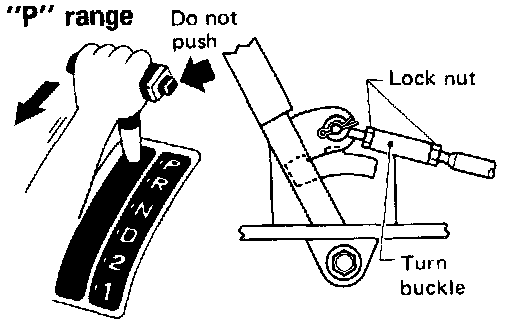

1. Place selector lever in "P" range.

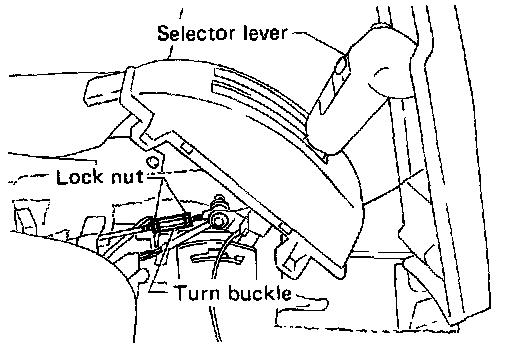

2. Loosen lock nuts.





3. Tighten turn buckle until aligns with inner cable, pulling selector lever toward "R" range side without pushing button.
4. Back off turn buckle 1 turn and tighten lock nuts to the specified torque.

Lock nut 4.4 - 5.9 N.m (0.45 - 0.60 kgm, 3.3. 4.3 ft.lb)

5. Move selector lever from "P" range to "1" range.
- Make sure that selector lever can move smoothly.
