Seals and Gaskets: Service and Repair

Rear Oil Seal Replacement:
1. Remove transfer case from vehicle.

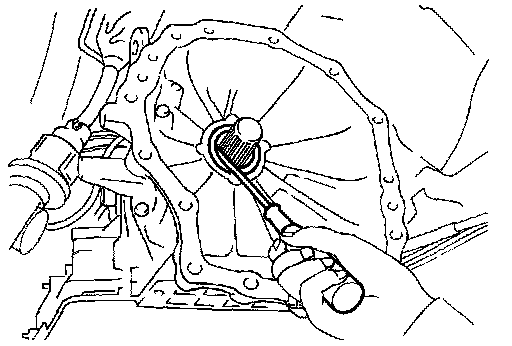

2. Remove rear oil seal.

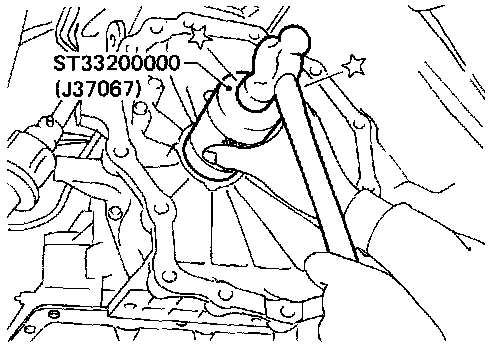

3. Install rear oil seal.
- Apply A.T.F. before installing.
4. Reinstall any part removed.
