Park Gear: Service and Repair

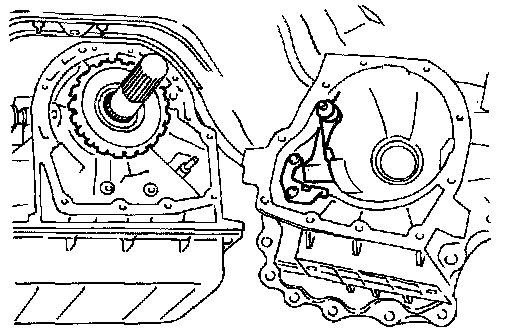

Parking Components
1. Remove transfer case from vehicle.

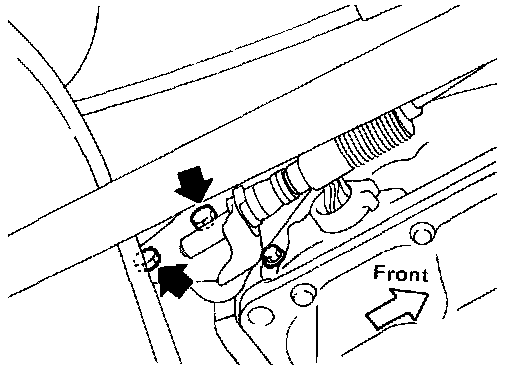

2. Remove manual control linkage bracket from adapter case.





3. Remove adapter case from transmission case.
4. Replace parking components if necessary.
5. Reinstall any part removed.
- Always use new sealing parts.
