Tools - Incorrect Tool Number Manual Updated

9218nissan01

Models:
1987 & 1988 Truck
Pathfinder

Section:
Transfer Case

Classification:
TF88-001

Bulletin No.:
TS88-004

Date:
January 25, 1988


INCORRECT TOOL NUMBER


APPLIED MODEL:
1987 & 1988 Truck/Pathfinder (D21 & WD21)

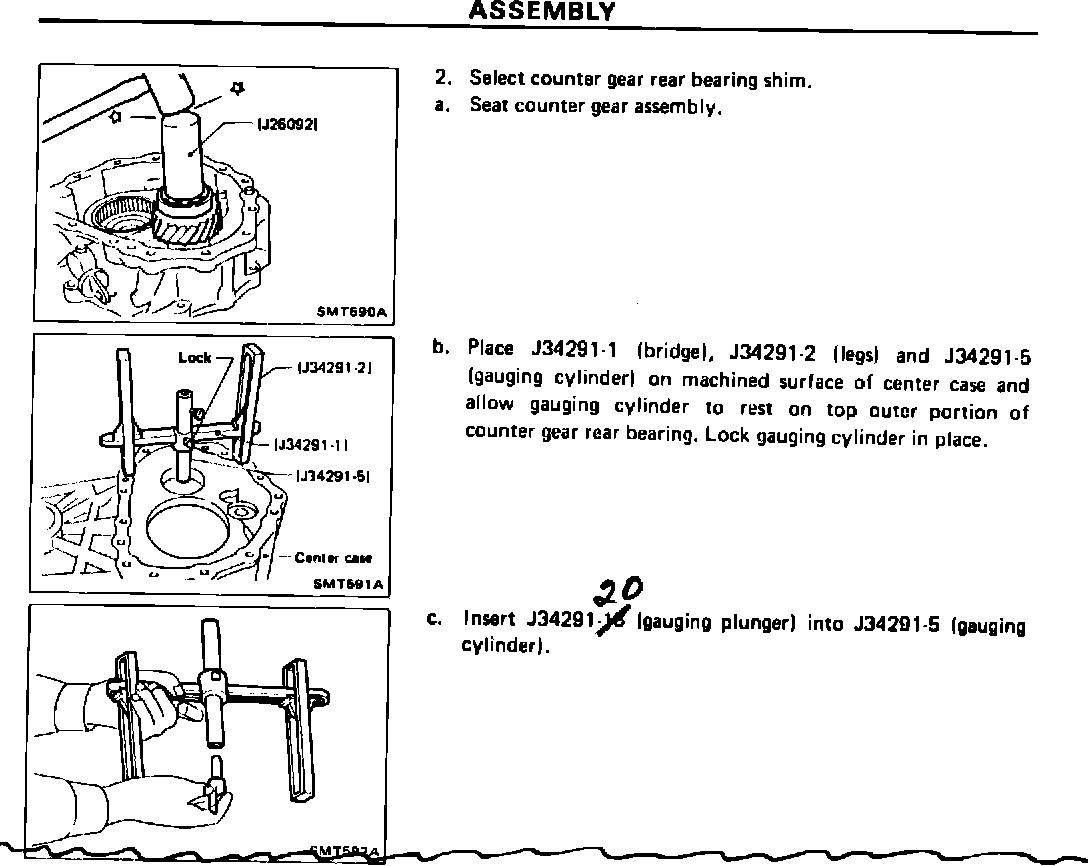

On page TF-28 of the 1987 and 1988 Truck/Pathfinder Service Manuals, item "c" refers to a J34291-15 gauging plunger. The correct plunger number is J34291-20. Please make note of this change in your copies of the 1987 and 1988 Truck/Pathfinder Service Manuals as shown. This correction was incorporated in the 2nd printing of the 1988 Service Manual.
