Rear Final Drive - Manual Correction

88nissan04

Classification: Section: Rear Axle
RA88-002 & Suspension
Reference:
TECHNICAL BULLETIN TS88-063
Models:
1988 Truck/Pathfinder (D21/WD21)
Date:
April 21, 1988
REAR FINAL DRIVE



APPLIED MODEL: 1988 Truck/Pathfinder (D21/WD21)

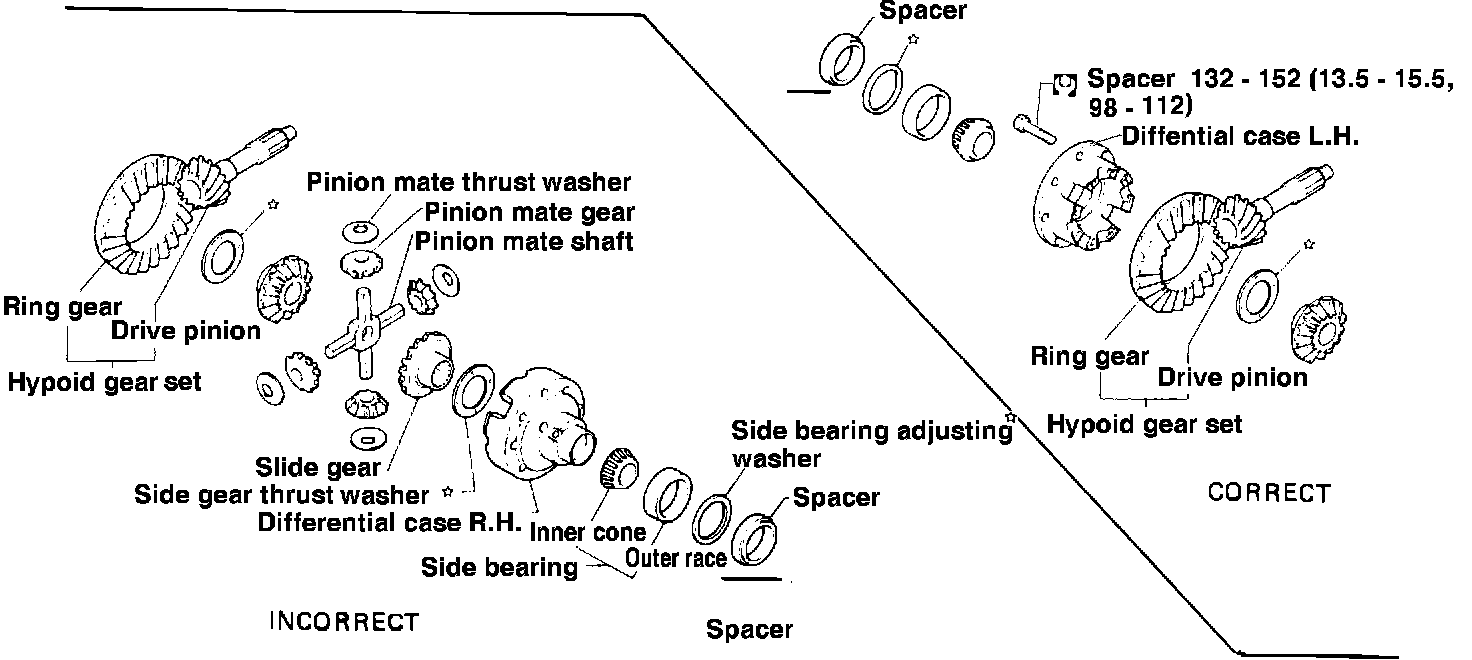

The illustration on page PD-81 of the 1988 Truck/Pathfinder Service Manual (July 1987 (05) and January 1988 (06) printings) is incorrect. The spacer should be on the left side as shown below.

=�Q:

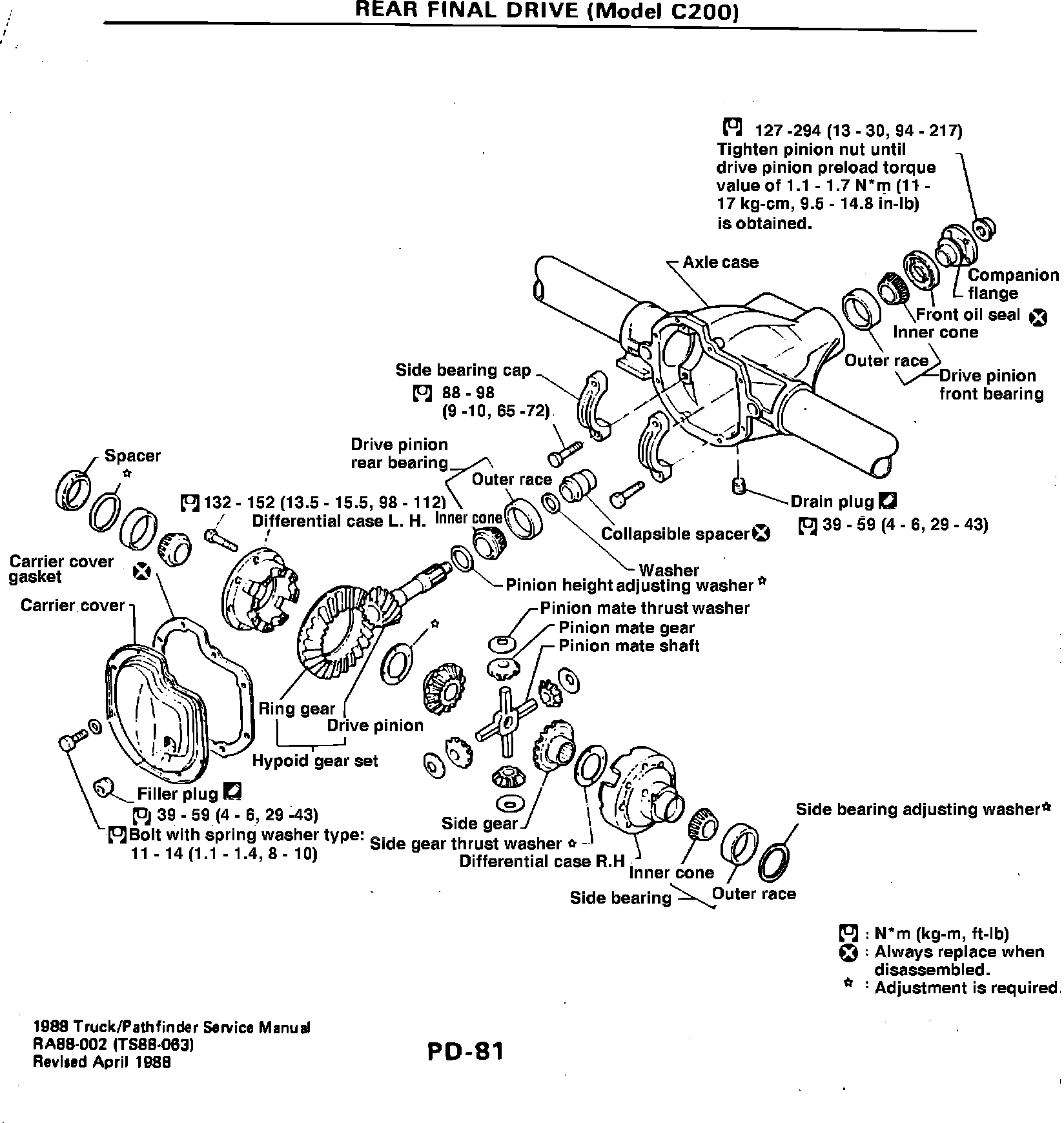

The attached page shows the correct illustration. Please paste it in your copy of the subject Service Manual.
