Radio - Identification

Models: 1988 Models

Section: Electrical System

Classification: EL87-017A

Bulletin No.: TSB7-140A

Date: November 9, 1987

RADIO IDENTIFICATION, 1988 MODELS

APPLIED MODELS:
All 1988 Nissan Models

INTRODUCTION

This bulletin contains radio identification information for all 1988 Nissan models. Use this bulletin to identify the component manufacturer and model number when ordering an exchange unit under the Direct Dealer/Manufacturer Radio Warranty Exchange Program.

IDENTIFICATION PROCEDURES

The 1988 Nissan audio components are supplied by three (3) radio manufacturers. When ordering an exchange unit, it is important to properly identify the manufacturer and model number of the incident unit. This will ensure that the exchange unit shipped from the radio manufacturer will be the same brand and model as the incident unit.

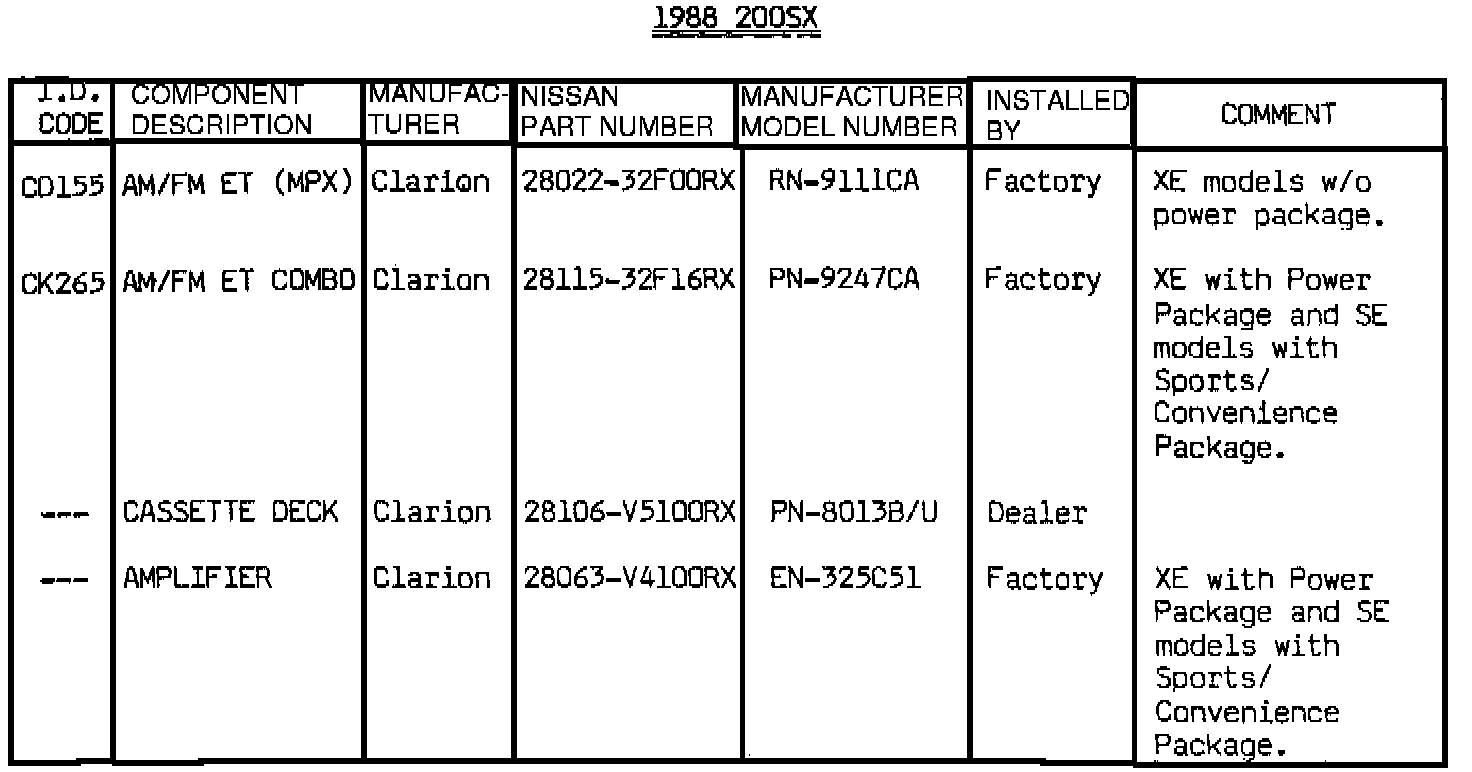

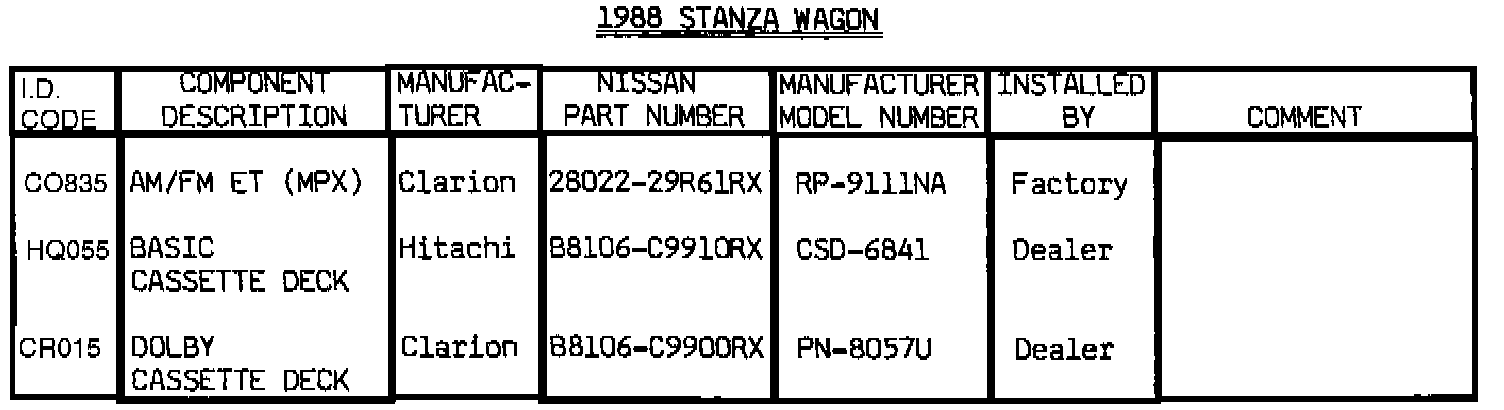

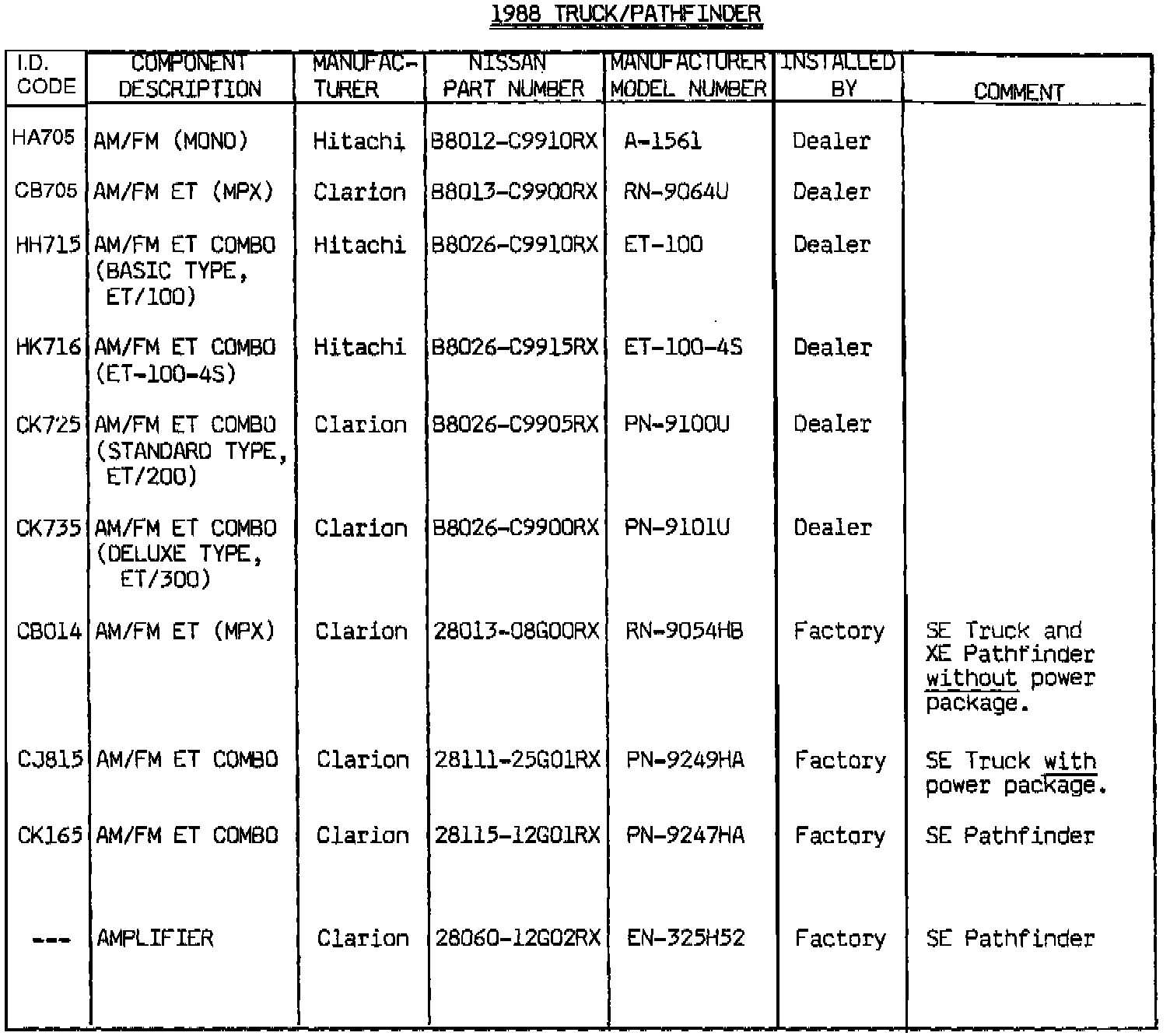

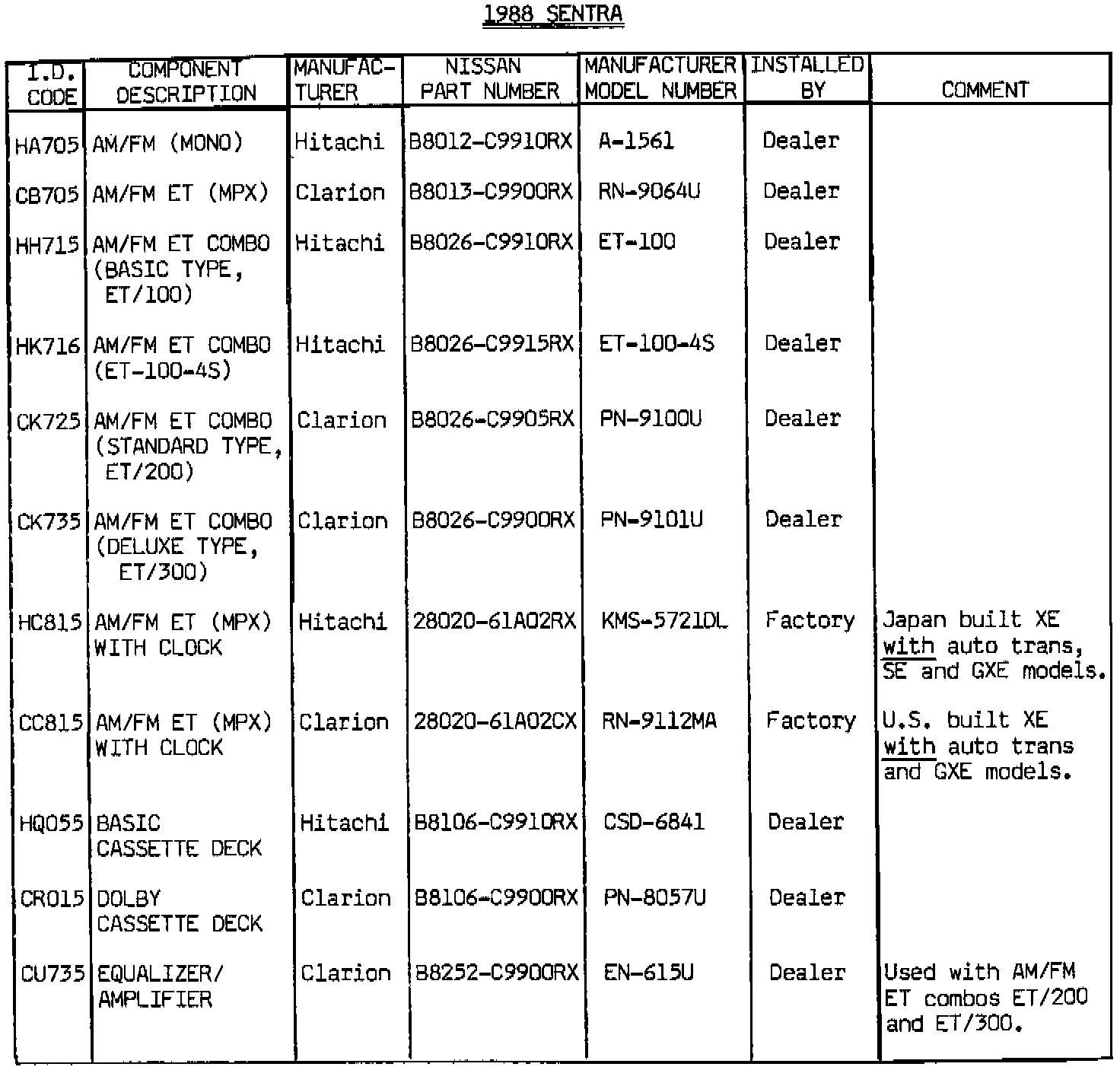

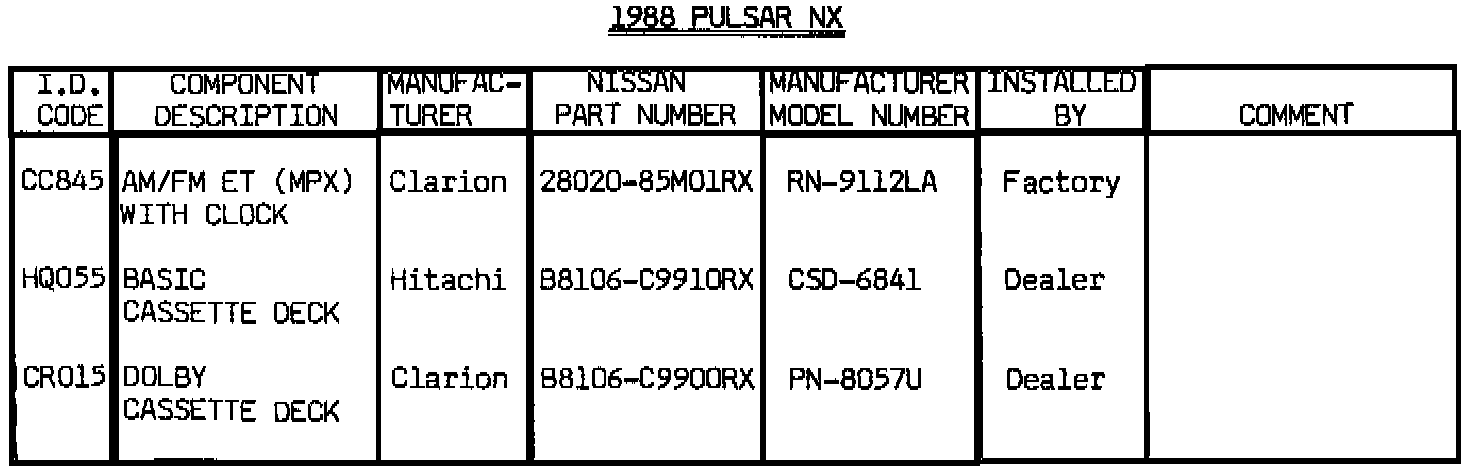

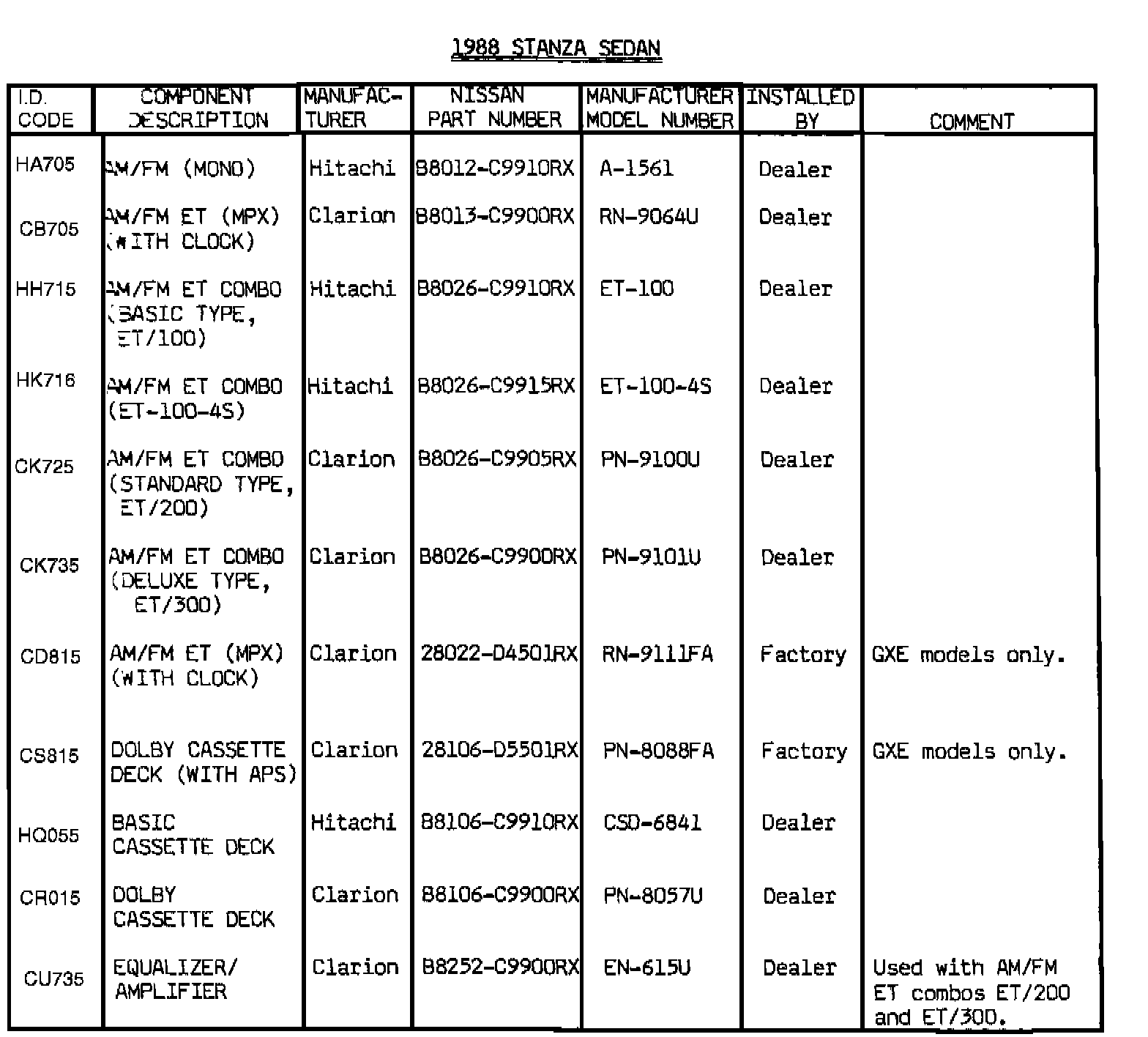

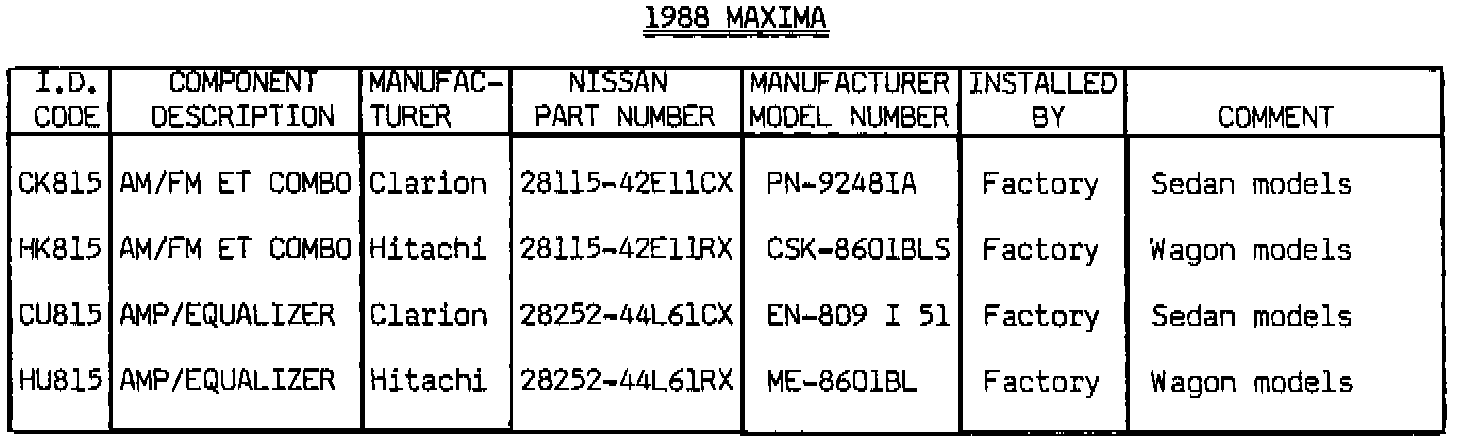

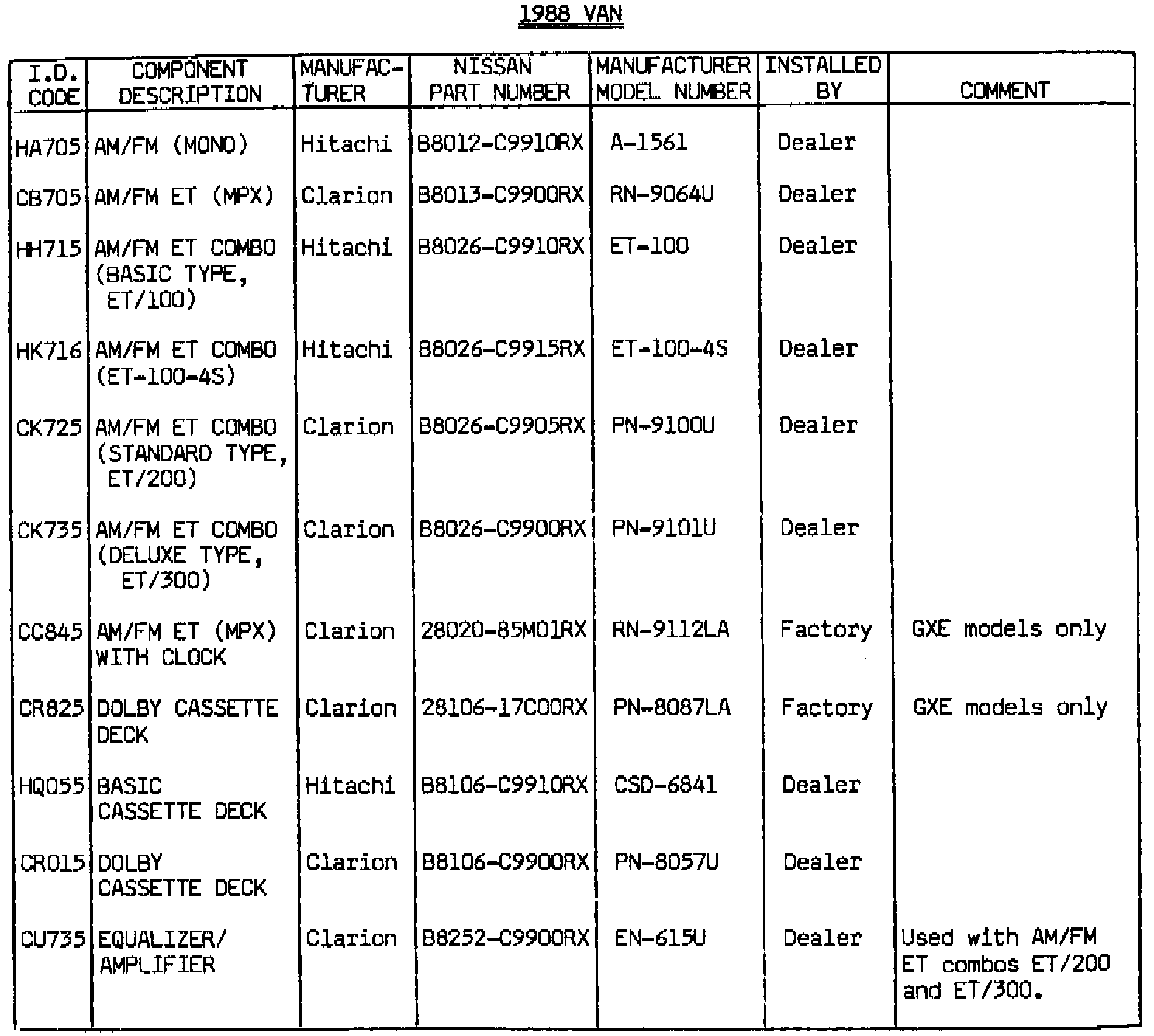

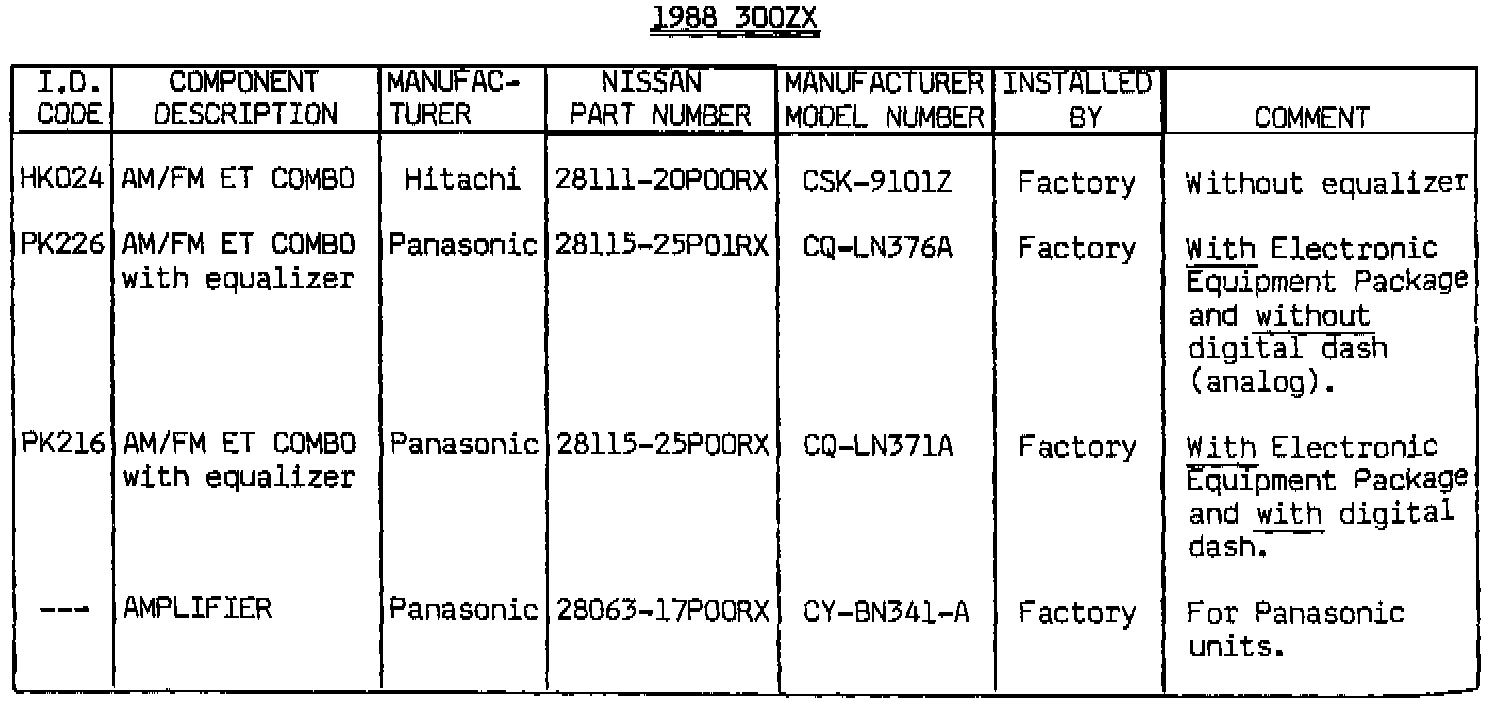

Most audio components are marked with a code number that is visible without removing the unit from the vehicle. Locate the code number on the identification chart to identify the manufacturer and model number of the incident unit.

NOTE:
The first digit of the code number identifies the manufacturer as shown.

C = Clarion
H = Hitachi
P = Panasonic

ALL RADIO CODES SHOULD BE RETURNED TO THE MANUFACTURER IMMEDIATELY AFTER REMOVAL FROM CUSTOMERS VEHICLES.
