Propeller Shaft - U.S. Built Truck

87nissan07

Models 1986.5-1988 U.S.A.

Built Trucks

Section Propeller Shaft
& Differential

Classification PD87-003

Bulletin No. TS87-131

Date August 24, 1987
PROPELLER SHAFTS FOR U.S. BUILT TRUCKS


APPLIED MODEL: 1986.5-1988 Truck (D21) (U.S. Built Only)

SERVICE INFORMATION

The propeller shaft assemblies in U.S. built Trucks (except 2WD Z24 models) are different from those of Japan built Trucks. Truck Service Manuals describe only those propeller shafts used in Japan built vehicles. This bulletin contains service parts information, parts interchangeability information, assembly illustrations and service data and specifications for the propeller shaft assemblies used in U.S. built Trucks.

Please add the following note in the PD Section of the 1986.5, 1987 and, upon receipt, the 1988 D21 series Service Manual:

"When servicing the propeller shaft of U.S. built Trucks, refer to Technical Bulletin PD87-003."

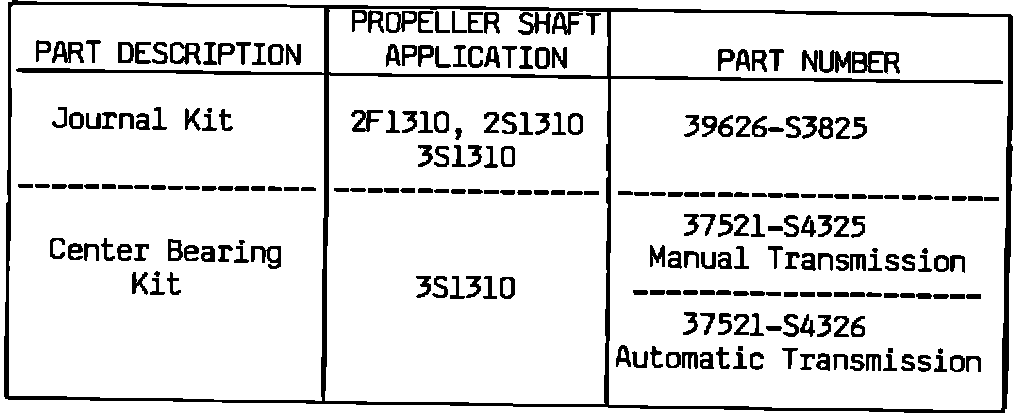

SERVICE PARTS INFORMATION

The following service parts are available for the propeller shafts used in U.S. built Trucks.
PARTS INTERCHANGEABILITY INFORMATION

When the complete propeller shaft assembly of a U.S. built Truck requires replacement, use the assembly listed in the D21 parts catalogue for the equivalent Japan built model.



ASSEMBLY ILLUSTRATIONS

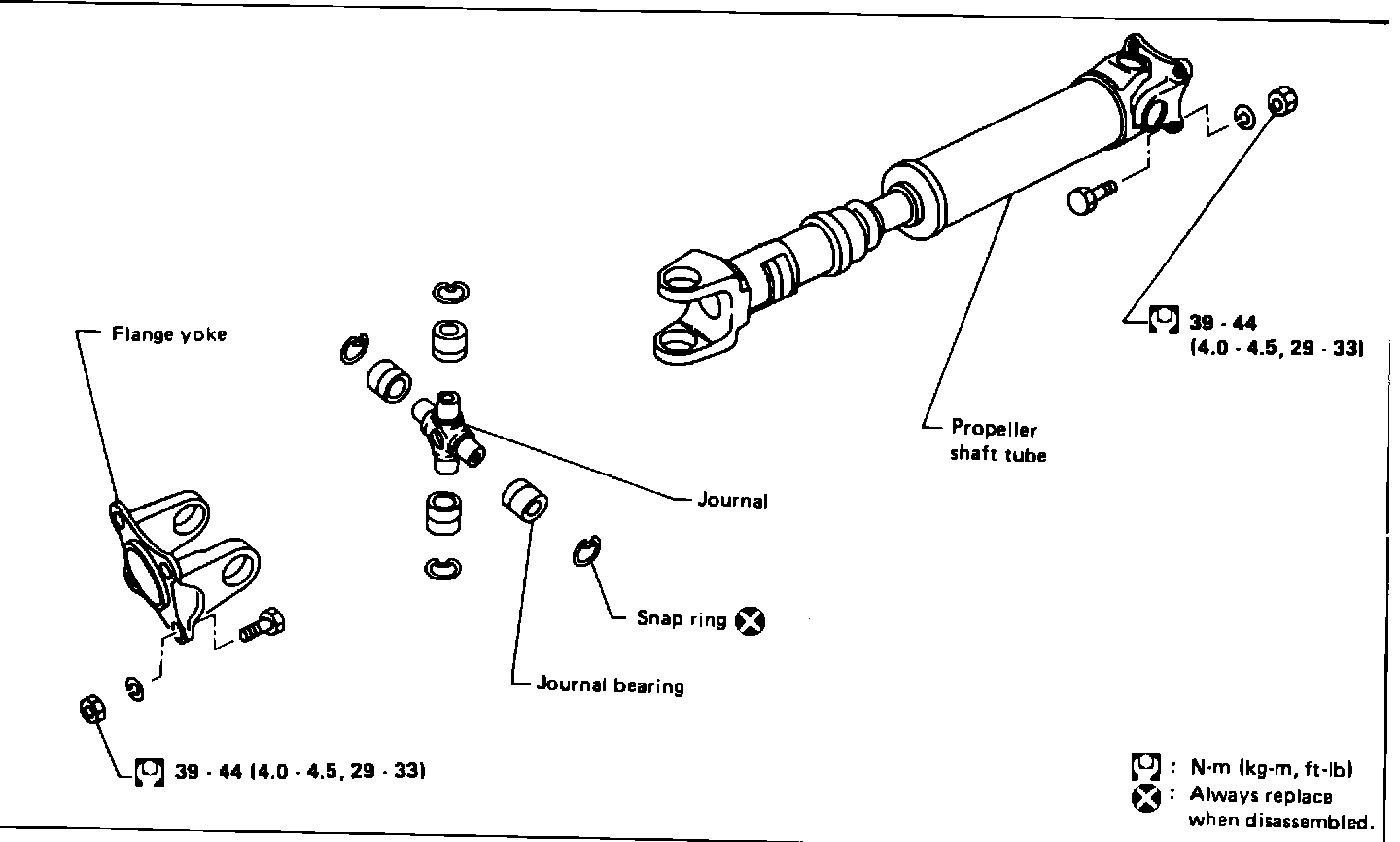

Front propeller shaft (Model 2F1310)

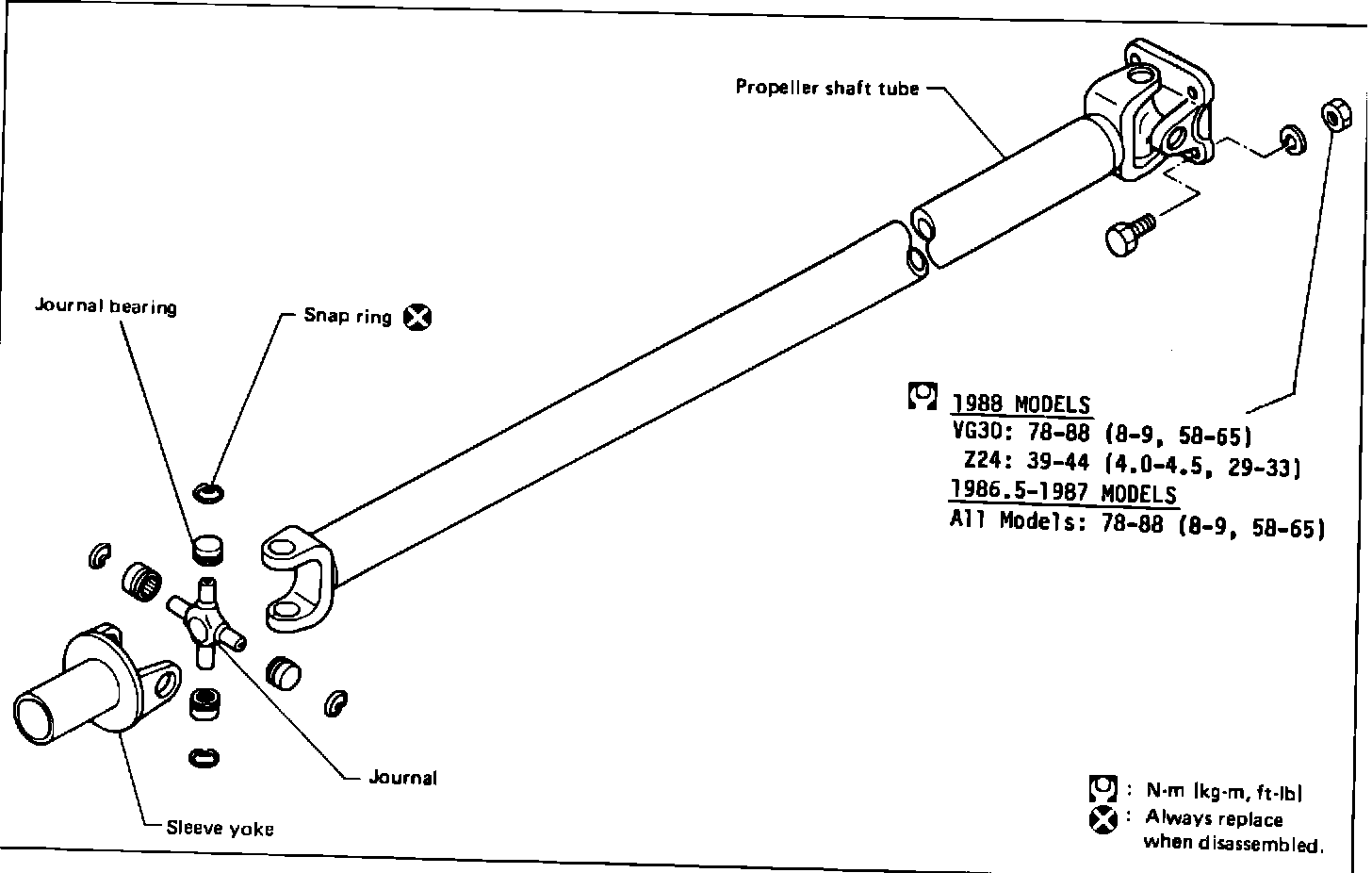

Rear propeller shaft (Model 2S1310)

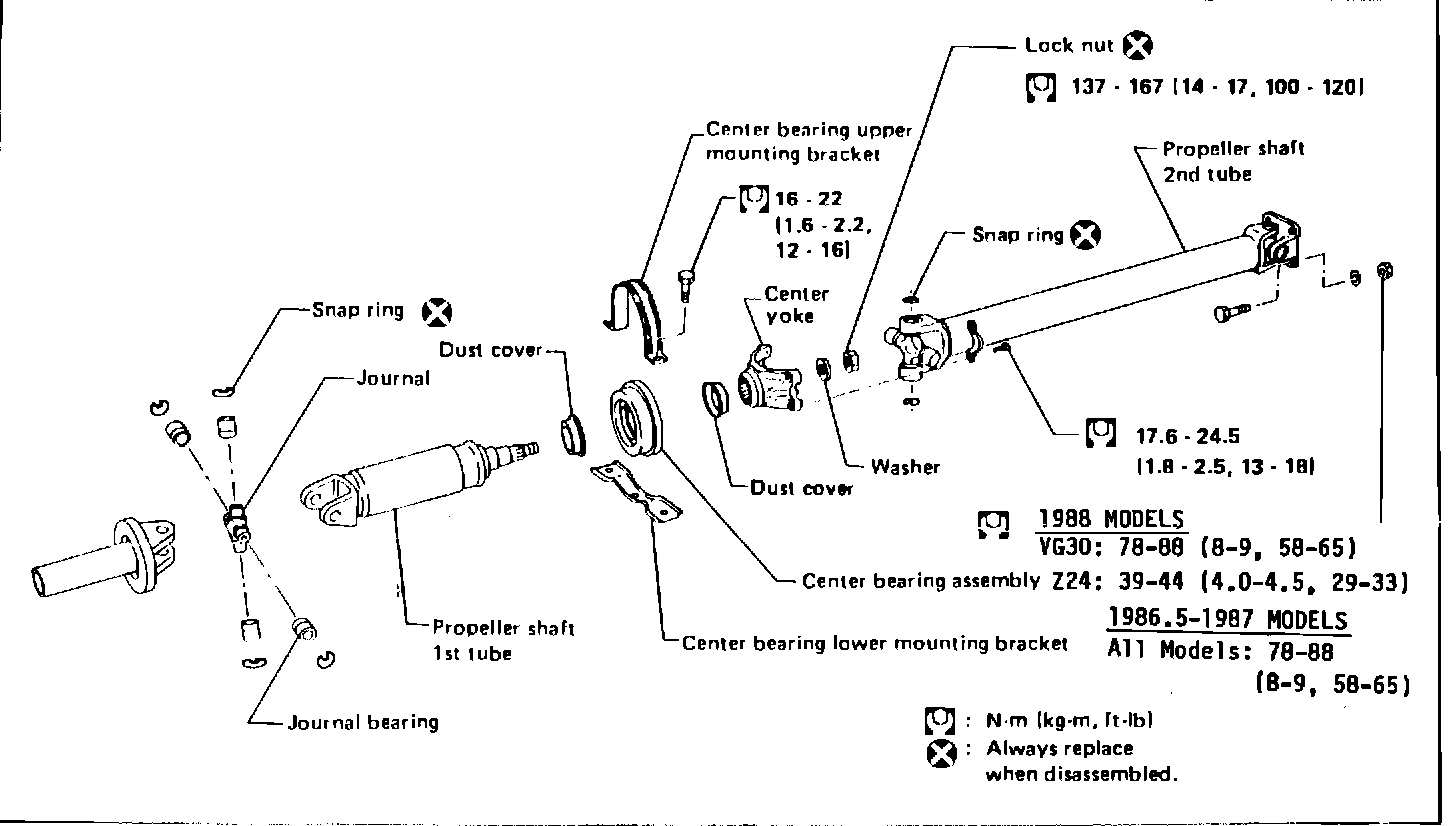

Rear propeller shaft (Model 3S1310)
NOTE: Before separating the center yoke from the front tube, be sure to put match marks on the center yoke and the front tube shaft.

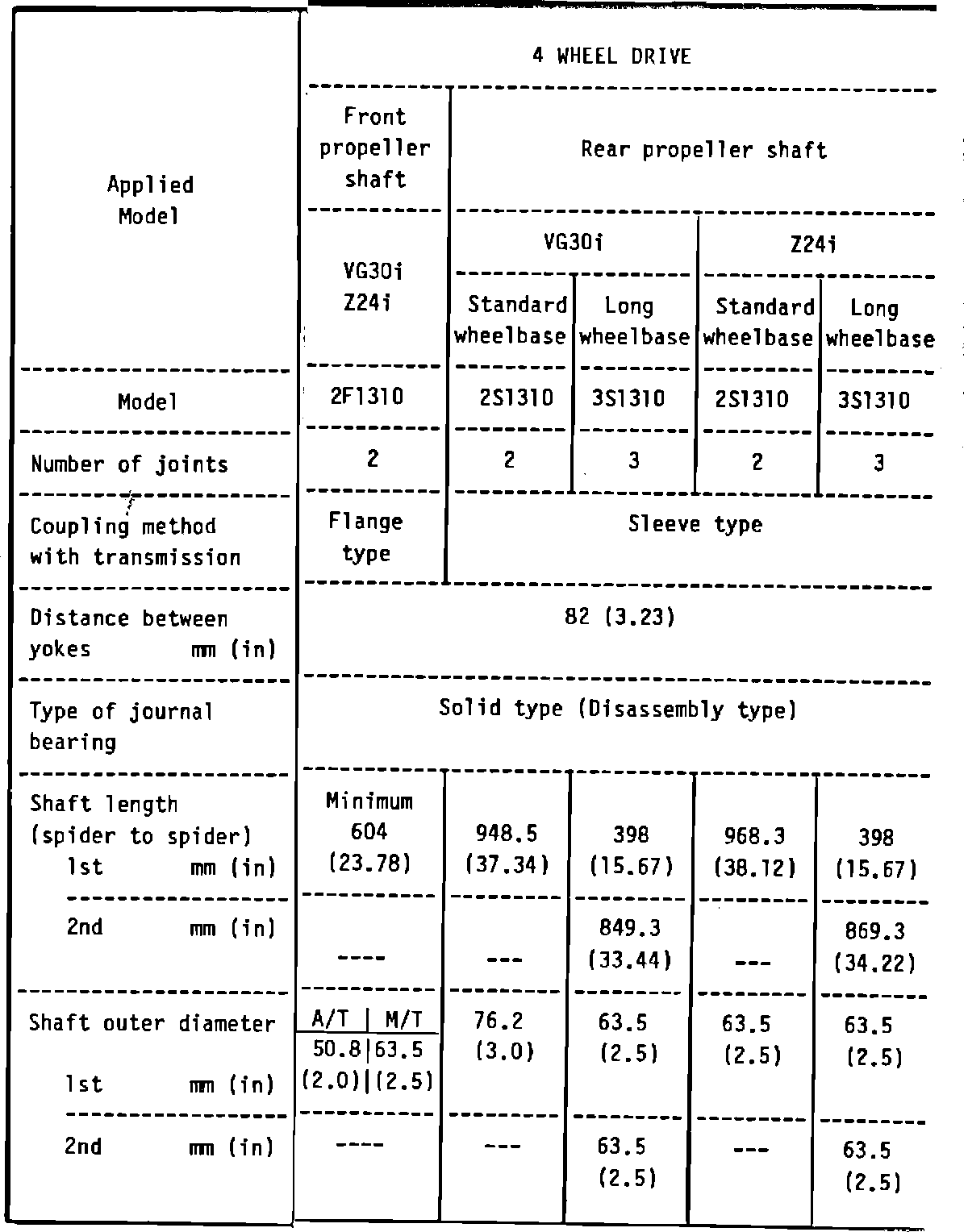

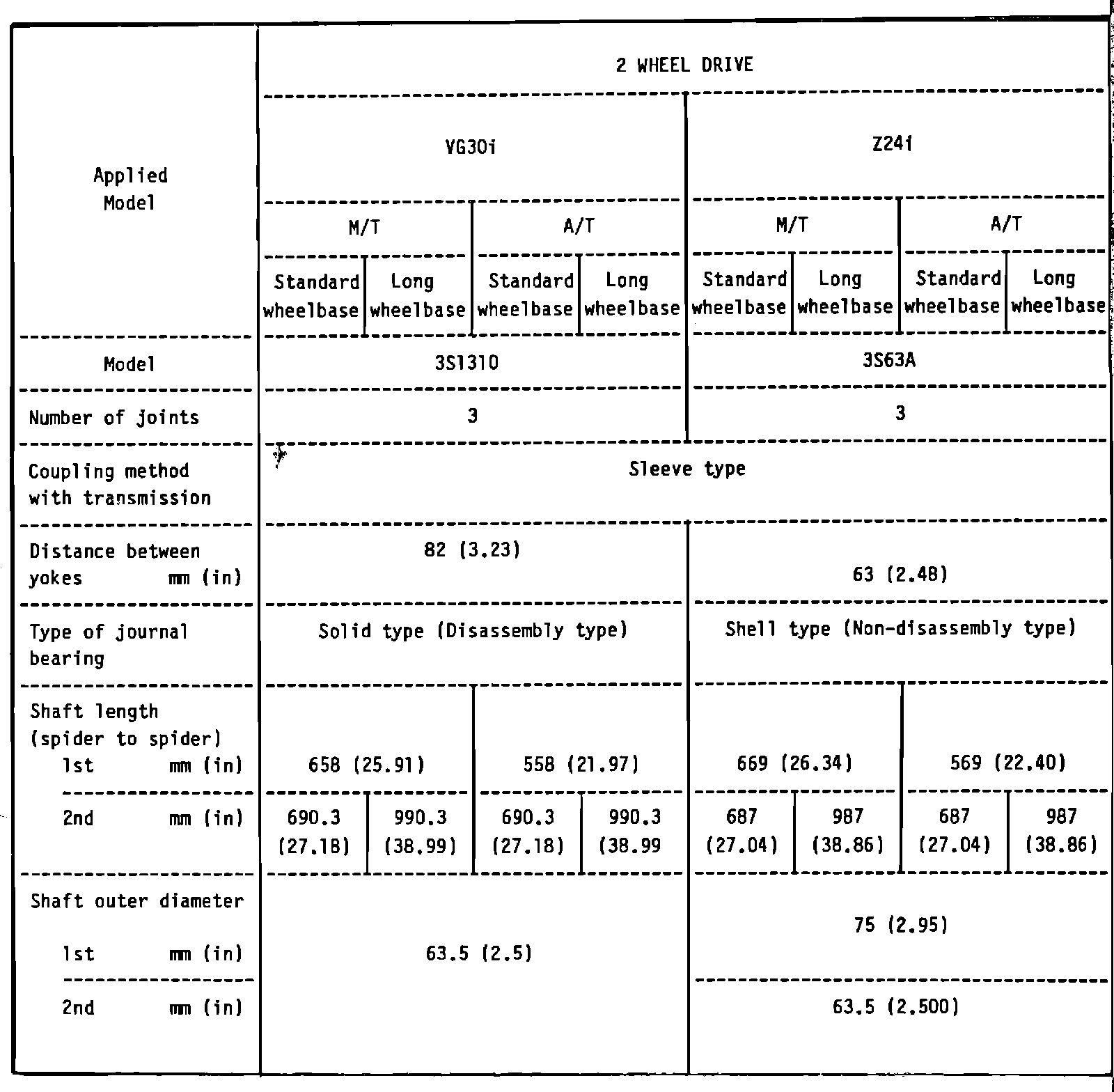

PROPELLER SHAFT GENERAL SPECIFICATIONS FOR ALL U.S. BUILT TRUCKS
TIGHTENING TORQUE (For U.S.A. produced Trucks)


Unit N-m kg-m ft-lb


1986.5/1987 MODELS Propeller shaft to differential carrier
63A, 2F1310 39 - 44 4.0 - 4.5 29 - 33

3S1310, 2S1310 78 - 88 8-9 58 - 65

1988 MODELS Propeller shaft to differential carrier
63A, 3S1310, 39 - 44 4.0 - 4.5 29 - 33
2F1310, 2S1310,

2S1310(VG30),
3S1310(VG30) 78 - 88 8 - 9 58 - 65

1986.5-1988 MODELS Propeller shaft 1st tube to 2nd tube
63A 24 - 32 2.4 - 3.3 17 - 24

Journal strap to center yoke
3S1310 17.6 - 24.5 1.8 - 2.5 13 - 18

Center bearing locking nut
63A 245 - 294 25 - 30 181 - 217

3S1310 137 - 167 14 - 17 100 - 120

Center bearing 16 - 22 1.6 - 2.2 12 - 16
bracket to body
