Propeller Shaft - Repair Manual Correction, US built

9216nissan04

Models: 1986.5-89 US Built
Trucks

Section: Propeller Shaft &
Differential Carrier

Classification: PD89-001

Bulletin No.: TS89-053

Date: May 25, 1989


PROPELLER SHAFTS FOR U.S. BUILT TRUCKS

(This Bulletin was previously issued under number PD87-003 covering 1986.5-1988 U.S. built Trucks.)


APPLIED MODELS: 1986.5-1989 Truck (D21) U.S. Built only

SERVICE INFORMATION

The propeller shaft assemblies in U.S. built Trucks (except 2WD Z24 models) are different from those of Japan built Trucks. Truck Service Manuals describe only those propeller shafts used in Japan built vehicles. This Bulletin contains Parts Information, Parts Interchangeability Information, Assembly Illustrations and Service Data and Specifications for the propeller shaft assemblies used in U.S. built Trucks.

Please add the following note in the PD Section of the 1986.5, 1987, 1988 and 1989 Truck Service Manuals:

"When servicing the propeller shaft on U.S. built Trucks, refer to Technical Bulletin PD89-001."


PARTS INFORMATION

The following service parts are available for the propeller shafts used in U.S. built Trucks.

PROPELLER SHAFT
PART DESCRIPTION APPLICATION PART NUMBER

Journal Kit 2F1310, 2S1310, 39626-S3825
3S1310

Center Bearing Kit 3S1310 37521-S4327

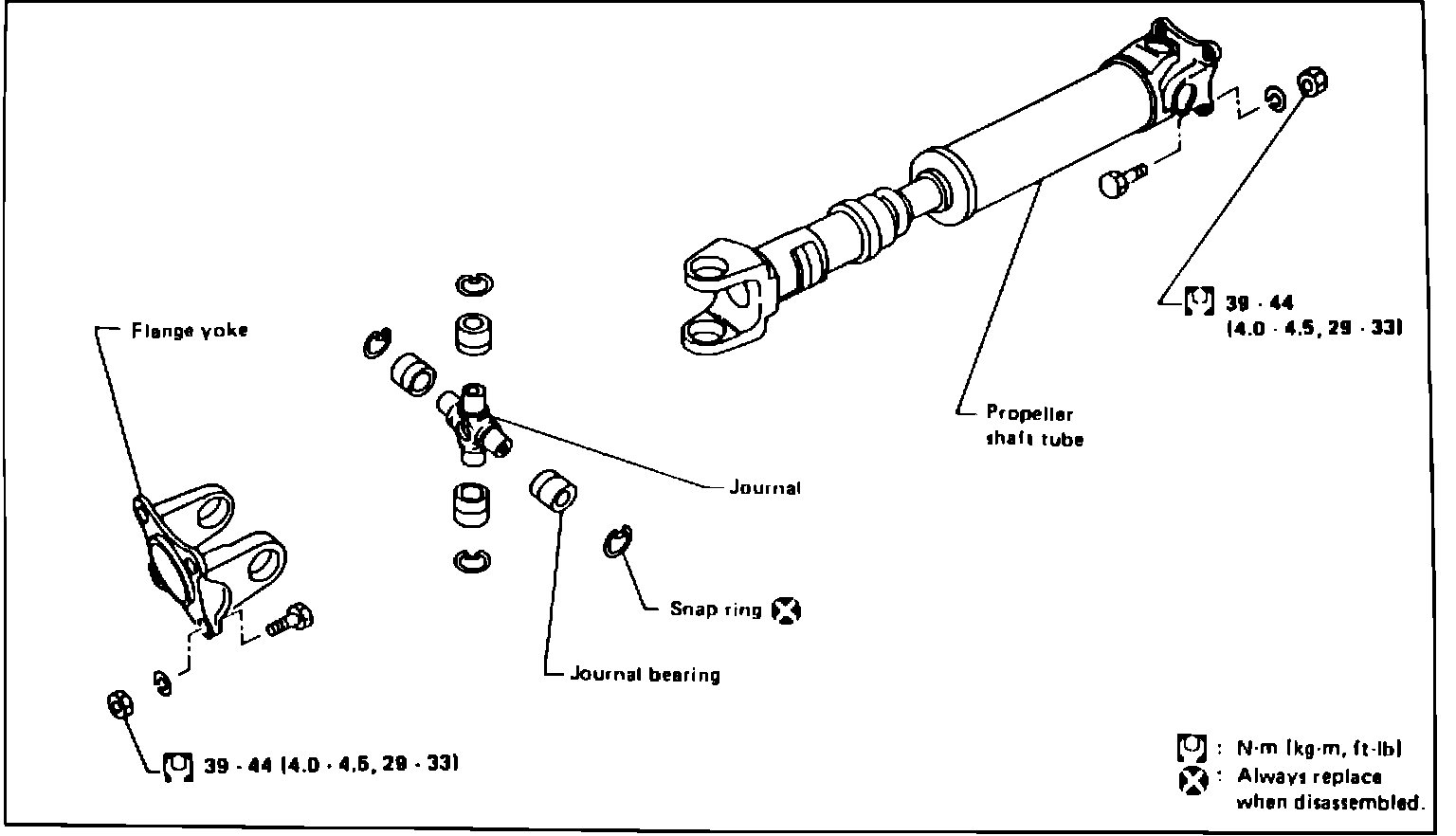

Front propeller shaft (Model 2F1310)

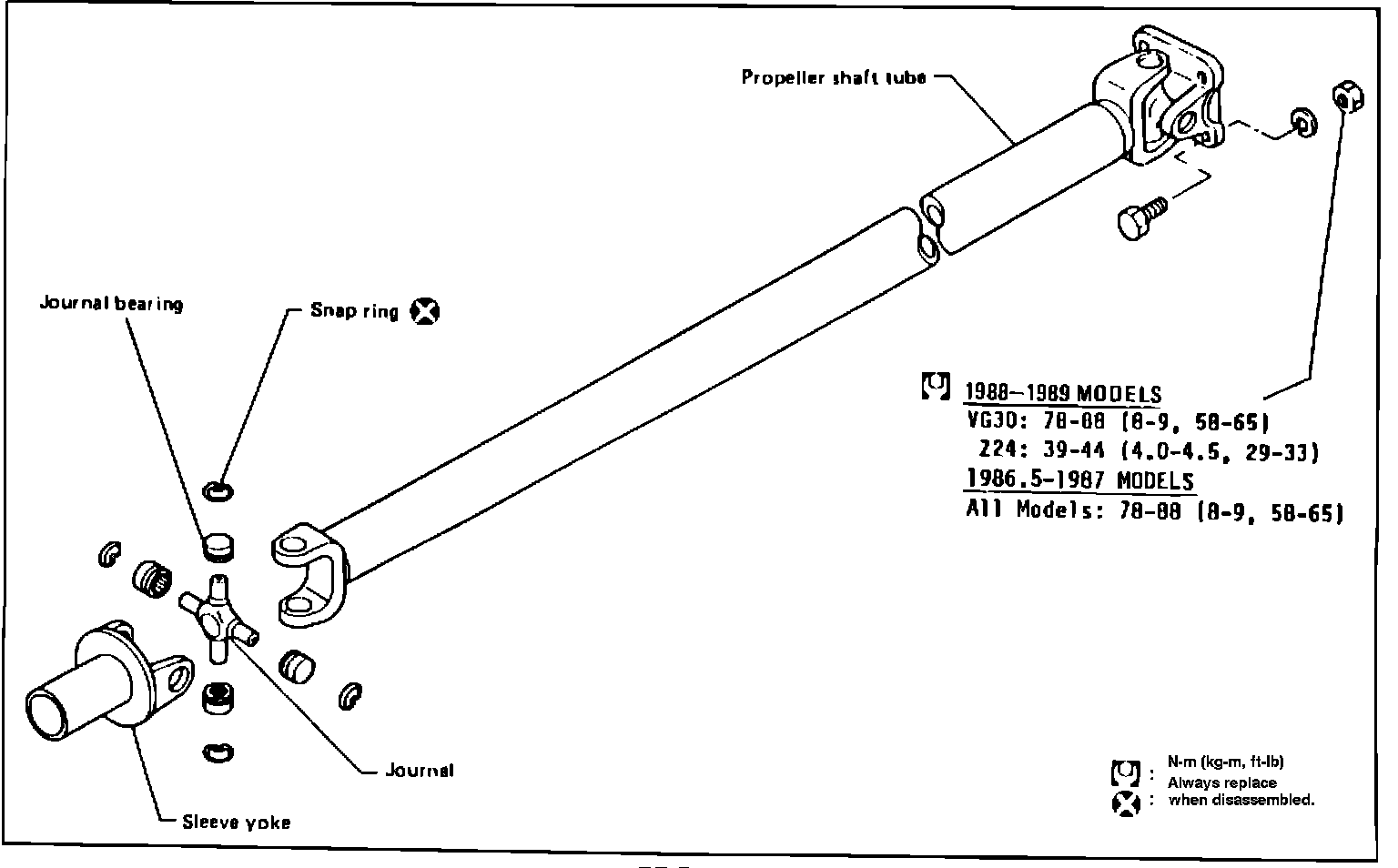

Rear propeller shaft (Model 2S1310)

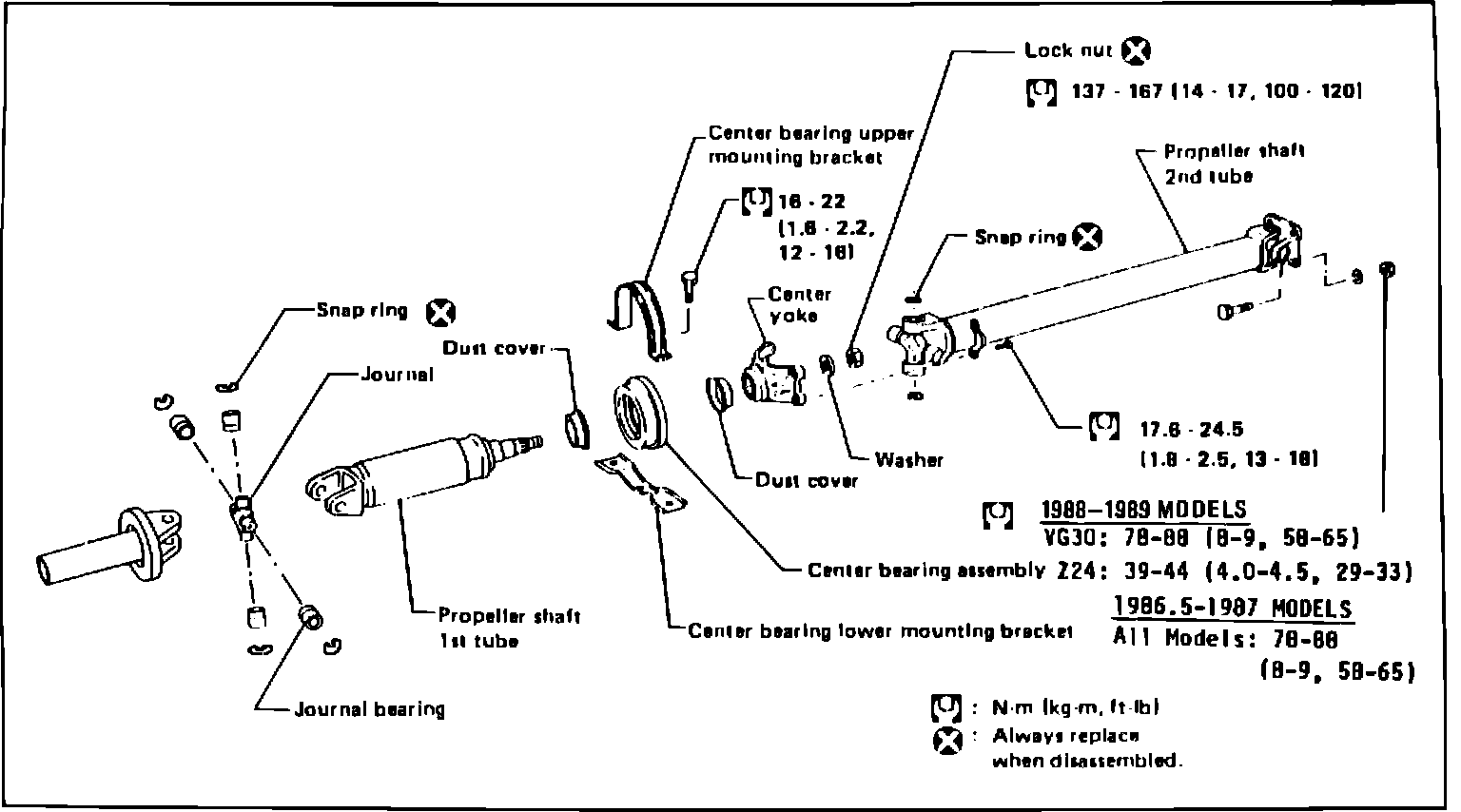

Rear propeller shaft (Model 3S1310)


NOTE: Before separating the center yoke from the front tube, be sure to put match marks on the center yoke and the front tube shaft.

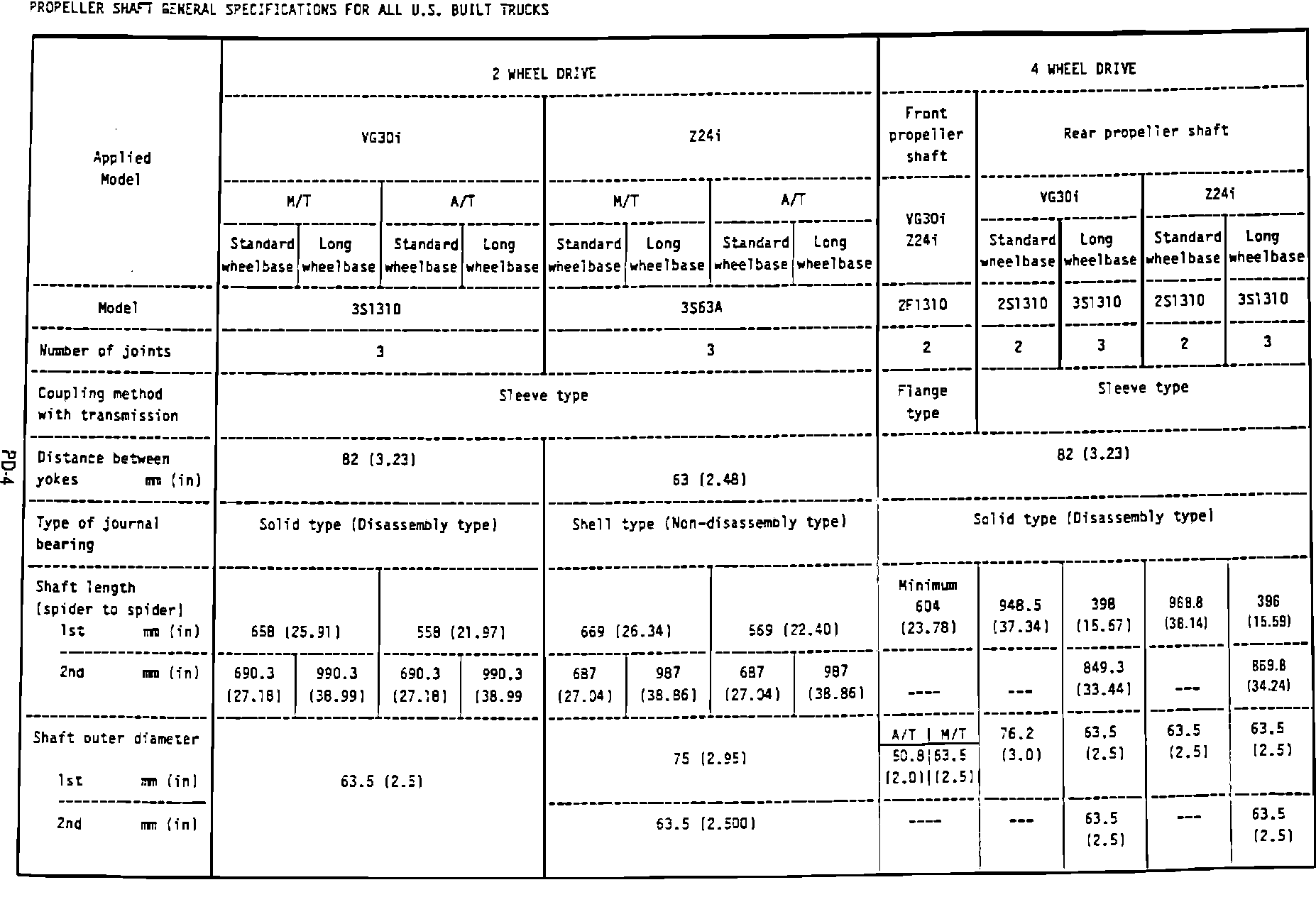

Propeller Specifications

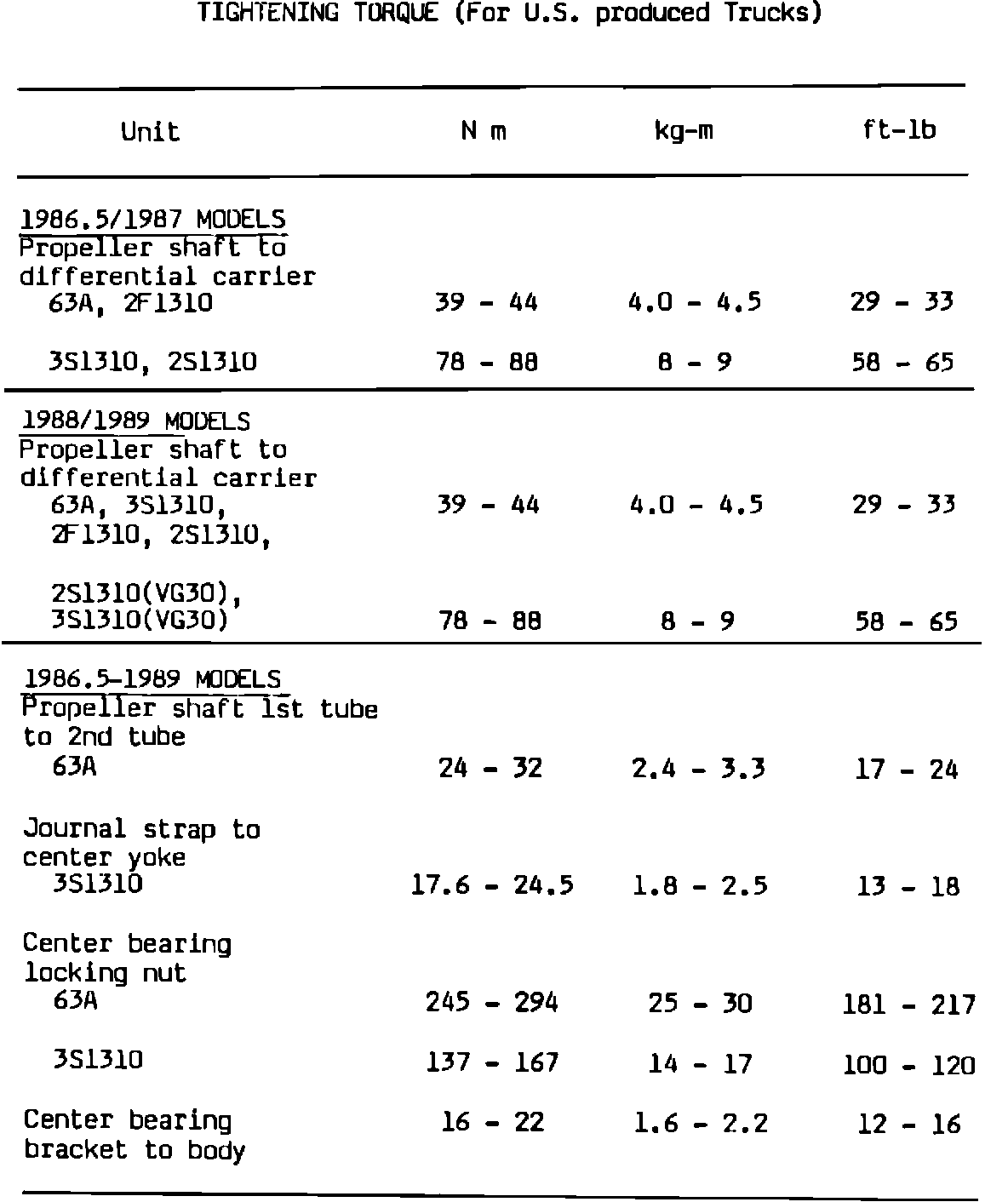

Tightening Torque
