Locks - Revised Torques For Door Lock & Striker Bolts

90nissan04 Section:

Classification:

BF90-003 Body & Frame
Reference:
TECHNICAL BULLETIN NTB90-036
Models:
All models Date:
April 12, 1990

Front door:

Rear door:

DOOR LOCK & STRIKER BOLTS

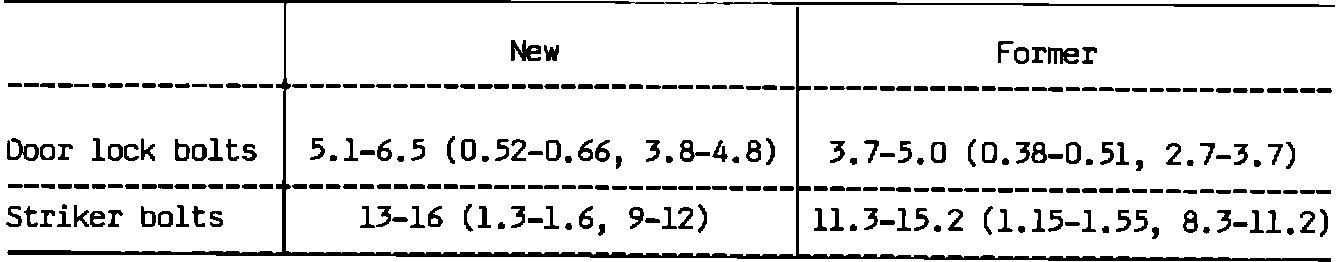

This Bulletin gives revised torque specifications for door lock and door striker bolts (see illustration on next page).
