Rear

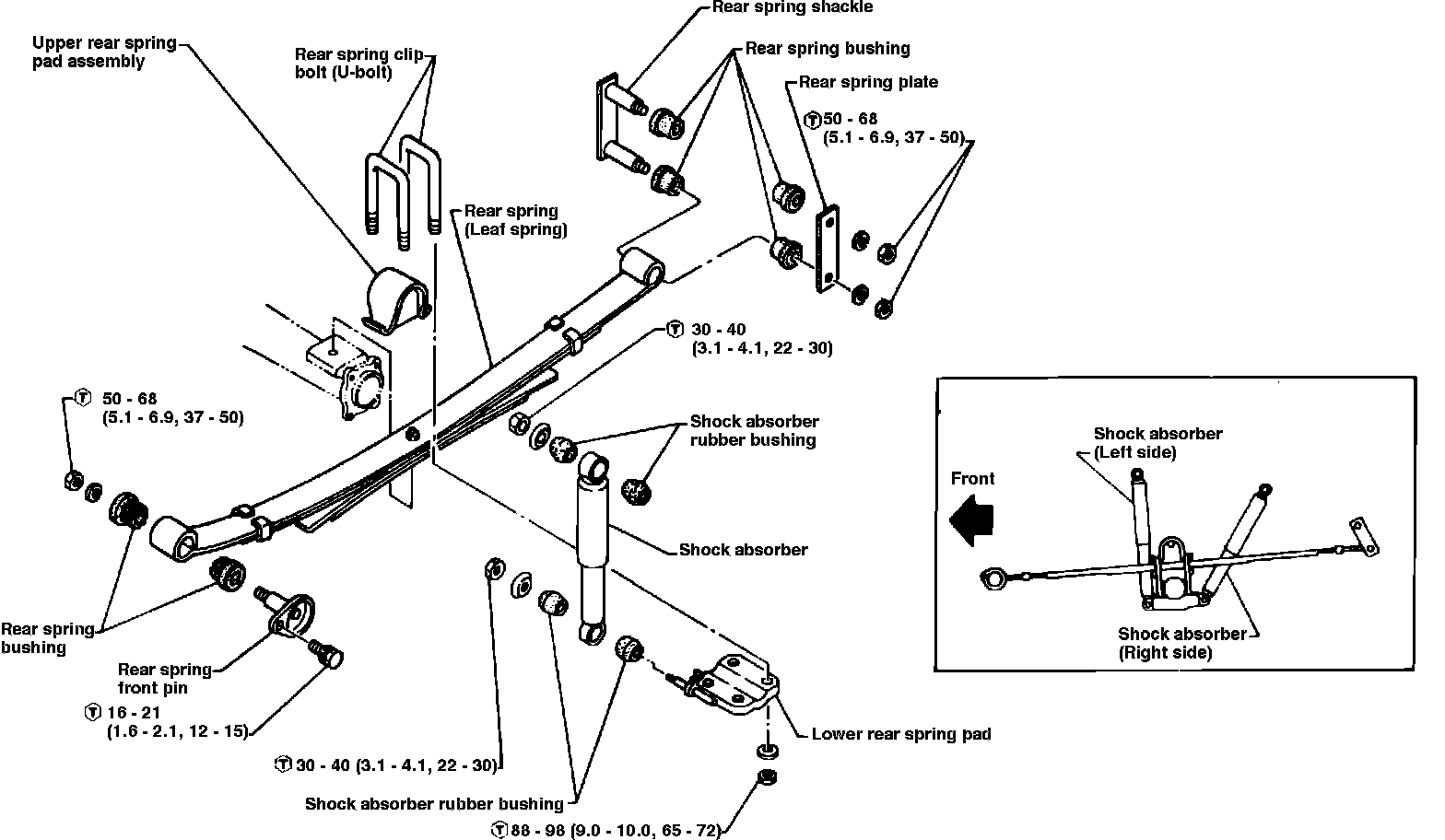

Fig. 18 Leaf spring rear suspension (Typical):

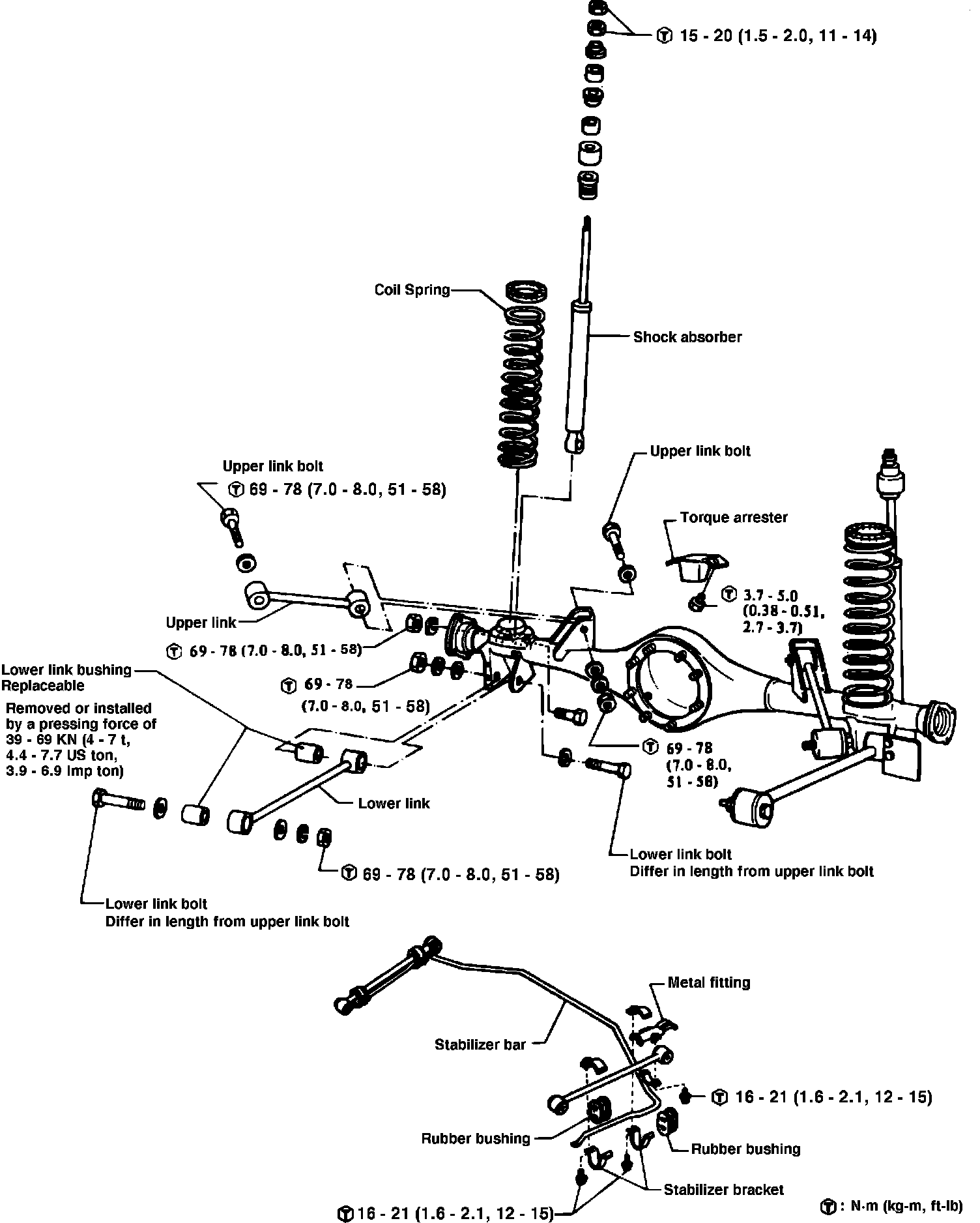

Fig. 19 Link type rear suspension (Typical):

1. Raise and support rear of vehicle at rear axle.
2. Disconnect shock absorber at lower mounting, Figs. 18 and 19.
3. Disconnect shock absorber at upper mounting, Figs. 18 and 19.
4. Remove shock absorber from vehicle.
5. Reverse procedure to install.
