Service Procedure Outline

SERVICE PROCEDURE OUTLINE

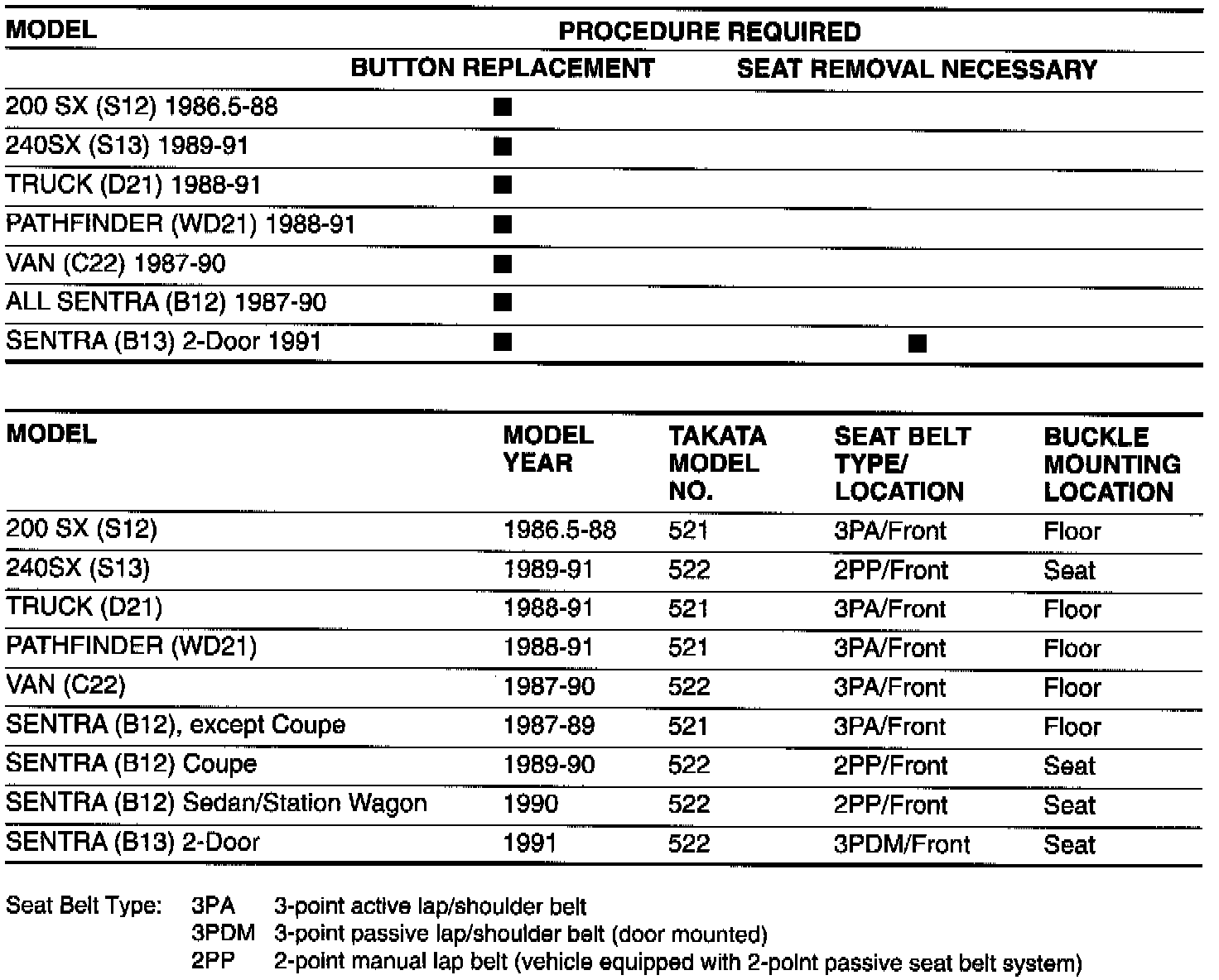

Illustrated is the button replacement guide for all vehicles.





IMPORTANT

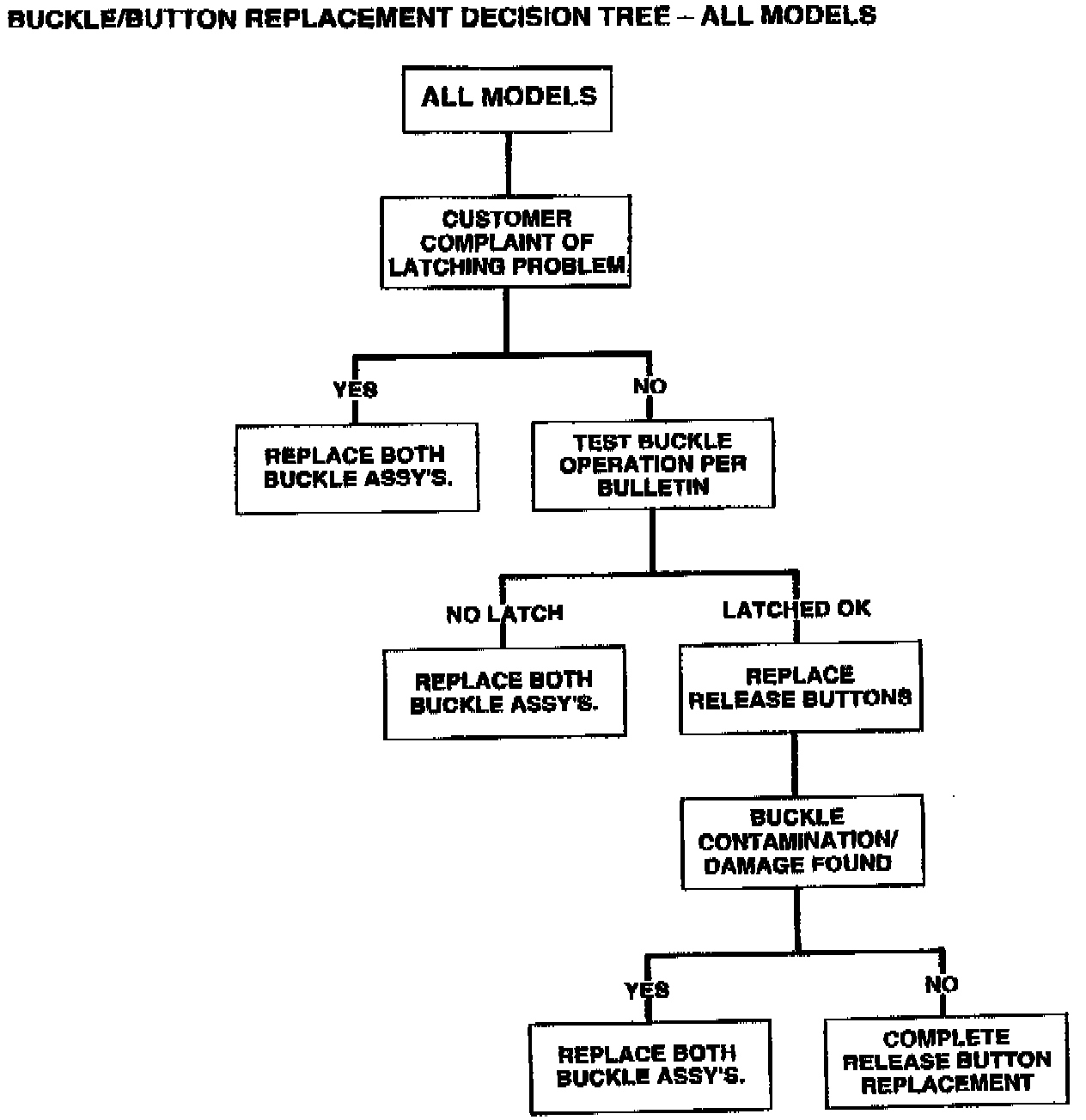

Both the driver's and passenger buckles must be repaired or replaced as a pair to ensure color match as determined by using the decision tree as illustrated in this bulletin.

Note
This campaign does not include the rear seat belts of any vehicles, or the center belt in the Truck equipped with a bench seat. Passive front shoulder belts are also not affected. The release buttons in these buckles are made of a different material.





IMPORTANT
Please review the videotape that was previously sent to you. It will give a demonstration of the repair procedure.

INSPECTION OF THE RETRACTOR MECHANISM

The retractor should be checked for proper operation and the webbing should be inspected for fraying or chafing. If the webbing retractor does not function properly or the webbing is damaged as described above, the entire retractor and webbing assembly should be replaced under the lifetime limited seat belt warranty. The passive belt on 2 point passive models should also be inspected.
