Power Transistor

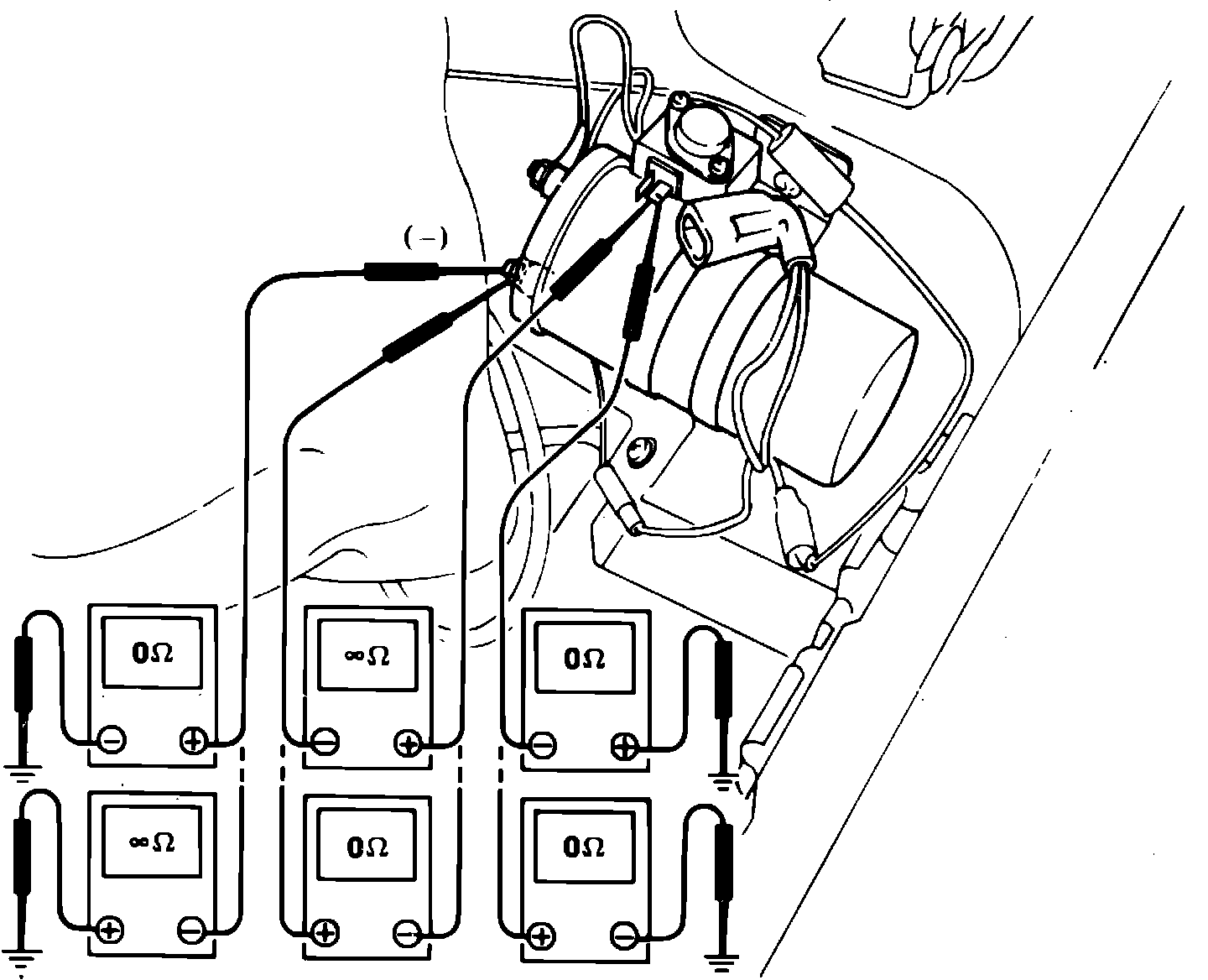

Fig. 48 Power transistor test:

1. Check resistance values between control unit side of power transistor, body ground and ignition coil negative terminal, Fig. 48.
2. If resistance values are not as specified, replace power transistor.
