Vacuum Delay Valve: Description and Operation

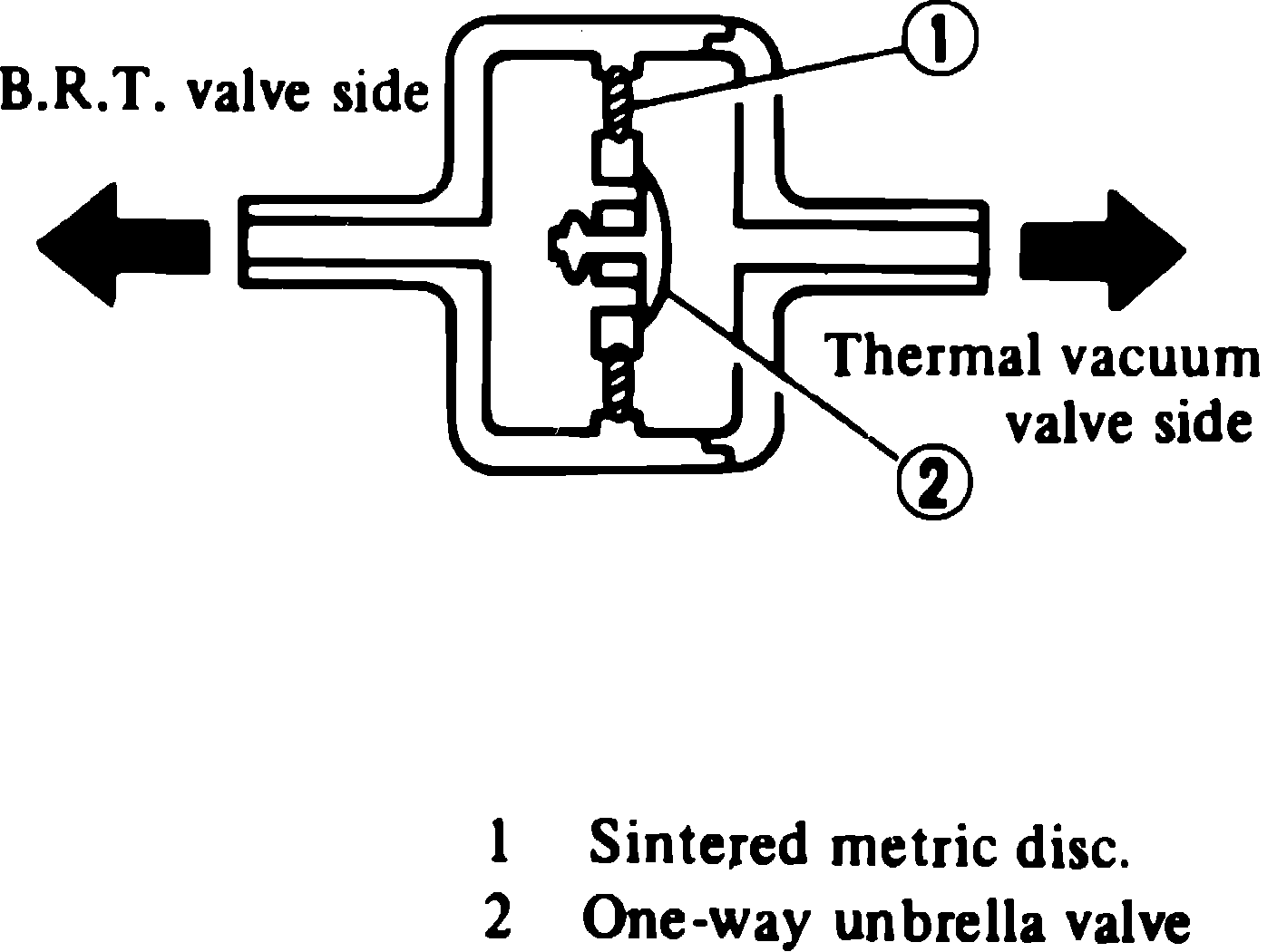

Fig. 16 Vacuum delay valve (typical):

This valve, Fig. 16, prevents a rapid vacuum drop of the EGR control line. The valve is designed for one-way operation and consists of a one-way umbrella valve and a sintered steel fluidic restricter.
